Two-CPU Configuration
Servers with two CPUs have CPUs and heatsinks in sockets 0 and 1 and CPU cover plates
installed in sockets 2 and 3. This configuration requires four memory riser cards and an
air baffle to control airflow for maximum cooling. The following illustration shows the

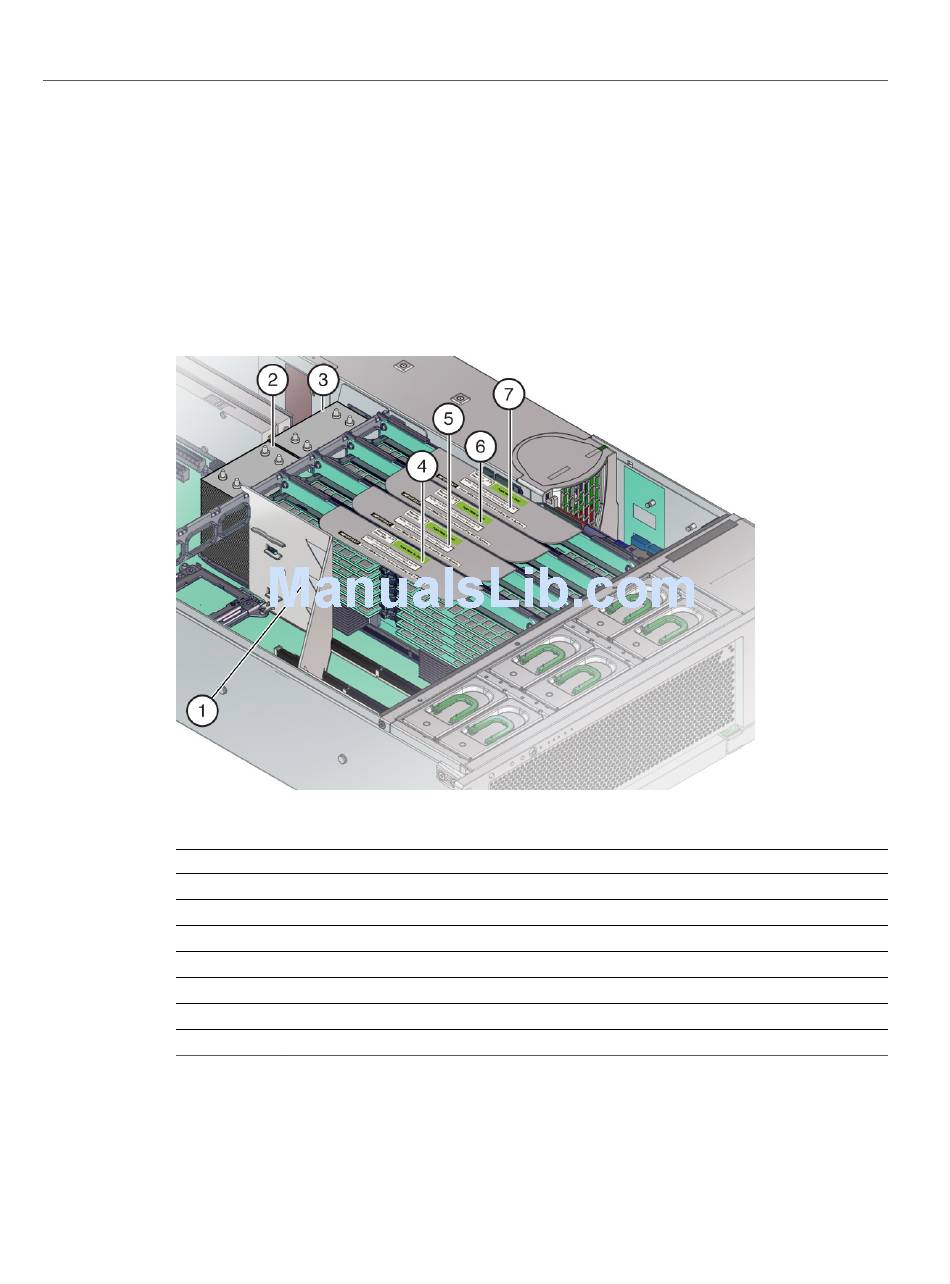

components in a two-CPU server configuration.
Callout
Description
1
Air baffle
2
CPU P1
3
CPU P0
4
Memory riser card P1/MR1
5
Memory riser card P1/MR0
6
Memory riser card P0/MR1
7
Memory riser card P0/MR0
For more information, see
"Two-CPU Block Diagram" on page
Server Subsystems Overview
21.
Oracle Server X5-4 Overview
23
