Use this procedure to remove a DIMM from its slot on the memory riser (MR) card.
For serviceability considerations, see
Before You Begin ■
For DIMM designation information, see
■
For reference information, see
■
1. If necessary, identify the faulty DIMM.
See "Identify a Faulty DIMM" on page
2. To remove the DIMM do the following:

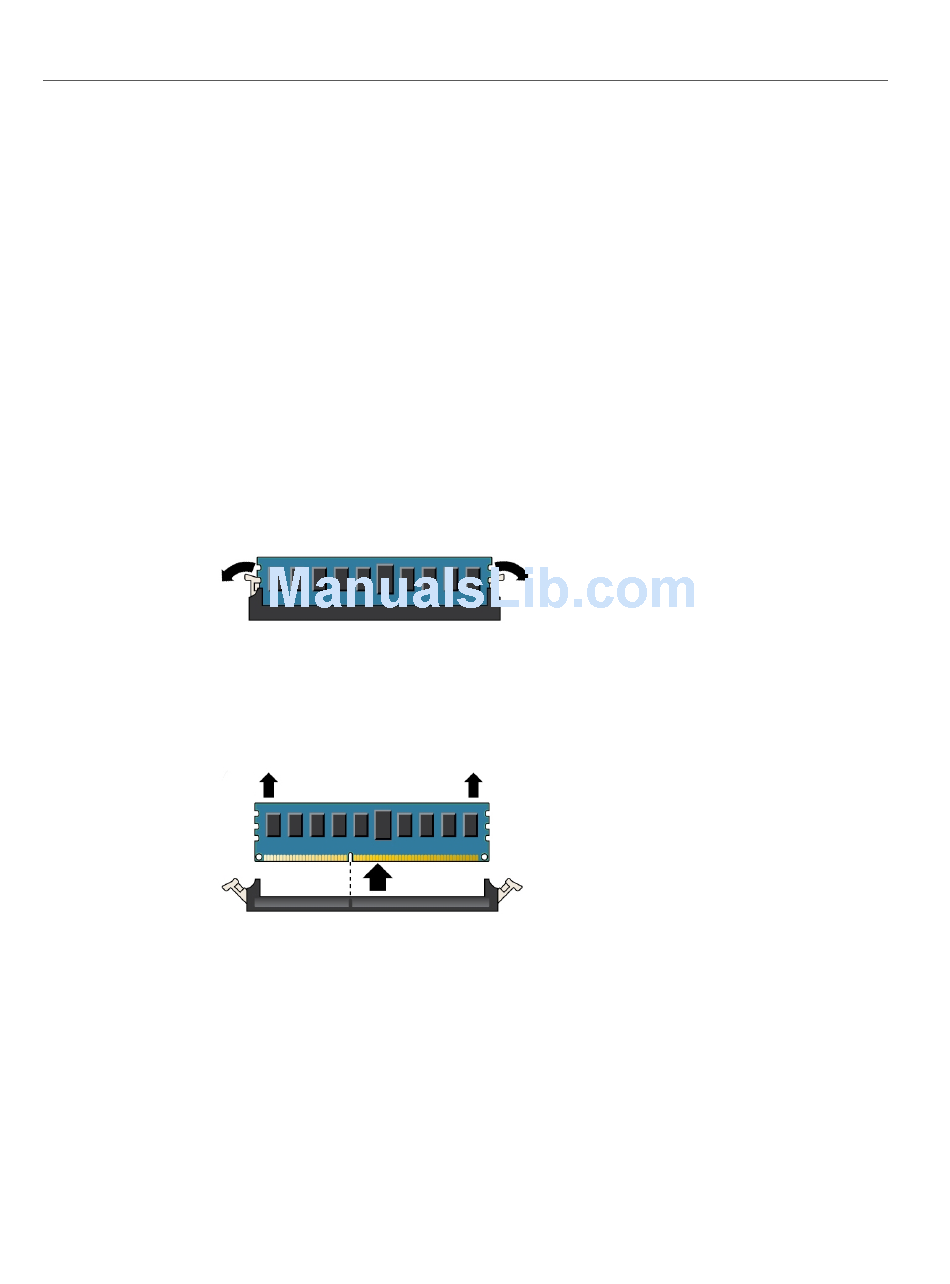

Rotate both DIMM slot ejector levers outward as far as they will go.
a.
The action unlocks the DIMM and expels it from the socket.
Carefully lift the DIMM straight up to remove it from the socket.
b.
Repeat the above steps until all faulty DIMMs are removed.
3.
"Install a DIMM" on page 150
Next Steps
"Component Serviceability" on page
"Component Designations" on page
"Memory Riser Card and DIMM Reference" on page 154
146.
Remove a DIMM
70.
73.
Servicing CRU Components 149
