Oracle X5-4 Service Manual page 27

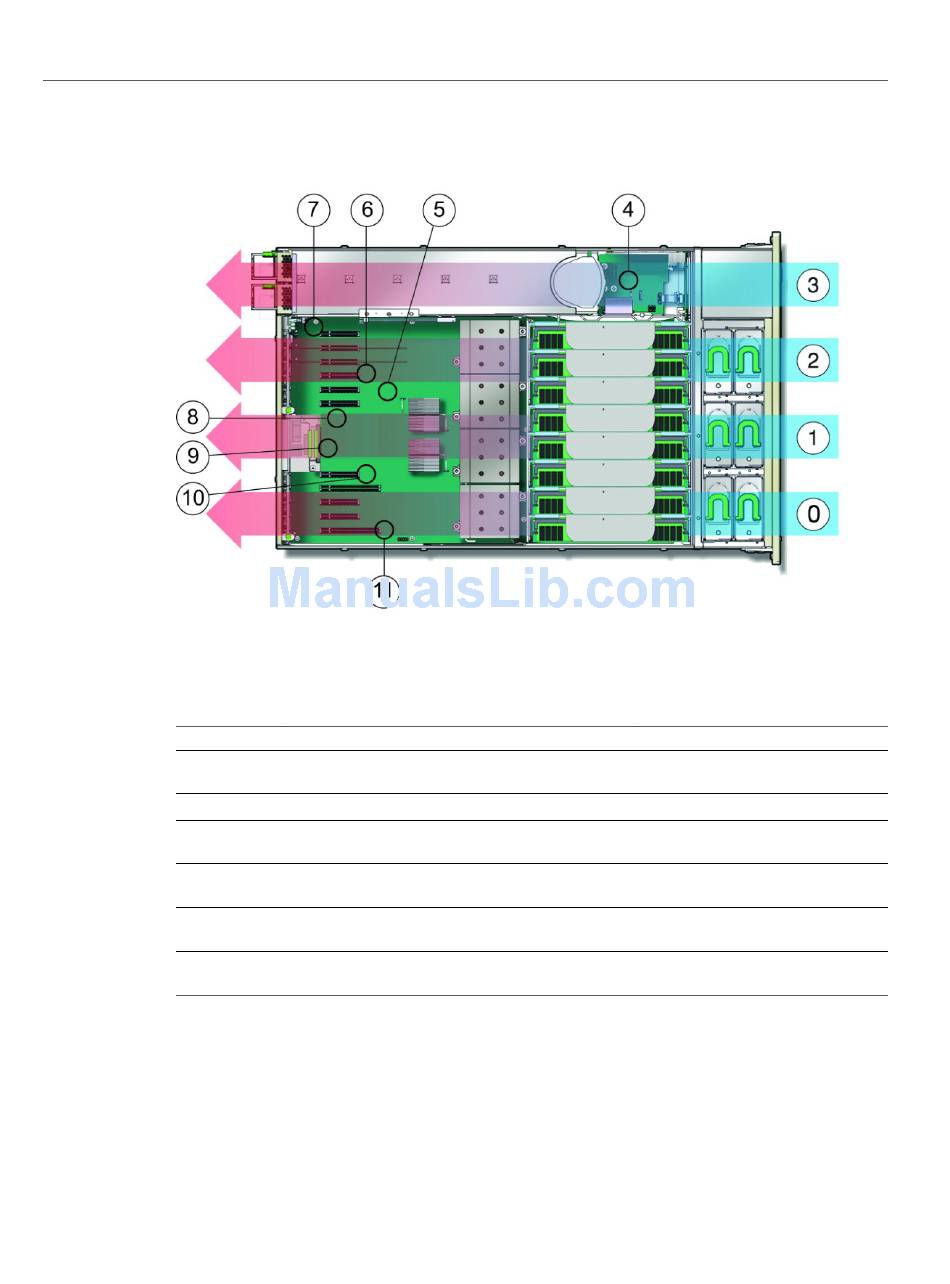

Callout Description
0 Cooling zone 0
1 Cooling zone 1
2 Cooling zone 2
3 Cooling zone 3 (power supply
backplane area)
4 Temperature sensor TS_PS (U4603)
5 Temperature sensor TS_ZONE1
(U4507)
Server Subsystems Overview
Callout Description
6 Temperature sensor TS_ZONE2
(U4505)
7 Temperature sensor TS_OUT (U4506)
8 Temperature sensor TS_TVL_1
(U4002)
9 Temperature sensor TS_TVL_0
(U4302)
10 Temperature sensor TS_ZONE0_B
(U4509)
11 Temperature sensor TS_ZONE0_A
(U4508)
Oracle Server X5-4 Overview 27
