Install a Fan Module
The fan modules are keyed to ensure that they are installed in the correct orientation.

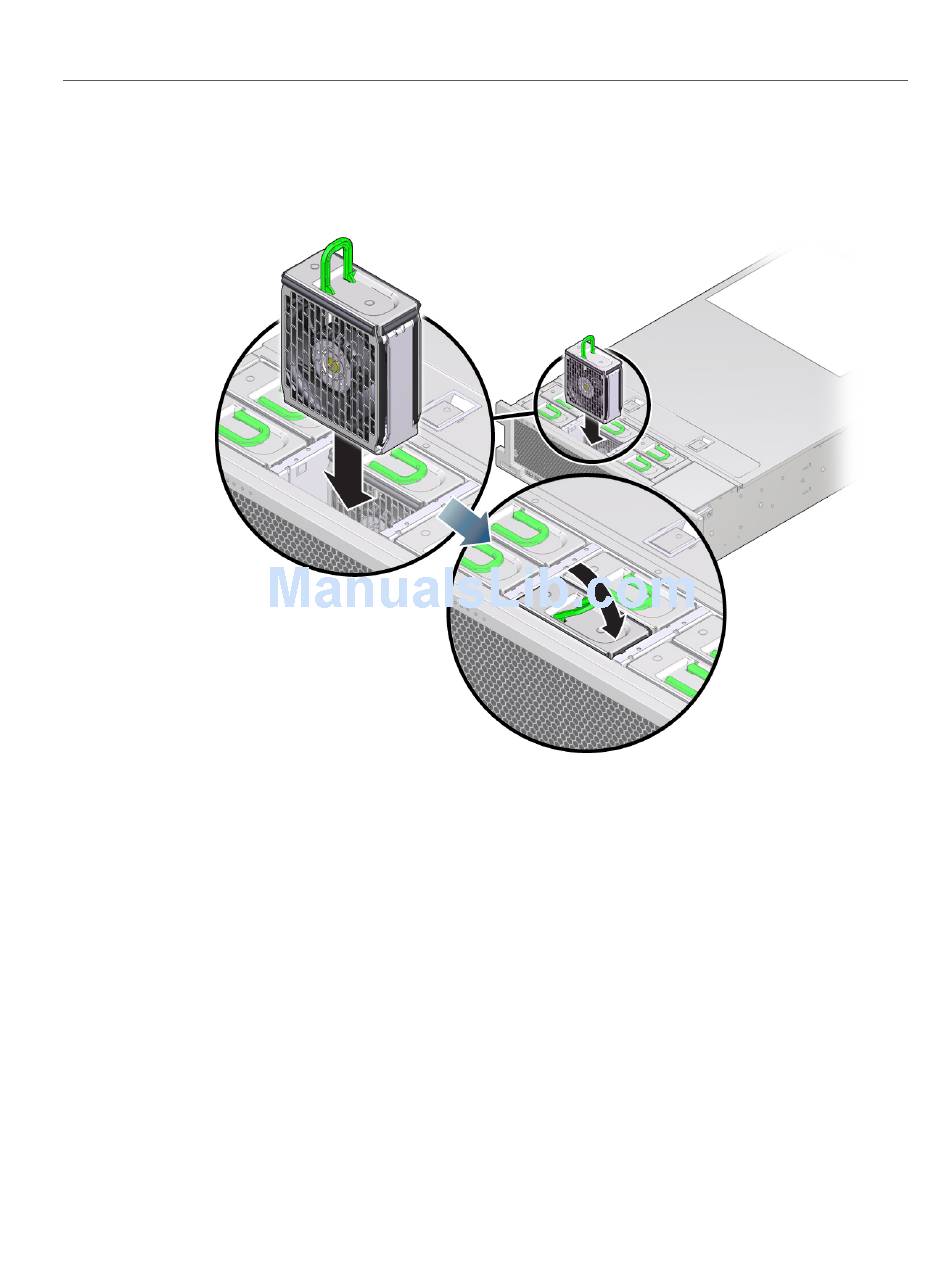

3. Slide the fan module into the slot until is stops.
4. Press downward on the top of the fan module at the Press Here to Latch label
until the fan module is fully seated.
5. Verify that the green OK indicator is lit.
6. Verify that the Top Fan indicator and the Service Action Required indicator on
the server front panel are not lit.
See "Server Front Panel Features" on page 17
locations of system indicators.
7. If necessary, return the server to the normal rack position.
134 Oracle Server X5-4 Service Manual • December 2015
and "Server Back Panel Features" on page 18 for
