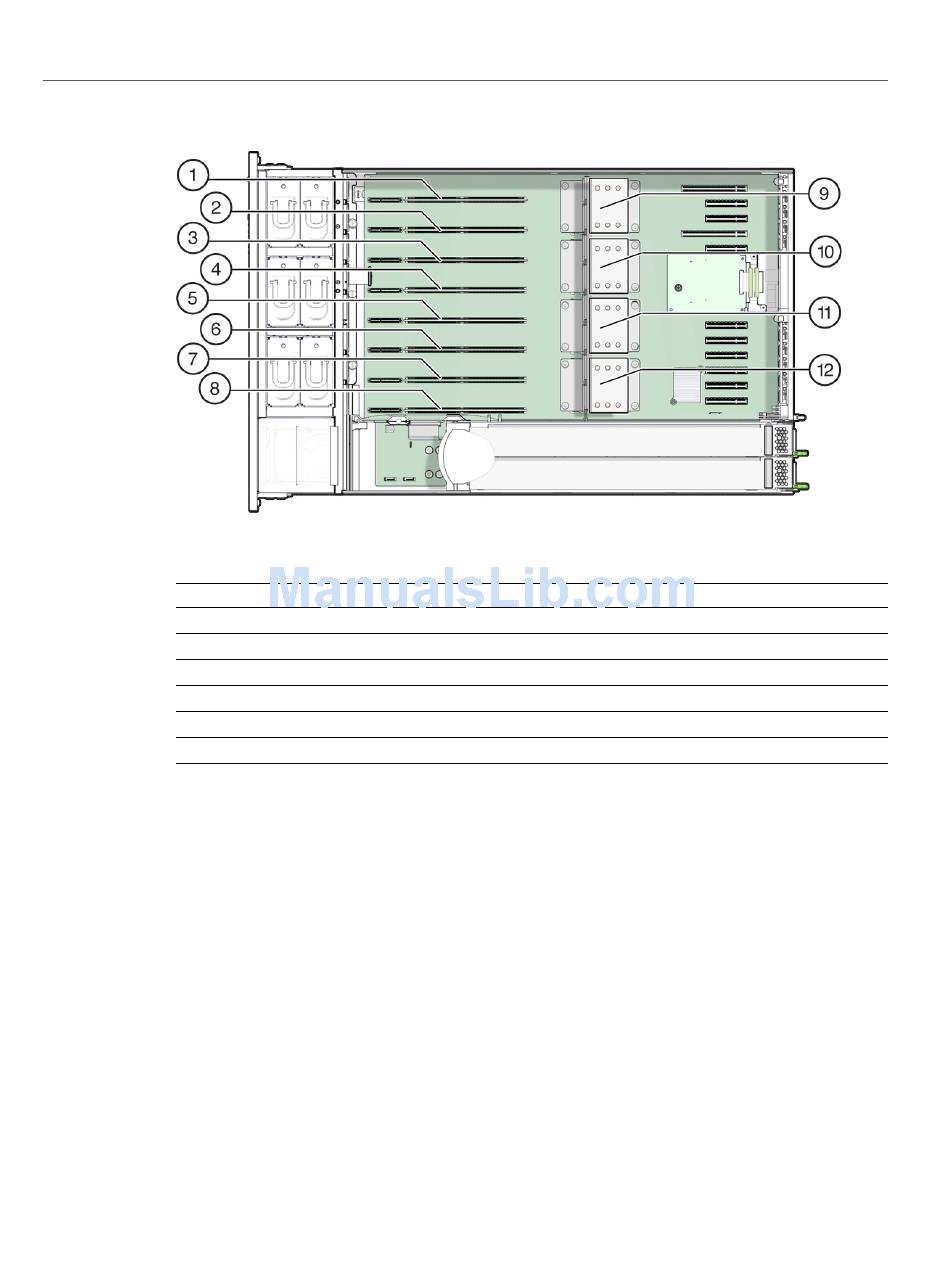

Callout Description
1 MR card slot P3/MR1
2 MR card slot P3/MR0
3 MR card slot P2/MR1
4 MR card slot P2/MR0
5 MR card slot P1/MR1
6 MR card slot P1/MR0
DIMM Slot Designations
The DIMM slots are located on the memory riser cards. The DIMMs are arranged in two banks
of six slots for a total of 12 slots. The slots are designated numerically from top to bottom. The
left bank of slots are designated as D0–D6. The right bank of slots are designated as D7–D11.
Component Serviceability, Locations, and Designations
Callout Description
7 MR card slot P0/MR1
8 MR card slot P0/MR0
9 CPU-3 (P3)
10 CPU-2 (P2)
11 CPU-1 (P1)
12 CPU-0 (P0)
Servicing the Server 75
