Install a Power Supply

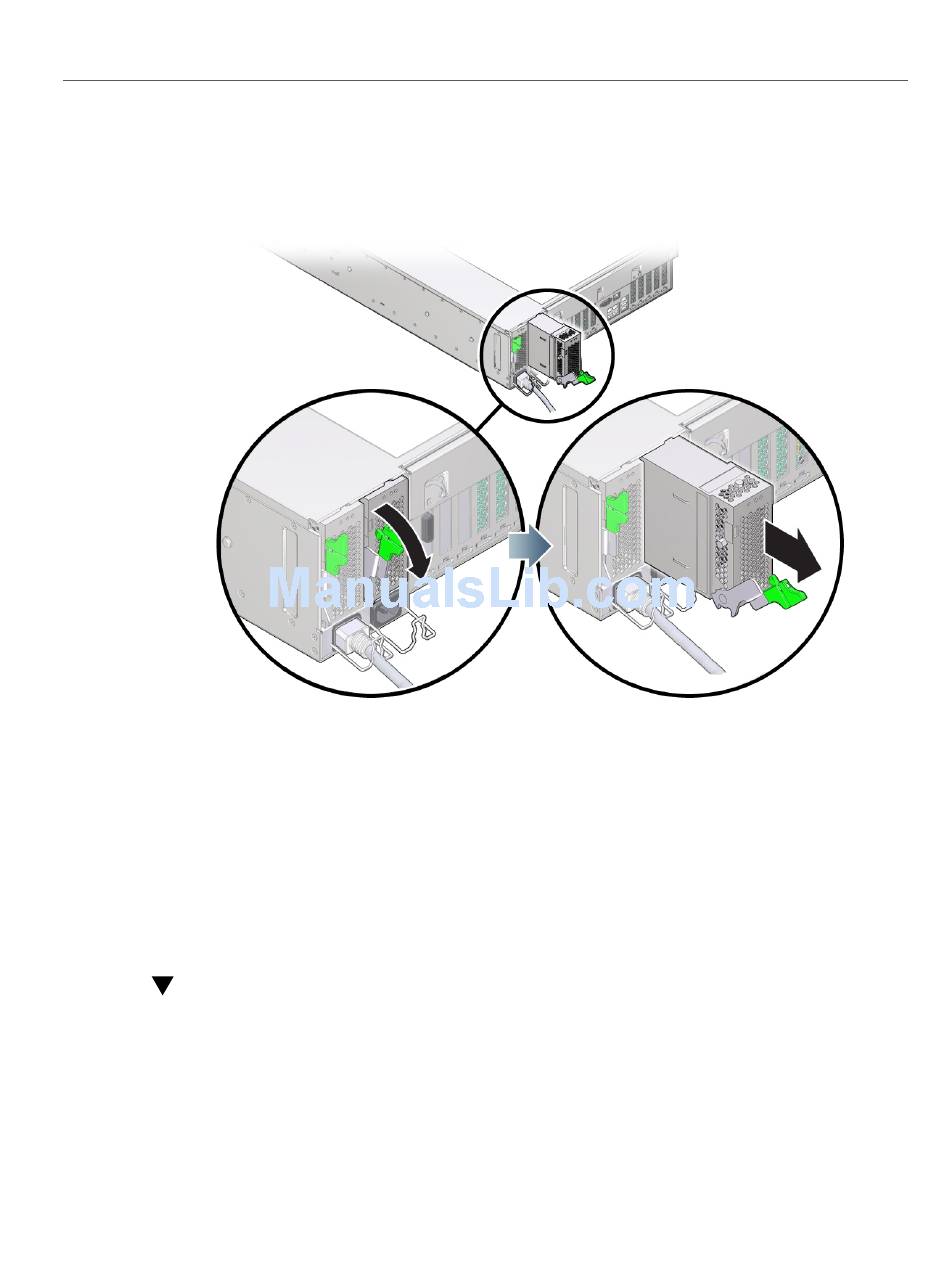

5. To unlock the power supply handle, squeeze the release latch.
6. To disengage the power supply, rotate the release latch fully downward.
This action disengages the power supply from the internal power supply backplane connector.
7. To remove the power supply, use the latch to slide it partially out of the chassis
until you can support it with your free hand and remove it completely.
"Install a Power Supply" on page 138
Next Steps
Install a Power Supply
This procedure describes how to install a power supply (PSU). When installing a PSU, ensure
that the pawl near the hinge of the latch engages the slot in the sidewall of the PSU bay. The
pawl supplies the necessary leverage to seat the PSU connector with the PSU backplane.
138 Oracle Server X5-4 Service Manual • December 2015
