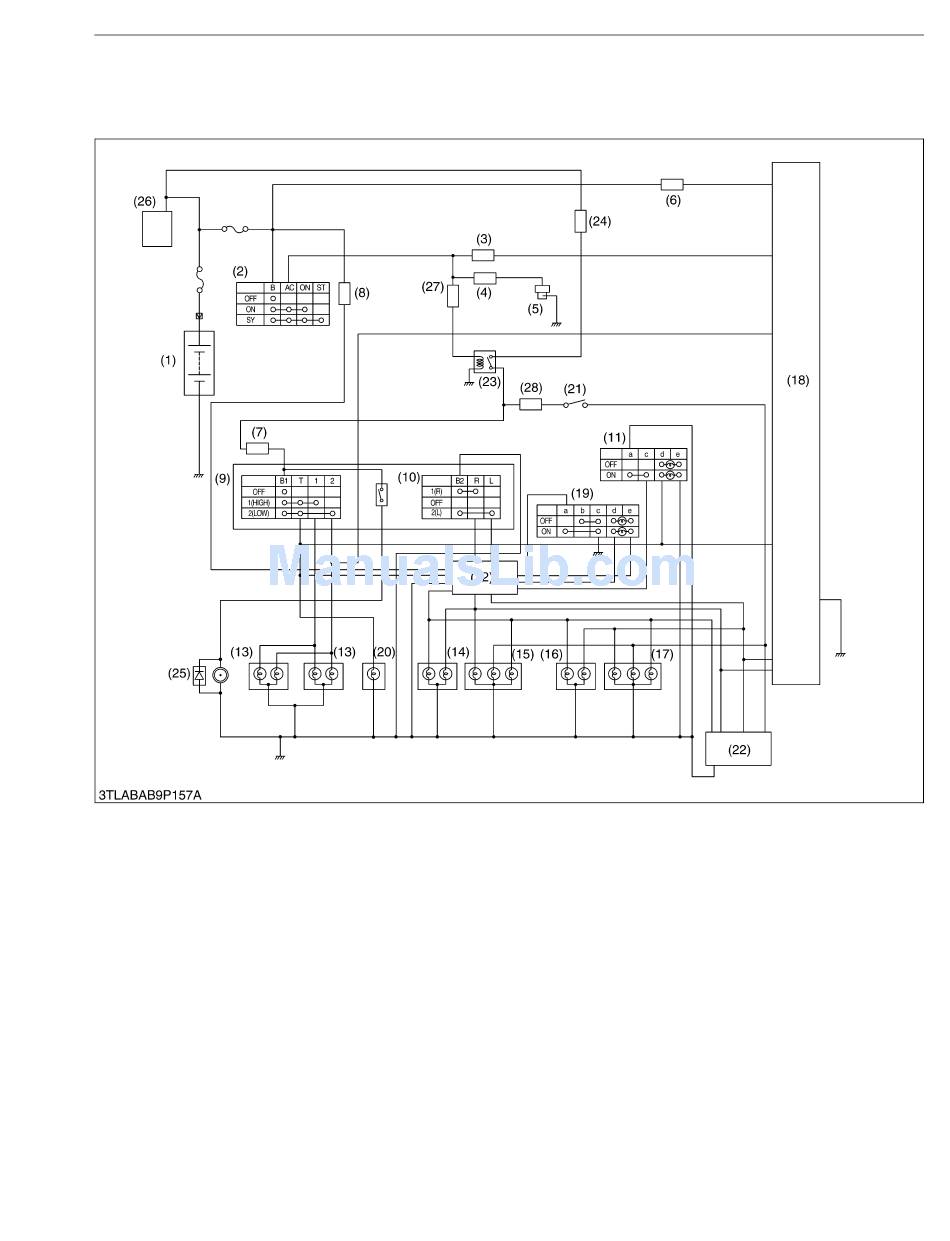

5. LIGHTING SYSTEM

[1] ROPS TYPE

(1) Battery
(2) Main Switch
(3) Fuse (7.5 A)
(4) Fuse (7.5 A)
(5) Working Light (Option)
(6) Fuse (5 A)
(7) Fuse (25 A)
(8) Fuse (7.5 A)
(9) Head Light Switch
(10) Turn Signal Switch
(11) Hazard Switch
(12) Flasher Unit
(13) Head Light
(14) Front Combination Lamp, RH
(15) Rear Combination Lamp, RH
(16) Front Combination Lamp, LH
(17) Rear Combination Lamp, LH
(18) Electronic Instrument Panel
(IntelliPanel)
(19) Position Switch
(20) License Plate Lamp
(21) Brake Lamp Switch
9-M33
ELECTRICAL SYSTEM
(22) Trailer Socket
(23) Lamp Relay
(24) Fuse (45 A)
(25) Horn
(26) Alternator
(27) Fuse (5 A)
(28) Fuse (20 A)
