L3130 · L3430 · L3830 · L4630 · L5030, WSM

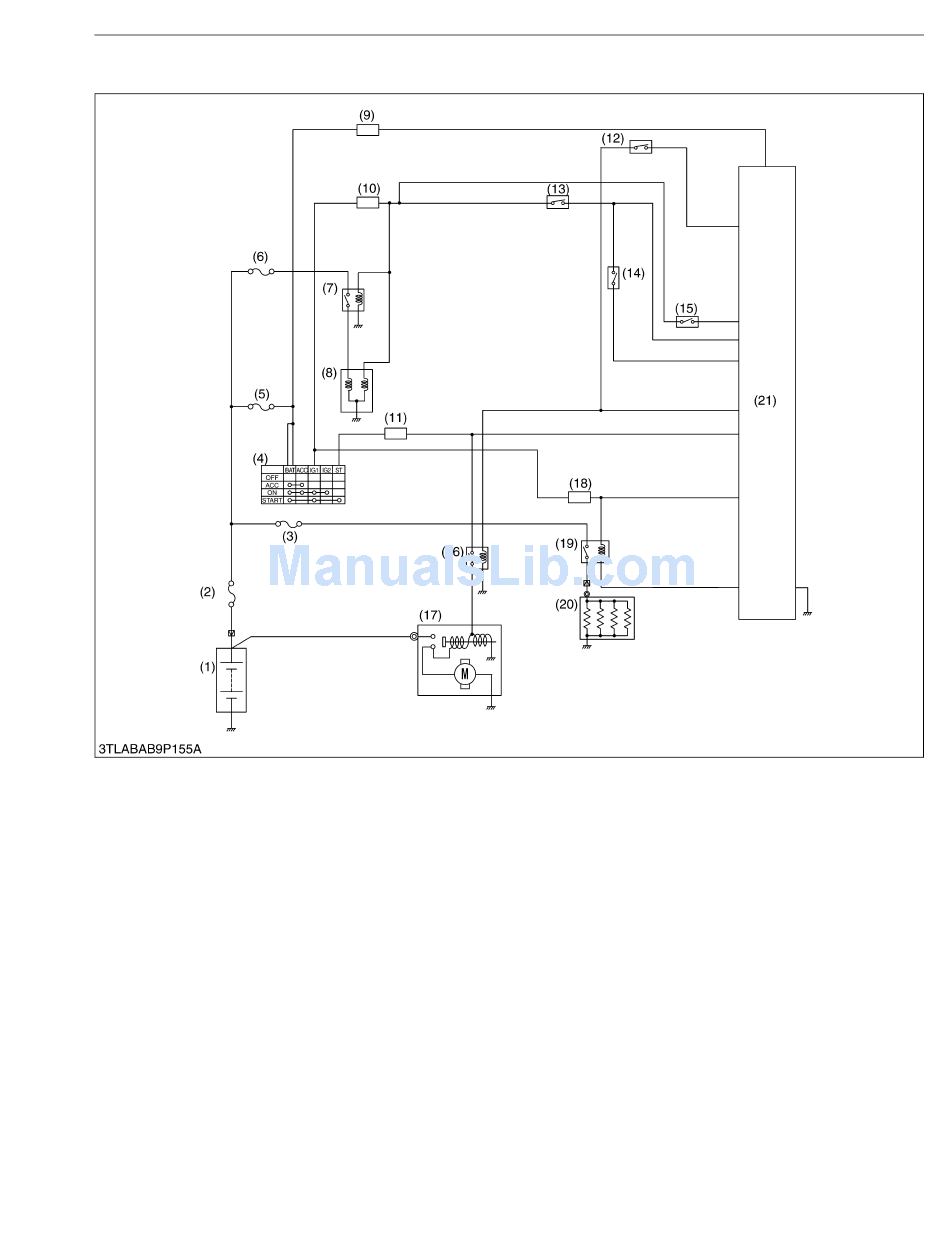

[4] HST MODEL

(1) Battery
(2) Slow Blow Fuse (80 A)
(3) Slow Blow Fuse (50 A)
(4) Main Switch
(5) Slow Blow Fuse (60 A)
(6) Slow Blow Fuse (30 A)
(7) Key Stop Solenoid Relay
(8) Key Stop Solenoid
(9) Fuse (5 A)
(10) Fuse (5 A)
(11) Fuse (30 A)
(12) PTO Switch
(13) HST Pedal Switch
(14) Main Clutch Switch
(15) Cruise Switch
(16) Starter Relay
(17) Starter
9-M31
ELECTRICAL SYSTEM
(18) Fuse (7.5 A)
(19) Glow Relay
(20) Glow Plug
(21) Electronic Instrument Panel
(IntelliPanel)
KiSC issued 02, 2007 A
