L3130 · L3430 · L3830 · L4630 · L5030, WSM

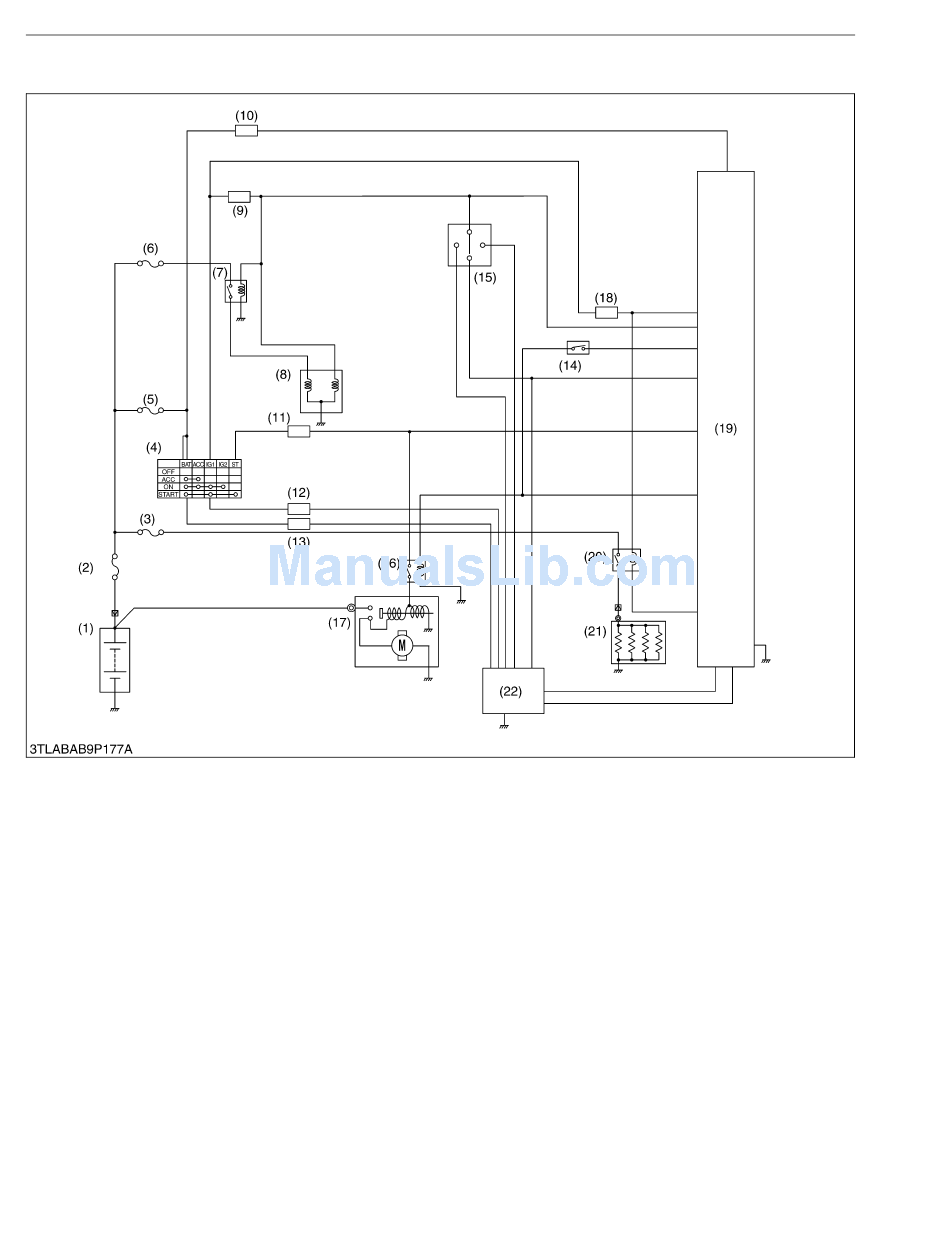

[3] GST MODEL

(1) Battery
(2) Slow Blow Fuse (80 A)
(3) Slow Blow Fuse (50 A)
(4) Main Switch
(5) Slow Blow Fuse (60 A)
(6) Slow Blow Fuse (30 A)
(7) Key Stop Solenoid Relay
(8) Key Stop Solenoid
(9) Fuse (5 A)
(10) Fuse (5 A)
(11) Fuse (30 A)
(12) Fuse (10 A)
(13) Fuse (5 A)
(14) PTO Switch
(15) Shuttle Switch
(16) Starter Relay
(17) Starter
(18) Fuse (7.5 A)
9-M30
ELECTRICAL SYSTEM
(19) Electronic Instrument Panel
(IntelliPanel)
(20) Glow Relay
(21) Glow Plug
(22) Electronic Control Unit (ECU)
KiSC issued 02, 2007 A
