18
OPTIONS

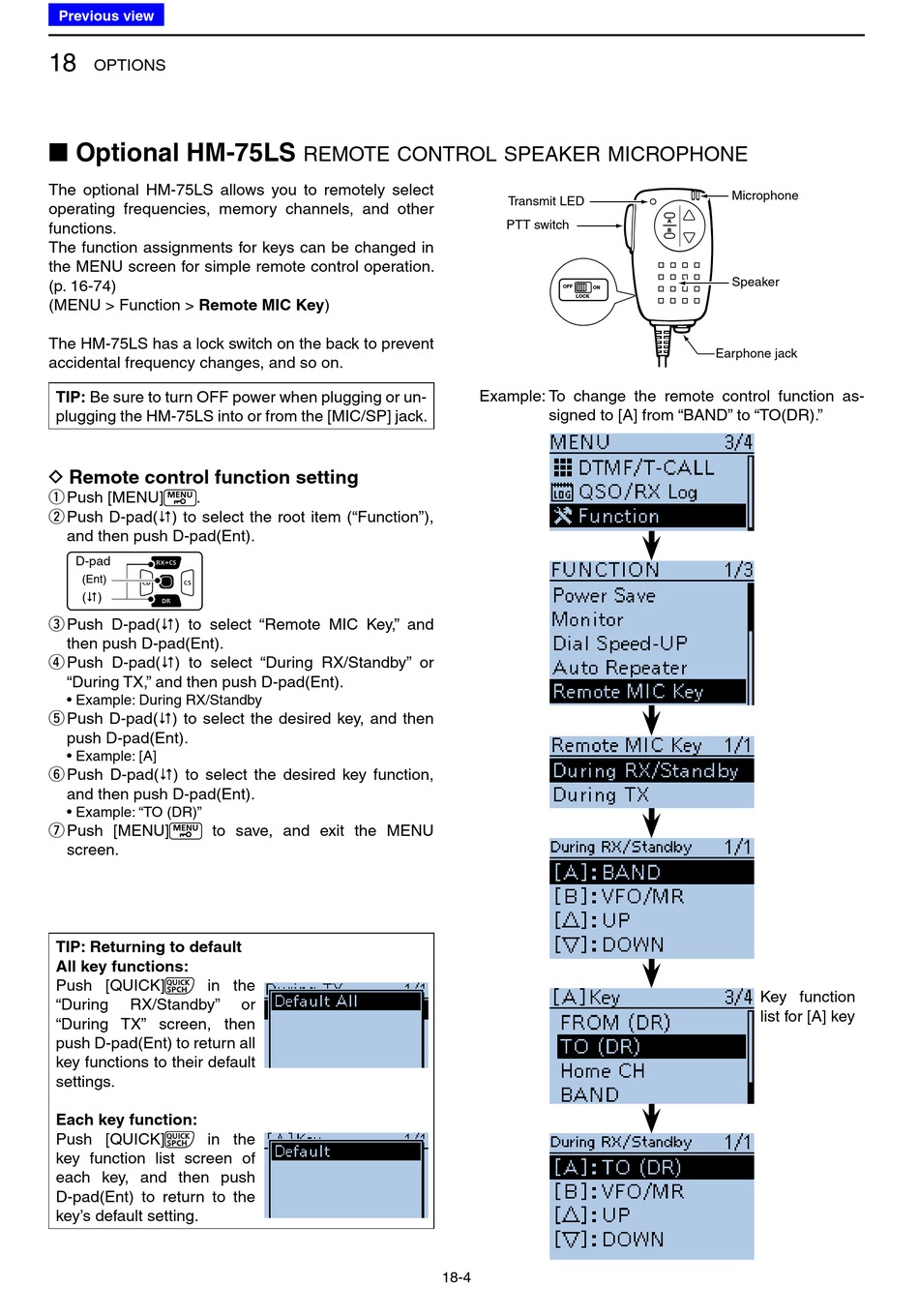

■ Optional HM-75LS
The optional HM-75LS allows you to remotely select
operating frequencies, memory channels, and other
functions.
The function assignments for keys can be changed in
the MENU screen for simple remote control operation.
(p. 16-74)
(MENU > Function > Remote MIC Key)
The HM-75LS has a lock switch on the back to prevent
accidental frequency changes, and so on.
TIP: Be sure to turn OFF power when plugging or un-
plugging the HM-75LS into or from the [MIC/SP] jack.

D Remote control function setting

q Push [MENU] .
w Push D-pad() to select the root item ("Function"),
and then push D-pad(Ent).
D-pad
(Ent)
( )
e Push D-pad() to select "Remote MIC Key," and
then push D-pad(Ent).
r Push D-pad() to select "During RX/Standby" or
"During TX," and then push D-pad(Ent).
• Example: During RX/Standby
t Push D-pad() to select the desired key, and then
push D-pad(Ent).
• Example: [A]
y Push D-pad() to select the desired key function,
and then push D-pad(Ent).
• Example: "TO (DR)"
u Push [MENU] to save, and exit the MENU
screen.
TIP: Returning to default
All key functions:
Push [QUICK] in the
"During RX/Standby"
"During TX" screen, then
push D-pad(Ent) to return all
key functions to their default
settings.
Each key function:
Push [QUICK] in the
key function list screen of
each key, and then push
D-pad(Ent) to return to the
key's default setting.
remote control speaker microphone
or
Transmit LED
PTT switch
OFF
ON
LOCK
Example: To change the remote control function as-
signed to [A] from "BAND" to "TO(DR)."
18-4
Microphone
A
B
Speaker
Earphone jack
Key function
list for [A] key
