INSTALLATION AND CONNECTIONS

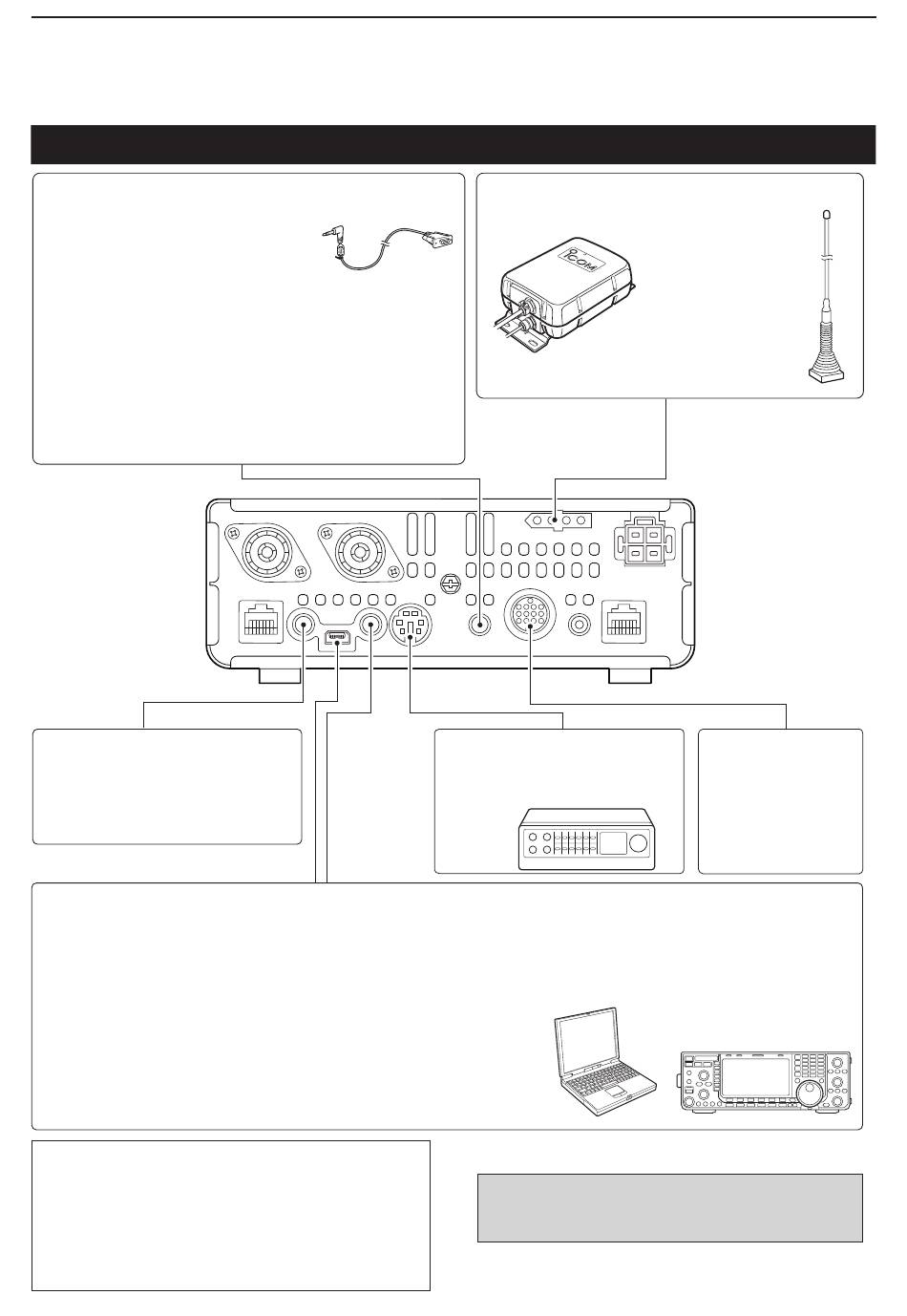

The External Units Connections to a Transceiver

[DATA1] DATA1 JACK
AI sec. 10
For GPS operation (
• Connect a GPS receiver to the transceiv-
er.
• The optional OPC-1529R (Data commu-
nication cable) and a 3rd party's GPS re-
ceiver with RS-232C Port are required.
For low-speed data communication in the DV mode
• Connect the transceiver to a PC.
• The USB cable can also be used for low-speed data commu-
nication..
[SP] (EXTERNAL) SPEAKER JACK
Similar to the [PHONES/SP] jack
on the controller. Plug in an exter-
nal speaker.
3.5(d) mm/
[USB] USB (Universal Serial Bus) PORT
• Remotely control the transceiver using CI-V commands
• Send the received audio to the PC
• Input modulation (pp. 1-15, 6-8)
• Send the decoded RTTY outputs to the PC
• Low-speed data communication in the DV mode (AI sec. 9)
• Cloning using the optional CS-7100
• Remotely control using the optional RS-BA1
NOTE: By setting "ACC/USB output selection" of the
Connectors Set mode (AI sec. 17), the receiving tone
can normally be output from the [ACC] socket, and
the [USB] port can output an IF signal (12 kHz). This
is required for the Software-Defined Radio (SDR) op-
eration. The Digital Radio Mondiale (DRM) broadcast
can be received using SDR.
)
OPC-1529R
(Optional)
(p. 2-4)
⁄ ˝ plug
1
8
cloning software
[TUNER] TUNER CONTROL SOCKET (AI sec.16)
AH-4 (Optional)
AI sec. 9
( )
[DATA2] DATA2 SOCKET
Connect a TNC (Terminal Node Con-
troller) for packet communication.
[REMOTE] REMOTE CONTROL JACK
• Remotely control the transceiver using CI-V commands.
(AI sec. 20)
• Cloning between transceivers (AI sec.19)
3.5(d) mm/
(AI sec. 19)
CAUTION: DO NOT connect any device to [RE-
MOTE] when cloning using the optional CS-7100
cloning software
2-6
Connect the control
cable from an op-
tional AH-4 (HF/50
MHz automatic an-
tenna tuner).
AH-2b (Optional)
• Connected to AH-4
[ACC] ACCESSORY
AI sec. 18)
(
SOCKET (p. 1-16)
Connect control lines
for external equipment
such as TNC or a PC.
⁄ ˝ plug
1
8
.
(AI sec. 20)
