10
OTHER FUNCTIONS

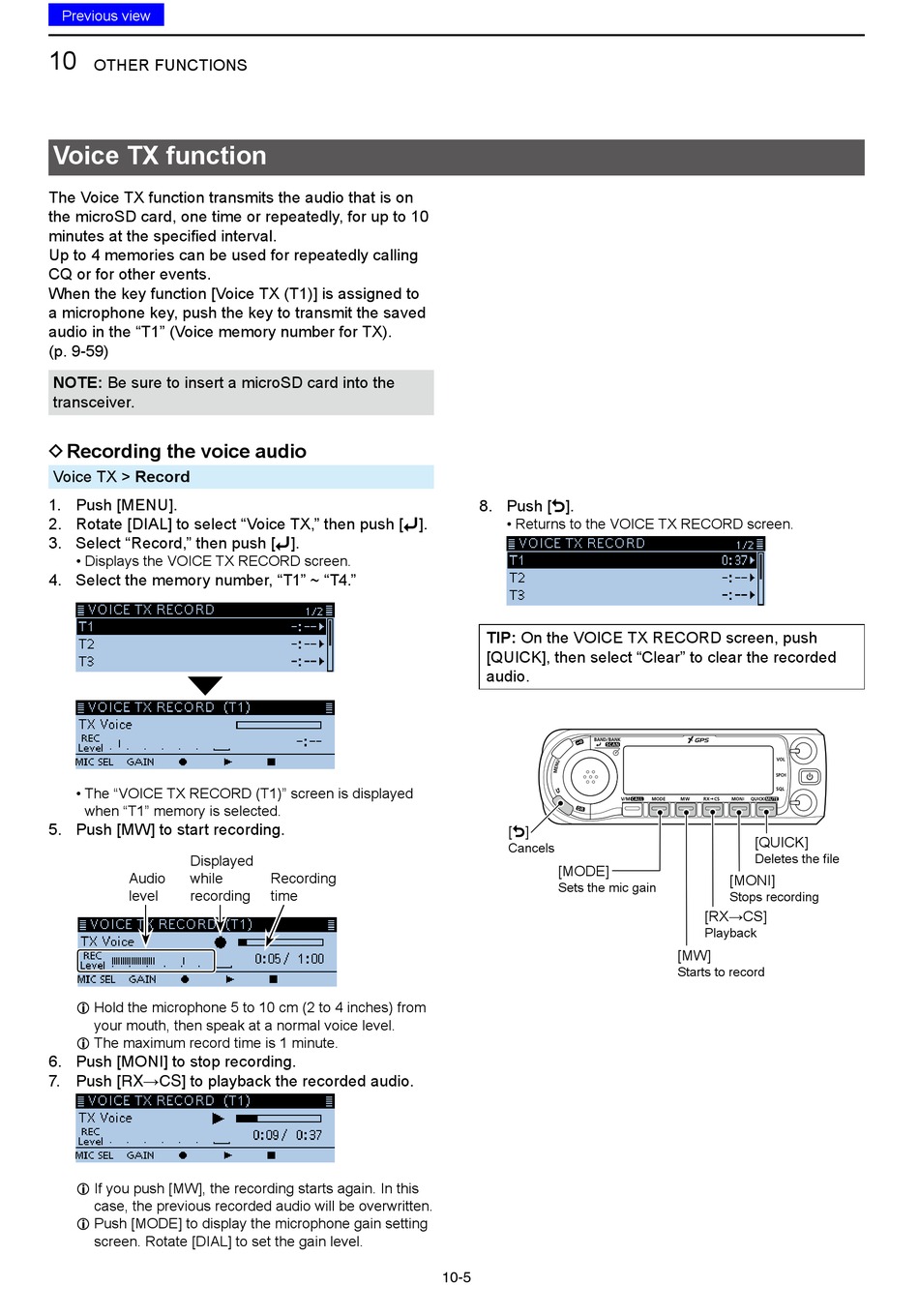

Voice TX function

The Voice TX function transmits the audio that is on
the microSD card, one time or repeatedly, for up to 10
minutes at the specified interval.
Up to 4 memories can be used for repeatedly calling
CQ or for other events.
When the key function [Voice TX (T1)] is assigned to
a microphone key, push the key to transmit the saved
audio in the "T1" (Voice memory number for TX).
(p. 9-59)
NOTE: Be sure to insert a microSD card into the
transceiver.

D Recording the voice audio

Voice TX > Record
1. Push [MENU].
2. Rotate [DIAL] to select "Voice TX," then push [ï].
3. Select "Record," then push [ï].
• Displays the VOICE TX RECORD screen.
4. Select the memory number, "T1" ~ "T4."
• The "VOICE TX RECORD (T1)" screen is displayed
when "T1" memory is selected.
5. Push [MW] to start recording.
Displayed
Audio while
level recording
L Hold the microphone 5 to 10 cm (2 to 4 inches) from
your mouth, then speak at a normal voice level.
L The maximum record time is 1 minute.
6. Push [MONI] to stop recording.
7. Push [RX→CS] to playback the recorded audio.
L If you push [MW], the recording starts again. In this
case, the previous recorded audio will be overwritten.
L Push [MODE] to display the microphone gain setting
screen. Rotate [DIAL] to set the gain level.
Recording
time
10-5
8. Push [].
• Returns to the VOICE TX RECORD screen.
TIP: On the VOICE TX RECORD screen, push
[QUICK], then select "Clear" to clear the recorded
audio.
[]
Cancels
[MODE]
Sets the mic gain
[QUICK]
Deletes the file
[MONI]
Stops recording
[RX→CS]
Playback
[MW]
Starts to record
