10. D-STAR OPERATION (ADVANCED)

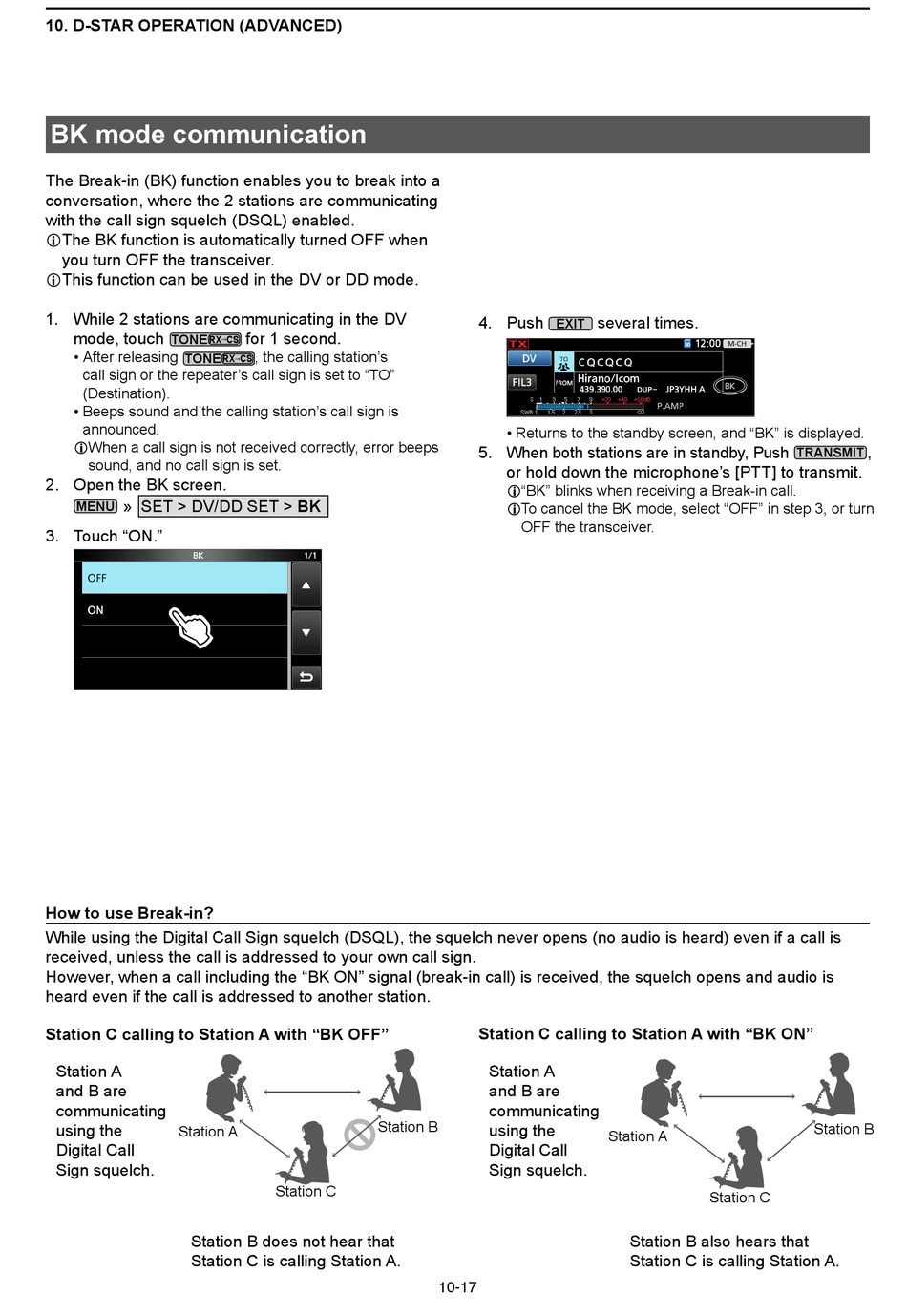

BK mode communication

The Break-in (BK) function enables you to break into a
conversation, where the 2 stations are communicating
with the call sign squelch (DSQL) enabled.
L The BK function is automatically turned OFF when
you turn OFF the transceiver.
LThis function can be used in the DV or DD mode.
1. While 2 stations are communicating in the DV
mode, touch
TONE
RX → CS
• After releasing
TONE
call sign or the repeater's call sign is set to "TO"
(Destination).
• Beeps sound and the calling station's call sign is
announced.
L When a call sign is not received correctly, error beeps
sound, and no call sign is set.
2. Open the BK screen.
» SET > DV/DD SET > BK
MENU
3. Touch "ON."
How to use Break-in?
While using the Digital Call Sign squelch (DSQL), the squelch never opens (no audio is heard) even if a call is
received, unless the call is addressed to your own call sign.
However, when a call including the "BK ON" signal (break-in call) is received, the squelch opens and audio is
heard even if the call is addressed to another station.
Station C calling to Station A with "BK OFF"
Station A
and B are
communicating
using the
Station A
Digital Call
Sign squelch.
Station B does not hear that
Station C is calling Station A.
for 1 second.
, the calling station's
RX → CS
Station B
Station C
4. Push several times.
EXIT
• Returns to the standby screen, and "BK" is displayed.
5. When both stations are in standby, Push
or hold down the microphone's [PTT] to transmit.
L "BK" blinks when receiving a Break-in call.
L To cancel the BK mode, select "OFF" in step 3, or turn
OFF the transceiver.
Station C calling to Station A with "BK ON"
Station A
and B are
communicating
using the
Station A
Digital Call
Sign squelch.
10-17
TRANSMIT
Station C
Station B also hears that
Station C is calling Station A.
,
Station B
