CDM-625 Advanced Satellite Modem
Ethernet Management
6.5.4.4.2
Status | Modem Logs Page
The 'Status | Modem Logs' page (Figure 6-14) provides the user with control over how the
following parameters are processed by the unit:
•
Fault
•
Alarms
•
Stored Statistics
The user is also able to configure Alarm Masks for the unit with this page.
For details on the configuration parameters available for this page, refer to Chapter 5. FRONT
PANEL OPERATION.
Once the desired settings have been made in each section, the user should then click [Submit] as
needed in that section to save those changes.

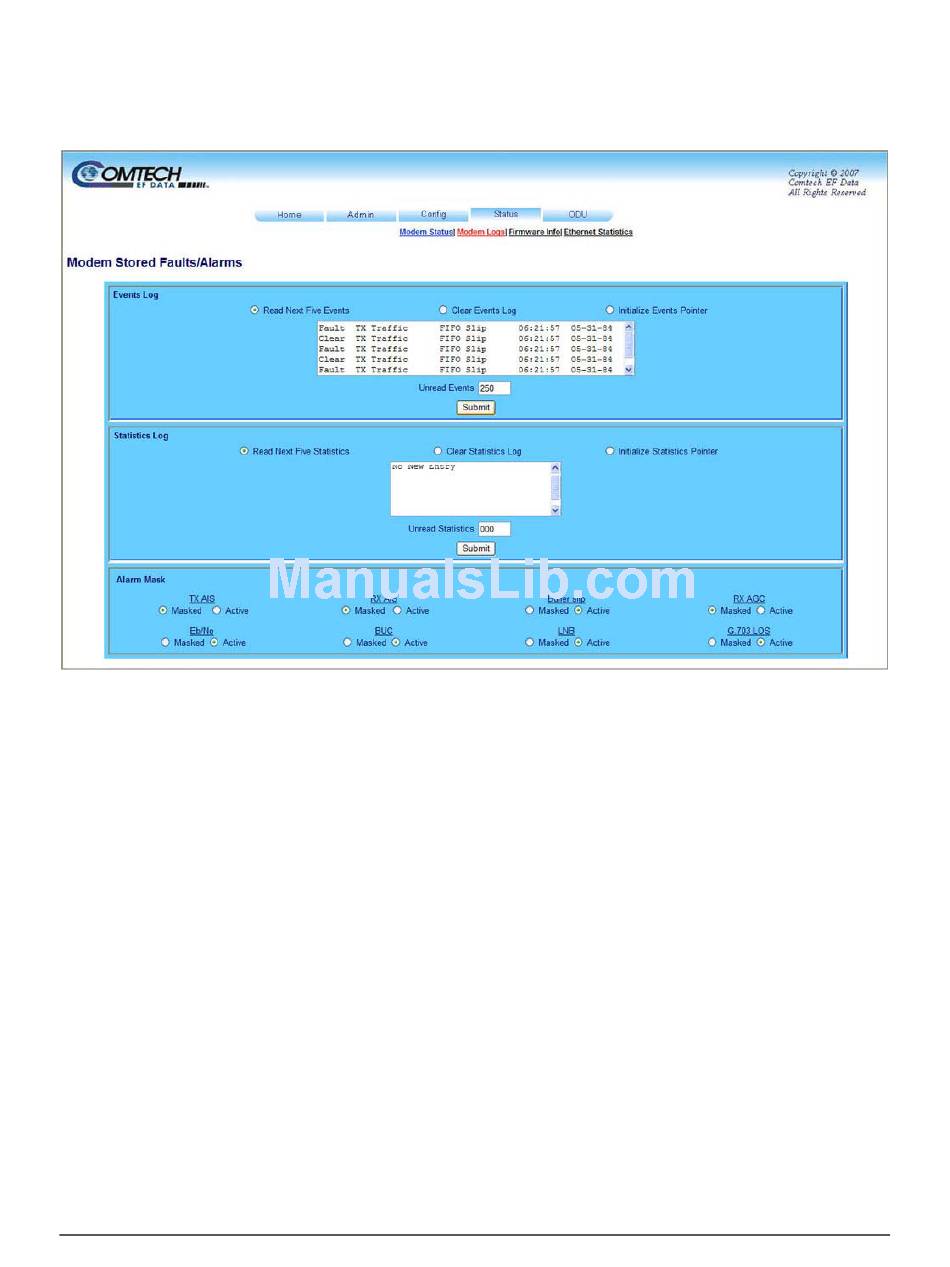

Figure 6-14. Status | Modem Logs page
6–22
MN-0000036 (Ref MN/CDM625.IOM)
Revision 1
