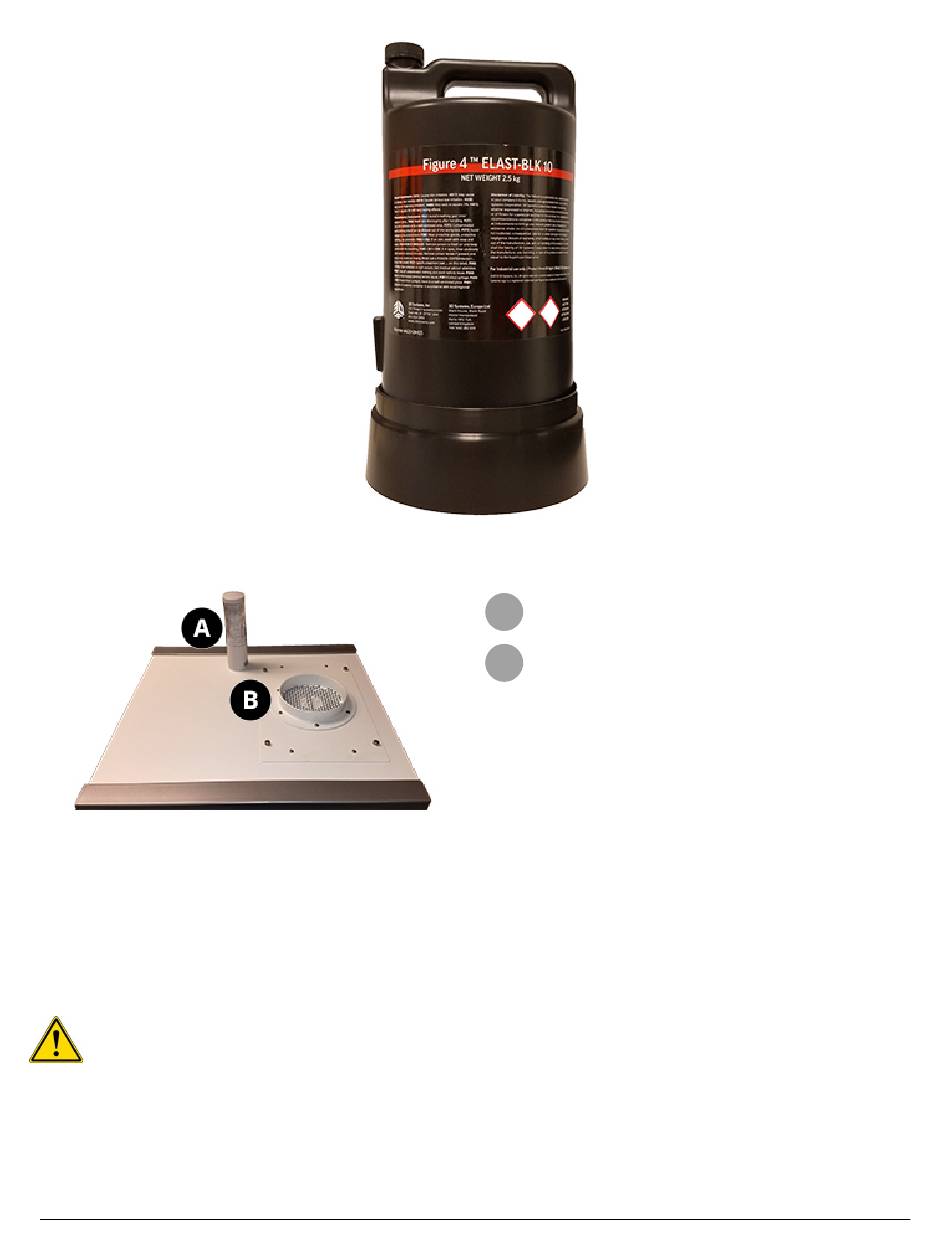

3.3.3 Top of Printer
Taken from right side of Printer
Potential Ventilation Setup
If desired, you may use item B above to connect the Printer to an external ventilation system. You are responsible for providing
and connecting any external ventilation system.
3.3.4 Leveling Feet
The Printer has four casters with leveling feet.
CAUTION: Adjusting the leveling feet improperly can result in variable material height in the resin tray, which
can cause a degradation in print quality due to variable material flow under the part.
3D Systems, Inc.
Status Light - This is a series of lights that
A
indicates the current state of a Printer.
Exhaust Fan Housing - Houses the exhaust fan
B
and allows connection of the machine to external
ventilation. You may remove this panel to remove
the Carbon Filter from above; but the filter may
also be removed via the back panel.
35
p/n 42-D116, Rev. K
