3.3.2 Lower Build Chamber

Overview
Projector
The projector is located behind the MDM (item E, above). It projects optical radiation onto the underside of the Resin Tray,
causing a reaction that polymerizes the material for each printed layer.
3.3.2.1 Catch Tray
Catch tray, installed
3D Systems, Inc.

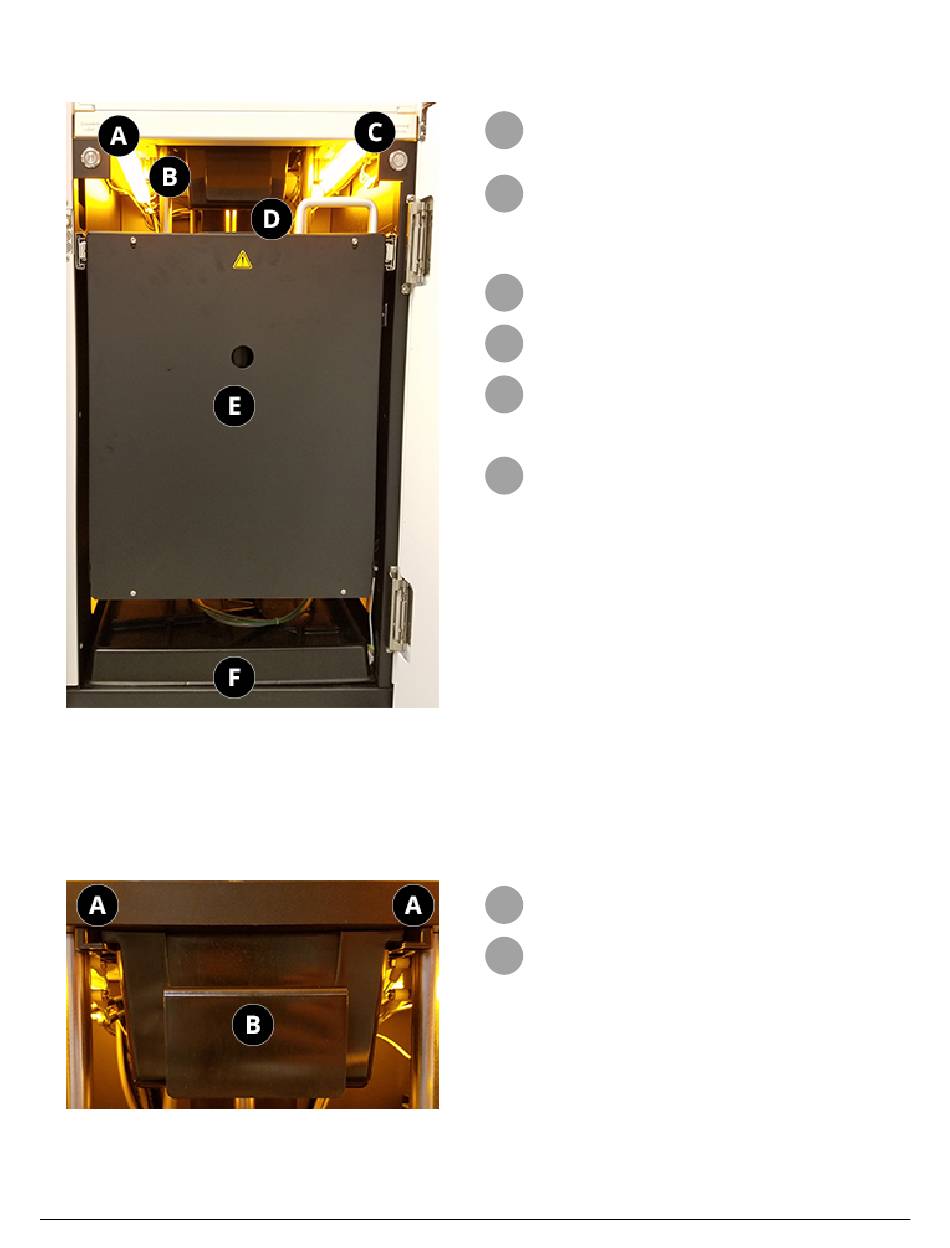

Chamber Lights Button - Press this button to
A
toggle the upper-build chamber's lights on/off.
These lights illuminate the upper build chamber.
Catch Tray - Protects the bottom of the print
B
engine from material spills. Please note that you
will receive a new catch tray with each resin tray
ordered. Please see the section
more information.
Tension Toggle Button - Use this button to toggle
C
the pneumatic-tension arms on/off.
MDM Handle - Use this handle to slide the MDM
D
in and out of the machine.
Material Delivery Module (MDM) - Pumps material
E
from a cartridge to fill the resin tray in the upper
build chamber. Please see the section
Delivery Module (MDM)
Printer Drip Tray - This removable tray catches
F
any material drips or spills that may occur in the
machine.
Catch-Tray Rails - Guide catch tray into position
A
and hold it in place.
Catch-Tray - Protects the print engine from print
B
material spills. Please note that you will receive a
new catch tray with each resin tray ordered.
29
Catch Tray for
Material
for more information.
