Top of Cartridge
Bottom of Cartridge
Cartridge Stand

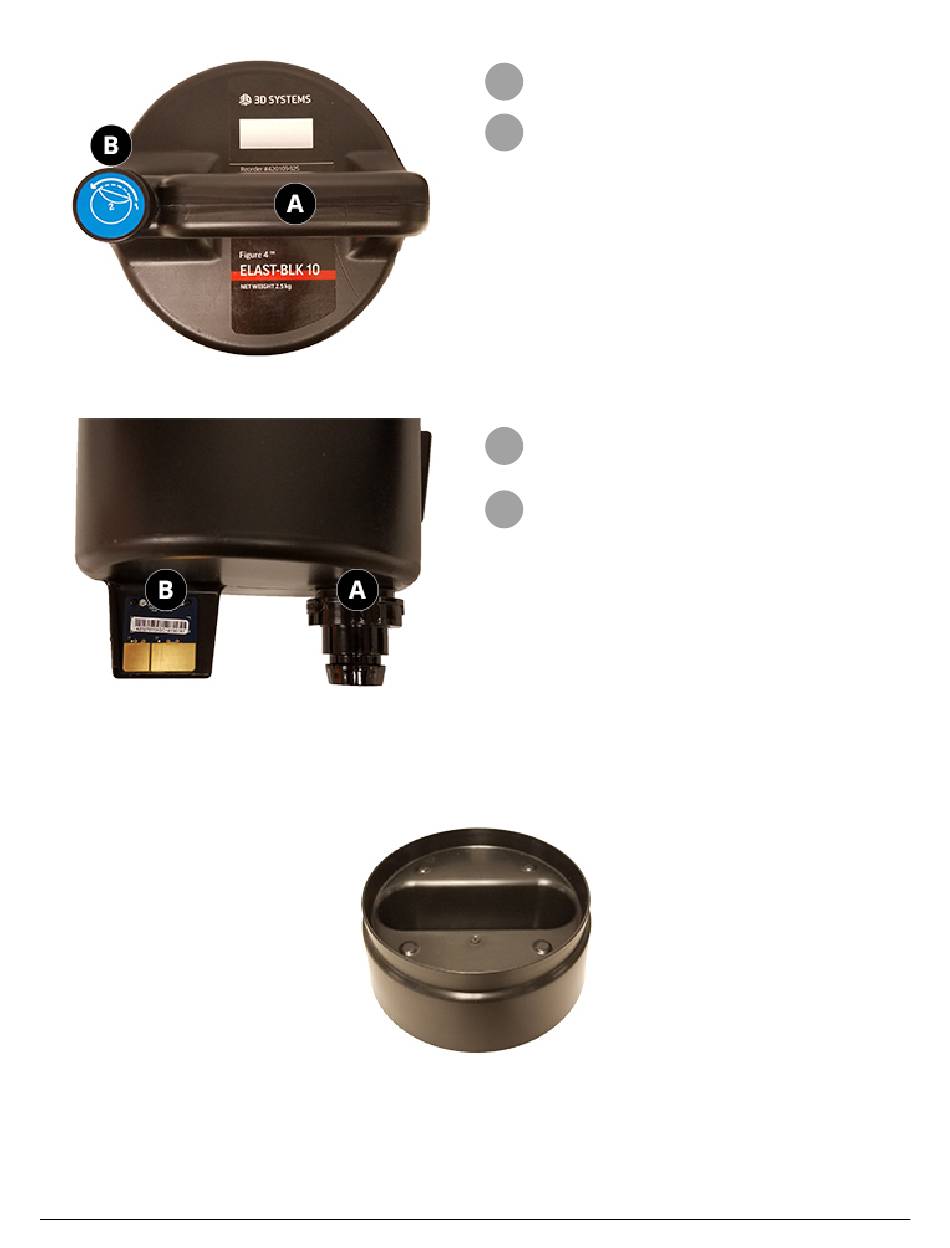

As seen in the images above, the Modular material cartridges have features on the bottom that prevent them from standing up
straight on their own in storage. The cartridge stand has a groove cut out to accommodate these features to allow the cartridge
to stand up.
→
3D Systems, Inc.
Carry Handle - Always carry the material cartridge
A
by this handle.
Ventilation Cap - Vents the material cartridge to
B
prevent negative pressure inside
Cartridge Valve - Engages the Material-Cartridge
A
Coupler in the MDM and opens/closes to facilitate
material flow from the cartridge to the machine.
Cartridge Chip - This contains memory of all
B
material cartridge information to be passed onto
the machine.
