Changing Out The Carbon Filter - 3D Systems FIGURE 4 MODULAR User Manual

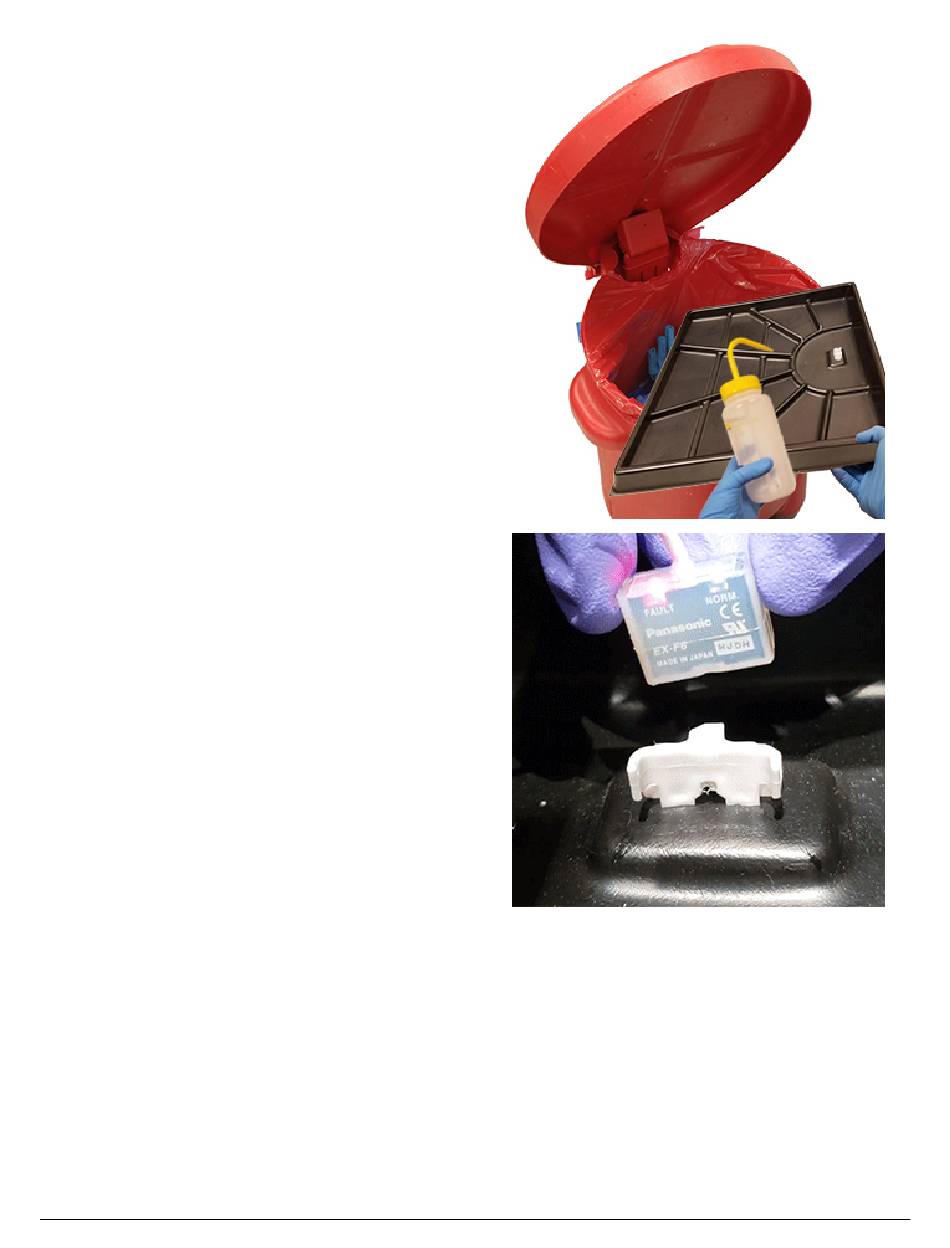

1. While holding the tray above your hazardous waste can,
with the far corner channeling wast material into the can,
spray IPA on any visible spots of material. Continue until
all visible material is gone. Be sure to also spray the Leak-
Sensor Bracket with IPA.
2. Dry the drip tray with lint-free paper towels.
1. Reinstall the Printer Drip Tray in the machine and reinstall
the leak sensor. Ensure that the bottom of the sensor is
flush with the tray and that the light on the sensor turns
green.

7.2 Changing Out the Carbon Filter

You should change the carbon filter once per year, or if printer fumes become excessive. To change the carbon filter:
3D Systems, Inc. 152 p/n 42-D116, Rev. K
