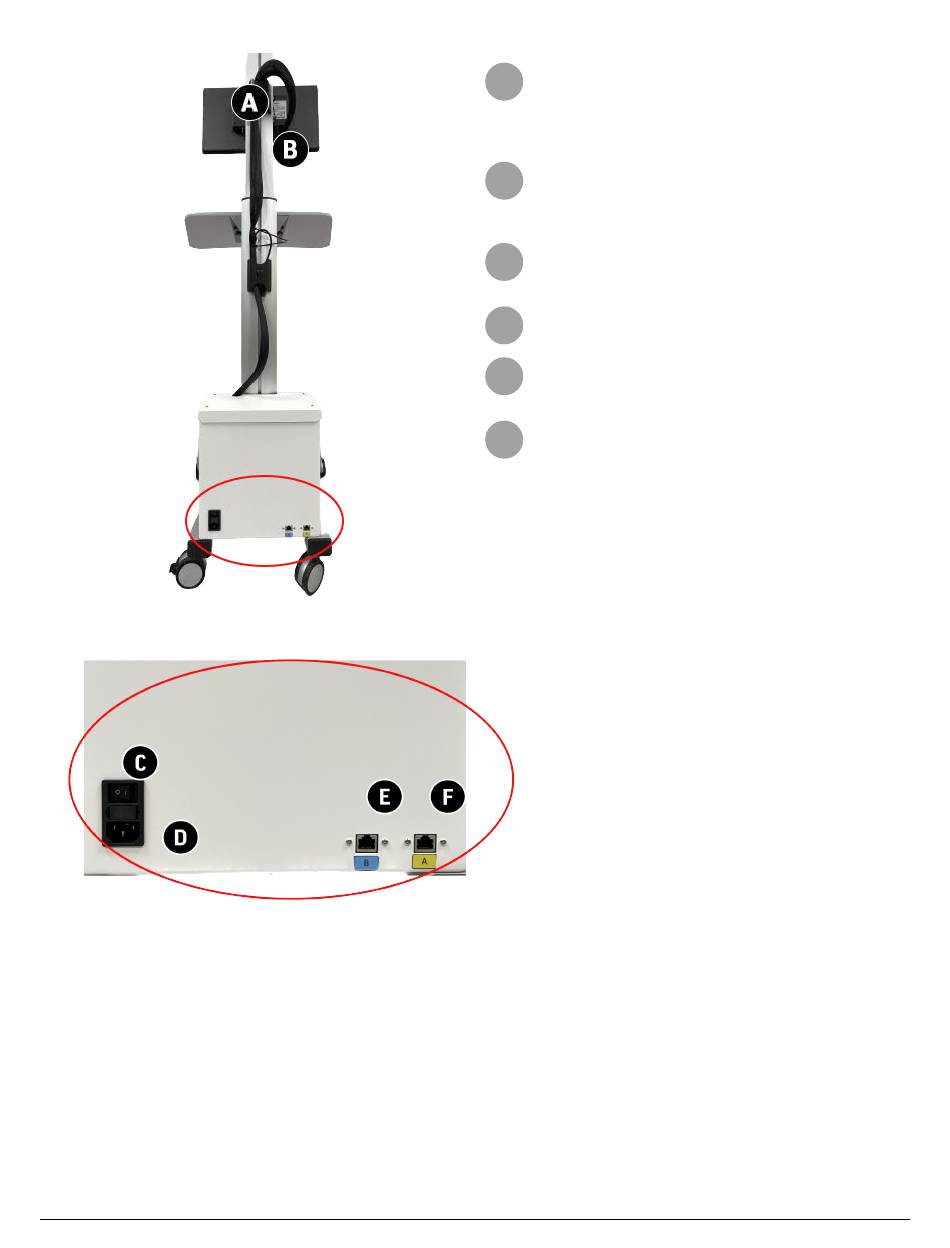

Back View
3D Systems, Inc.
Monitor Mount - Allows monitor to tilt up and
A
down. Also routes video and data connections
through to the Controller Computer. Only 3D
Systems Service should remove the monitor from
the mount and replace any cables.
Monitor Inputs - All video and data connections
B
for the touch screen interface here. Only 3D
Systems Service should remove/replace these
cables.
Power Switch - Located just above the power inlet,
C
use the power switch to power the Controller on/
off.
Power Inlet - Plug the Controller's power cable
D
into this inlet.
Ethernet Port B - Use this port to plug in your
E
internet cable for both networking setups. This
port cannot be used as internet input.
Ethernet Port A - Use this port for Dedicated
F
Printer LAN Network Setup. This port cannot be
used to connect to a dedicated printer LAN.
