6.1.1.1.7 Cartridge Status
6.1.1.2 Fly-out Menu
The Fly-out Menu contains Printer information and options
for display control. To open the Fly-out Menu, tap the menu
button, as seen at the right.
3D Systems, Inc.

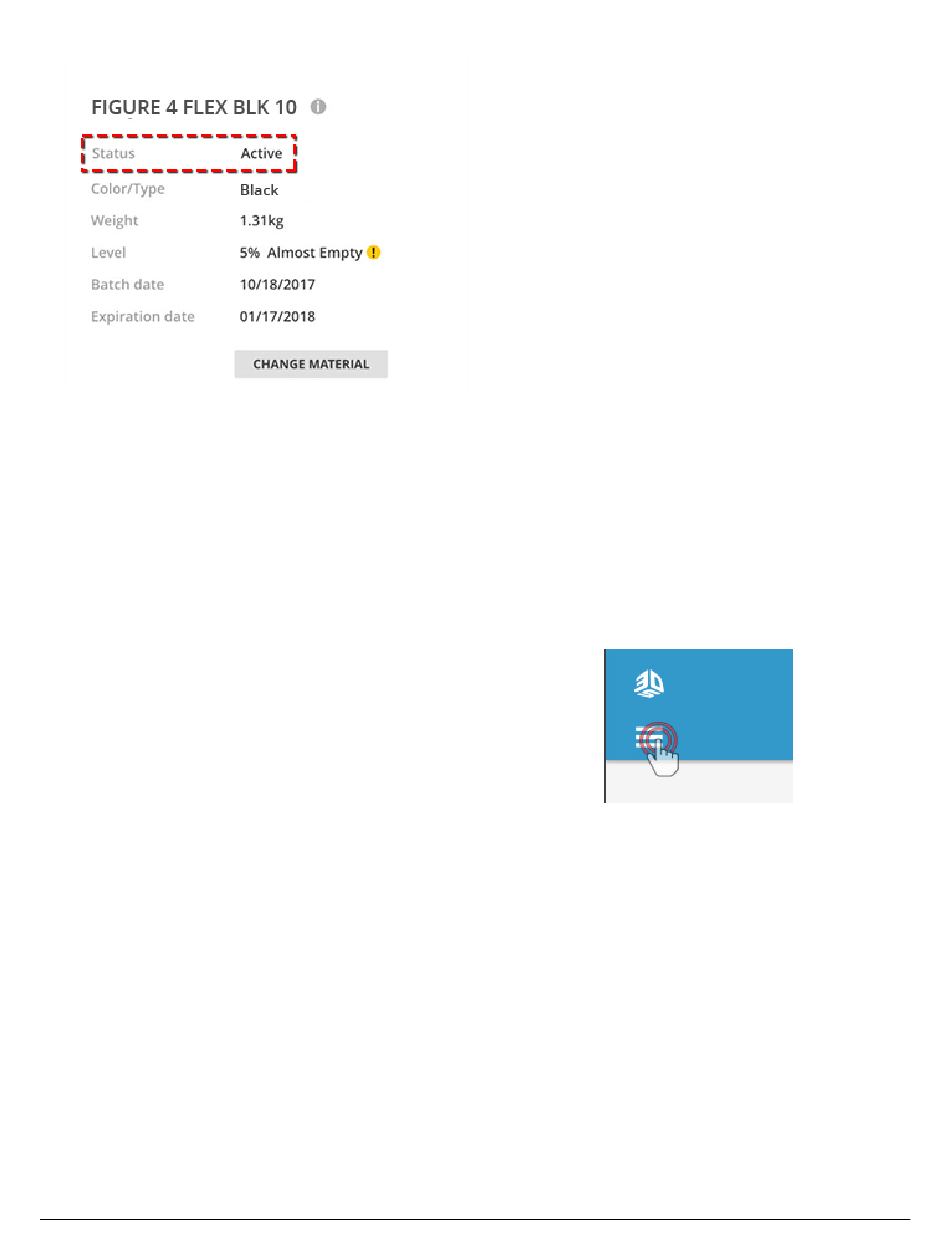

There are several different statuses that your material
cartridge can have:
Active - A material cartridge is present, has material inside,
and is usable by the printer.
Inactive - A material cartridge is present and has material
inside, but that the printer is in a state where it cannot use the
cartridge for printing, such as during a
Missing - Either there is no cartridge in the MDM or the
Cartridge Chip is not detected.
Near Empty - Less than 10% of the cartridge's contents
remain. Be sure you have
it.
Empty - The material cartridge is empty.
Expired - The cartridge's expiration date has passed. Please
use a new material cartridge.
Invalid - The Cartridge Chip is either not authenticated or not
supported on the printer. Contact 3D Systems Service.
Corrupt Data - The Cartridge Chip is not in the proper format.
Contact 3D Systems Service.
HW Failure - The chip reader on the printer has an error.
Contact 3D Systems Service.
Material Mismatch - The current cartridge's material type does
not match the material type in the material tubes and resin
tray. The printer will not allow you to print with this cartridge
installed. Please install a cartridge of the same material type.
71
Material Changeover.
premixed a new cartridge to replace
