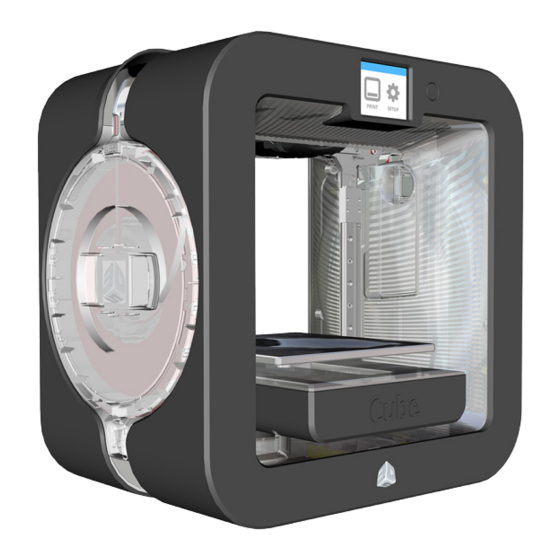

3D Systems Cube User Manual

Personal 3d printer 3rd generation
Hide thumbs Also See for Cube:
Table of Contents

Advertisement

Quick Links

Cube®
3
Generation
rd
Personal 3D Printer
User Guide
Original Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cube and is the answer not in the manual?

Questions and answers

Related Manuals for 3D Systems Cube

Summary of Contents for 3D Systems Cube

  • Page 1 Cube® Generation Personal 3D Printer User Guide Original Instructions...

  • Page 2: Table Of Contents

    UNPACKING AND SETTING UP YOUR CUBE . . . . . . . . . . . . . . . . .
  • Page 3 CUBE MAINTENANCE . . . . . . . . . . . . . . . . . . .
  • Page 4 Updating the Cube Firmware . . . . . . . . . . . . . . . . . .

  • Page 5: Introduction

    . With multiple material colors to choose from and two types of materials, enjoy the freedom to print in your true colors or mix it up . With its ready-to-print technology, the Cube provides a new dimension to your imagination and helps you share your creations with others in the Cubify community at Cubify .com .

  • Page 6: Warranty

    . 3D Systems will promptly repair or replace the Cube 3D Printer, if required, to make it free of defects during the warranty period . This warranty...

  • Page 7: Important Safety Information

    To ensure safety, please exercise caution when operating your Cube . Read and follow all safety precautions as outlined in this user guide . Be careful when operating your Cube 3D Printer to ensure proper printing and be mindful of and avoid hot surfaces .

  • Page 8: Cube 3D Printer Features

    CUBE 3D PRINTER FEATURES The print jets heat print materials and produce thin, flowing streams of melted plastic creating layers that adhere to the print pad. After each layer is produced, the print pad lowers so that a new layer can be drawn on top of the last . This process continues until the last layer on top of the creation has been printed .

  • Page 9: At A Glance

    AT A GLANCE Print Jets On / Off Button USB Inlet Port Print Jet Tubes (Mass Storage Device) Material Cartridges Power Inlet Print Pad Purge Bins USB B Port Print Platform (for future use) Touchscreen Display 3D Systems, Inc.

  • Page 10: Specifications And Requirements

    SPECIFICATIONS AND REQUIREMENTS WEIGHT Maximum Cube Weight (with cartridges): 17 lbs . (7 .7 kg) Maximum Box Weight: 23 lbs . (10 .43 kg) SOFTWARE Complimentary Cubify software for Windows and Mac OS X as well as iOS and Android mobile applications . These applications generate .cube3 file for printing on your printer.

  • Page 11: Dimensions

    13 .3”H x 13 .3”W x 11” D / 33 .5 x 33 .8 x 28 cm Front View Side View 11” (28 cm) 13.3” (33.5 cm) OPERATING ENVIRONMENT • Room Temperature: 16˚ - 29˚C (60˚ - 85˚F) • Non-Condensing Relative Humidity: 30% - 60% 3D Systems, Inc.

  • Page 12: Unpacking And Setting Up Your Cube

    Wrench Device *Depending on the Cube model and configuration, up to two cartridges may be included. Not every printer will be packaged with two cartridges . NOTE: The sandpaper should only be used for lightly sanding the print pad when prompted by the touchscreen display .
  • Page 13 NOTE: There must be a minimum of 4” (102 mm) space in front of and behind the printer . Front View Top View 8” (203 mm) 4” (102 mm) Back Front 4” (102 mm) Hand Clearance Around the Printer Build Plate Travel Area Remove the top insert . 3D Systems, Inc.
  • Page 14 Manually raise the print platform (A) and remove the spacer (B) from the printer . Open the accessories box and unpack the material cartridge(s)*, the USB mass storage device, the power supply and cord, and the bottle of Cube Glue . NOTE: Keep all packing materials for future repacking .
  • Page 15 Connect the power cord to utility power and to the power supply . NOTE: Ensure the connection is secure . Power on the printer by pressing the button next to the touchscreen display . 3D Systems, Inc.

  • Page 16: Initial Setup Of The Cube

    NOTE: You can change the name of your printer at any time . Navigate to the System 1 screen, select CUBE NAME and follow the instructions on the touchscreen display . NOTE: Selecting the button toggles between lowercase letters, uppercase letters and numerals .
  • Page 17 NOTE: If the wrong password was entered, you will be asked to enter the password again after a few seconds . NOTE: If the printer can not connect to a network, you will be asked to select another network after a few seconds . 3D Systems, Inc.
  • Page 18 Take note of the serial number. You will need it to activate your printer . Select the checkmark to continue . NOTE: This illustration provides an example of a serial number . Do not use this number to activate your printer . 3D Systems, Inc.
  • Page 19 Enter the 4-digit activation code into the printer and select the checkmark to continue . Select the checkmark to complete the registration and warranty activation process . NOTE: It is very important to calibrate your printer . 3D Systems, Inc.
  • Page 20 . Mount the cartridge on the left side of the printer and select the checkmark continue . NOTE: It may become necessary to slightly rotate the cartridge to seat it properly . 3D Systems, Inc.
  • Page 21 Rotate the print jet clockwise until the dots align . Select the checkmark continue . NOTE: As you rotate the print jet, ensure the print jet tube is tucked under the top of the printer cover . 3D Systems, Inc.
  • Page 22 Auto Level . NOTE: Auto Level should be performed when the printer is positioned away from bright lights or direct sunlight . NOTE: When installed properly, the print pad magnetically attaches to the adjustment knobs . 3D Systems, Inc.
  • Page 23 . The lock screw for adjustment knob A can be accessed from behind the printer . NOTE: Follow the instructions on the touchscreen display . Once the adjustments have been made, select the checkmark to continue . 3D Systems, Inc.
  • Page 24 . NOTE: The value presented on the touchscreen display is the absolute print pad position . Note and refer to this value when performing the Manual Level procedure . Your number may differ from the illustration . 3D Systems, Inc.
  • Page 25 . Select the checkmark continue . Gently squeeze the bottle and apply two thin layers of Cube Glue to the print checkmark pad . Select the to continue .
  • Page 26 Select the checkmark to go to the main menu . NOTE: You may also press and release the button next to the touchscreen display to return to the main menu . 3D Systems, Inc.

  • Page 27: Menu Overview

    Following AUTO LEVEL, AUTO GAP is an automated procedure that measures the distance between the print pad and the print jets. If the gap is out of specification, the user can perform the Manual Gap procedure . 3D Systems, Inc.

  • Page 28: Printer Calibration

    . This Test Print is the same Welcome Message test print that is printed when first setting up and activating your printer. CUBE NAME CUBE NAME is a utility that allows you to change the name of your printer .

  • Page 29: System 3

    Selecting FIRMWARE allows you to update the printer firmware either with a file downloaded to a USB mass storage device or by wireless connection . INFO By selecting INFO, the printer will display the printer status . 3D Systems, Inc.

  • Page 30: Installing A Material Cartridge

    . Follow the same concept to replace the right material cartridge if applicable . NOTE: The printer will begin to heat . Wait for the printer to heat and then follow the user prompts in the touchscreen menu . 3D Systems, Inc.
  • Page 31 . The left cartridge has been installed . Select the checkmark to complete the procedure . NOTE: Once the cartridge has been installed, allow the print jet to cool down before continuing . 3D Systems, Inc.

  • Page 32: Printing Your Creation

    USB mass storage device transfer . Using the arrows, navigate to the file name of your creation. Select PRINT . NOTE: The file name will appear at the top of the display. 3D Systems, Inc.
  • Page 33 . Select the checkmark to continue . Apply two thin layers of Cube Glue to the center of the print pad . Select the checkmark to continue . NOTE: Ensure that the area where glue is applied is larger than the dimensions of the base of your creation .
  • Page 34 . After a few seconds, the default time will appear again . NOTE: If you selected CANCEL to cancel the print, select CANCEL again to confirm your decision. Otherwise, select RESUME continue printing . Once the printer has finished printing, select the checkmark to continue . 3D Systems, Inc.
  • Page 35 CAUTION: Do not touch the print jets until they have cooled to room temperature . Refer to the section titled Finishing Your Creation for information about removing your creation from the print pad, cleaning the print pad and cleaning the part . 3D Systems, Inc.

  • Page 36: Finishing Your Creation

    Use pliers to pull away as much of the raft as possible . Then use a rough-grade sandpaper to remove the remaining raft material, followed by a fine-grade wet and dry sandpaper to achieve a smoother finish. 3D Systems, Inc.

  • Page 37: Removing Sidewalks

    To remove support material from moving parts or areas that are difficult to reach, it is recommended that the part is allowed to soak in water for several hours . Then, rinse the part under running warm water to ensure all supports have been removed . 3D Systems, Inc.

  • Page 38: Cubify Software

    . Go to www .cubify .com/en/cube/activate . Select WINDOWS . Navigate to the Downloads folder. Double-click the Cube installation file and select Run . NOTE: The Cubify InstallShield Wizard will begin to install .
  • Page 39 Enter a User Name Organization in the provided fields. Select Next continue . Select Next to install the application in the listed location or select Change browse to a different location . Install Select to continue . 3D Systems, Inc.

  • Page 40: Installing Cubify Software For Apple Os X

    NOTE: Apple OS X computers can only communicate with printers that are connected to the same wireless network . Go to www .cubify .com and log in with your username and password . Go to www .cubify .com/en/cube/activate . Select MAC . Double-click the Cube software .dmg installer file. 3D Systems, Inc.

  • Page 41: Installing Cubify For Android

    Cubify icon . Installing Cubify for Android NOTE: Android devices can only communicate with printers that are connected to the same wireless network . Open the Play Store from your Android browser . Select the Search icon . 3D Systems, Inc.
  • Page 42 Enter Cubify in the search box . Select the Cubify application and install it . 3D Systems, Inc.

  • Page 43: Installing Cubify For Ios

    NOTE: iOS devices can only communicate with printers that are connected to the same wireless network . Locate the Cubify application from the App Store and select it . Download the application to your iOS device . 3D Systems, Inc.

  • Page 44: Cubify Software Overview

    . Cubify is an application for the Cube that can connect to your www.cubify.com account. Users can find free creations or purchase other creations from a large number of available 3D models. Cubify imports 3D content files (such as .stl and .ply) and prepares them for printing with your printer .

  • Page 45: Account Settings

    . Privacy Policy Read the Privacy Policy Terms of Service Read the Terms of Service Select your unit of measure to either inches or App Settings millimeters . Help Application documentation About View the software version number 3D Systems, Inc.

  • Page 46: Design Feed Tab

    .cubify .com . NOTE: Some models can be purchased . To purchase a creation, select the option to add to the cart . When ready, you can finish the transaction and download the model to your Shelf. 3D Systems, Inc.

  • Page 47: Shop Tab

    The store is organized into several categories . Select a category from the Shop menu to view the available sub-categories . This allows for quicker access to your favorite design types and products . Category Dropdown Select a category from a dropdown list . Featured List Select a category from a list . 3D Systems, Inc.
  • Page 48 Select the category dropdown list to narrow your search . Categories are divided into product types and collections . After selecting a category, you can select a collection or a type . 3D Systems, Inc.
  • Page 49 After selecting a creation, you can find more information about the item, purchase it, print it (free files only) or add it to your shelf. Some models have multiple views . Select the navigation arrows (A)* to see other views . *Not an available feature for mobile applications . 3D Systems, Inc.

  • Page 50: My Shelf Tab

    The EKOCYCLE icon indicates a print-ready EKOCYCLE Icon EKOCYCLE Cube file. Item Selection You can select an item to print . The Cube icon indicates an optimized .cube3 printable Cube File file. Cube Icon This Cube icon represents a print-ready Cube file.
  • Page 51 Delete a selected item from My Shelf Select Print Now to prepare the selected item for Print Now printing . The checkmark indicates that the item has been Selected selected . *Not an available feature for mobile applications . 3D Systems, Inc.

  • Page 52: Print Tab

    Change the print settings SIDEWALKS SETTINGS print file. Transfer the print file to the printer Zoom in on a model PRINT using the wireless connection to your network . *Not an available feature for mobile applications . 3D Systems, Inc.

  • Page 53: Print Settings

    Short print times and low material use • Strong Stronger prints • Almost Solid High material use and almost solid prints Fill Pattern • Honeycomb Used for strong prints • Diamonds For general printing • Lines Shorter print time 3D Systems, Inc.
  • Page 54 Select Custom to view the current print settings . You can personalize the settings by selecting a category and then selecting the arrows to expand your options . Layers: • 0 .070 mm • 0 .200 mm Density: • Hollow • Strong • Almost Solid Fill Pattern: • Honeycomb • Diamonds • Lines 3D Systems, Inc.
  • Page 55 Print Settings - Draft Select Draft for prints that do not require strength or fine detail. Layers: 0 .200 mm Density: Hollow Fill Pattern: Lines 3D Systems, Inc.
  • Page 56 Print Settings - Standard Select Standard for strong prints that do not require fine detail. Layers: 0 .200 mm Density: Strong Fill Pattern: Diamonds 3D Systems, Inc.
  • Page 57 Print Settings - Premium Select Premium for prints that require strength and fine detail. Layers: 0 .070 mm Density: Strong Fill Pattern: Diamonds 3D Systems, Inc.

  • Page 58: Printer

    (F) enables you to find and connect to your printer on your wireless network. Available Printers Select a printer on your wireless network . Select Offline Cube if you intend to use a printer that is not Offline Cube connected to your network .
  • Page 59 Information Select Information (A) to view the printer status . 3D Systems, Inc.

  • Page 60: Connecting Cubify To Your Printer

    Select the printer on your network (B) . If you would rather print from a non-network printer, select Offline Cube (C) . NOTE: If your printer is not listed, select Refresh (D) and then select your printer from the list . You can also manually connect to the printer by entering its IP address and selecting ADD (E) .
  • Page 61 MY SHELF tab . Selecting From File will allow you to browse to the file on your computer where you can drag and drop the file directly to the print pad. *Not an available feature for mobile applications . 3D Systems, Inc.
  • Page 62 Remove To remove the model from the print pad, select the Remove* button . Select to confirm your decision. You can find the model again by selecting Shelf . *Not an available feature for mobile applications . 3D Systems, Inc.
  • Page 63 For mobile applications, press and hold the color wheel and then drag it to the part you want to color . For models with multiple parts, press, hold and drag the color wheel to the part of the model you want to color . 3D Systems, Inc.
  • Page 64 Exact Move field, selecting the X-axis or Y-axis, and selecting Move. When finished, close the Move toolbar and select the Move button to deselect it. *Not an available feature for mobile applications . 3D Systems, Inc.
  • Page 65 Y-axis, or Z-axis and then select either the right or left arrow . You can also rotate the model by selecting an axis and entering a value in the Exact Rotate field. Select Rotate to rotate the model to the specified amount. When finished, close the Rotate tool and select the Rotate button to deselect it. *Not an available feature for mobile applications . 3D Systems, Inc.
  • Page 66 Exact Scale field and select Scale. Entering 50 will reduce the model to half of the current size. Entering 200 will double the size of the model . The value 100 will have no effect . When finished, close the Scale tool and select the Scale button to deselect it. *Not an available feature for mobile applications . 3D Systems, Inc.
  • Page 67 Center Model Tool Select the model and then select the CENTER* button to center the model on the print pad . *Not an available feature for mobile applications . 3D Systems, Inc.
  • Page 68 The Reset Tool enables you to revert any changes back to default . If the model has been moved, rotated, scaled or centered, select the model and then select RESET to revert it back to its original state . Select to confirm your decision to reset the model. 3D Systems, Inc.
  • Page 69 Zoom In Zoom in on a model by selecting it and then selecting IN . ZOOM IN does not affect the size of the model but brings it closer for better viewing . 3D Systems, Inc.
  • Page 70 Zoom Out Zoom out on a model by selecting it and then selecting OUT . ZOOM OUT does not affect the size of the model but pushes the print pad away for another perspective . 3D Systems, Inc.
  • Page 71 Center Model Tool Select the model and then select the Center* button to center the model on the print pad . *Not an available feature for mobile applications . 3D Systems, Inc.
  • Page 72 Change Views Select Change Views and then select the camera viewing angle . 3D Systems, Inc.

  • Page 73: Sidewalks

    ABS material. They should not be used for parts that have fine details. Supports Supports are used when printing creations that need a supporting structure to print properly . These parts may have overhangs, cavities or other openings that will not print correctly without a supporting structure . 3D Systems, Inc.

  • Page 74: Printing A Model Via Wireless Connection

    Select an item from My Shelf and select Print Now . Drag a color wheel to the model to color the part . Scale and position the model and select Print . NOTE: Cubify will generate a print file. 3D Systems, Inc.
  • Page 75 NOTE: Cubify will transfer the file to the printer. Apply two thin layers of Cube Glue to the print pad and select OK . Select PRINT on the printer’s touchscreen display . Select the checkmark to continue . NOTE: For best results, allow the glue to dry before printing .
  • Page 76 NOTE: The print jets will heat to operating temperature . NOTE: The printer will begin to print . When the printer has finished printing, select the checkmark to continue . NOTE: Follow the steps in the section titled Finishing Your Creation . 3D Systems, Inc.

  • Page 77: Printing From A Mobile Application

    NOTE: Transferring a print file over a wireless network may take more time than transferring a print file from a USB mass storage device . The model view can be changed by using the following gestures: Zoom Out: Zoom In: Rotate the Print Pad: Move Model: 3D Systems, Inc.
  • Page 78 Select an item from My Shelf . Select Print Now . 3D Systems, Inc.
  • Page 79 Press, hold and drag a color wheel to the model to change the color . Select Print . NOTE: The printer will generate a .cube3 file and then transfer it to the printer over the wireless network . Select PRINT on the printer’s touchscreen display . 3D Systems, Inc.
  • Page 80 Apply two thin layers of Cube Glue to the print pad . Select the checkmark continue . NOTE: For best results, allow the glue to dry before printing . NOTE: To ensure proper adhesion, the glue area should be larger than the base of your printed creation .

  • Page 81: Saving A Model To A Mass Storage Device

    Select a color wheel to set a color for your model . Select a color and then select to continue . NOTE: For a list of available colors and material types, please visit www .cubify .com . Color, scale and position the model on the print pad . 3D Systems, Inc.
  • Page 82 Once the file has been generated, browse to the USB mass storage device and select Save . Select OK . Printing Your Creation Refer to the section titled for information about printing from a USB mass storage device . 3D Systems, Inc.

  • Page 83: Operation Procedures

    APPLYING CUBE GLUE Cube Glue contains water-soluble glue that adheres the part to the print pad . It is important that glue is applied to the print pad before starting any print to ensure that the creation does not move during the printing process .

  • Page 84: Replacing A Material Cartridge

    CHANGE CARTRIDGE . Select the material cartridge to change . NOTE: This procedure illustrates changing the right cartridge . The same concept applies to the left side . NOTE: The print jet will begin to heat . 3D Systems, Inc.
  • Page 85 . Mount the new cartridge to the right side of the printer . Select the checkmark continue . NOTE: Ensure the print jet tube is tucked under the top of the printer cover . 3D Systems, Inc.

  • Page 86: Setting Up A Wireless Connection

    SETTING UP A WIRELESS CONNECTION Wireless connections can be made with a Wi-Fi network or an ad hoc network . Setting Up A Wi-Fi Connection Select SETUP . Navigate to the Network screen and select WIFI . 3D Systems, Inc.
  • Page 87 NOTE: If your network requires a password, use the navigation arrows to browse to the characters that make up your password and select them . Select the checkmark to continue . NOTE: The printer will attempt to connect to the network . 3D Systems, Inc.

  • Page 88: Connect To An Ad Hoc Network

    . An ad hoc network is deleted when the user has disconnected from it or is out of range of other devices on the network unless it has been made a permanent network . Select SETUP . 3D Systems, Inc.
  • Page 89 Set up a new connection or network . 11 . Select Set up a wireless ad hoc (computer-to-computer) network . 12 . Select 13 . Select Next . 14 . Follow the steps in the wizard . 3D Systems, Inc.

  • Page 90: Cube Maintenance

    Waste material from the printing process can accumulate inside the printer . Using a slightly damp, lint-free cloth, wipe the interior of the Cube, including the print pad and anywhere else you might find pieces of plastic waste material. Print material can also collect around the belt area on the left side of the printer .

  • Page 91: Replacing The Jet Wipers

    . Select the checkmark continue . NOTE: If you have replaced the jet wiper, select the checkmark reset the printer count . Press SKIP to be reminded later . Procedure Remove the purge bin assemblies from the printer . 3D Systems, Inc.
  • Page 92 Install the new jet wiper onto the purge bin and reinstall the purge bin assembly into the printer . NOTE: Ensure the jet wiper is fully seated before reinstalling the purge bin assembly . checkmark Select the to confirm the replacement of the jet wiper. 3D Systems, Inc.

  • Page 93: Print Pad Calibration

    NOTE: The Auto Level procedure will begin . Once the Auto Level procedure has completed, select the checkmark to verify the Z-Gap (Step 8) . If the print pad is out of range, continue with the procedure . 3D Systems, Inc.
  • Page 94 When prompted, tighten the lock screw enough to ensure the adjustment knob checkmark does not easily turn . Select the to continue . Caution: Do not over-tighten the lock screw . This can damage the adjustment knob and void the manufacturer’s warranty. 3D Systems, Inc.
  • Page 95 NOTE: If Auto Gap is still not successful, select MANUAL GAP ADJUSTMENT . Refer to the section titled Manual Gap Adjustment for more information . Once the Manual Gap Adjustment procedure has been performed, note the final reading for future reference. 3D Systems, Inc.

  • Page 96: Gap Verification

    The bottom of the first layer will appear very smooth and shiny with almost no visible lines. NOTE: If the bottom of the part appears shiny, make sure all glue has been removed and then reinspect it . Caution: Damage to the print pad can occur if the gap is too narrow . 3D Systems, Inc.

  • Page 97: Manual Gap Adjustment

    Caution: Exercise caution to prevent the print jet from pressing into the print pad . Once you feel a slight resistance in the Gap Gauge as it moves between the print pad and the left print jet, the gap is correct . 3D Systems, Inc.

  • Page 98: Print Pad Maintenance

    NOTE: It is most important to lightly sand all shiny areas of the print pad so the print pad surface appears matte in texture . Clean and dry the print pad thoroughly . Reinstall the print pad . Perform the Auto Level and Auto Gap procedures . 3D Systems, Inc.

  • Page 99: Printer Calibration

    5.23. The final adjustment value should be close to the target value but does not need to be exact . Insert the gap gauge between the print pad (A) and the left print jet nozzle (B) . NOTE: The left print jet is print jet 1 . 3D Systems, Inc.
  • Page 100 NOTE: This value will need to be used again in this procedure . NOTE: The printer will display a value for CAL 2: . Select the checkmark to save the values . Navigate to the Printer Calibration screen and select CALIBRATE . Select Auto Gap . 3D Systems, Inc.
  • Page 101 Clean the print pad thoroughly removing all glue and debris . Select the checkmark to continue . NOTE: The surface of the print pad must be completely clean . NOTE: The Auto Level procedure will begin . 3D Systems, Inc.
  • Page 102 . The lock screw for adjustment knob A can be accessed from behind the printer . Follow the instructions on the touchscreen display . Once the adjustments have checkmark been made, select the to continue . 3D Systems, Inc.
  • Page 103 NOTE: If Auto Gap is still not successful, select MANUAL GAP ADJUSTMENT . Refer to the section titled Manual Gap Adjustment for more information . Once the Manual Gap Adjustment procedure has been performed, note the final reading for future reference. 3D Systems, Inc.
  • Page 104 Using the arrows, navigate to the file name of the calibration file. Select PRINT . NOTE: The file name will appear at the top of the display. Apply two thin layers of Cube Glue to the center of the print pad . Select the checkmark to continue .
  • Page 105 Once the printer has finished printing, select the checkmark to continue . NOTE: Once the print has completed, the print jets will begin to cool . CAUTION: Do not touch the print jets until they have cooled to room temperature . 3D Systems, Inc.
  • Page 106 The bottom of the first layer will appear very smooth and shiny with almost no visible lines. NOTE: If the bottom of the part appears shiny, make sure all glue has been removed and then reinspect it . 3D Systems, Inc.

  • Page 107: Test Print

    . Apply two thin layers of Cube Glue to the print pad . Select the checkmark to continue . NOTE: Apply enough glue to cover a square area of 5” (15 cm) .

  • Page 108: Cube Name

    . CUBE NAME Cube Name allows you to change the name of your printer . Select CUBE NAME . Enter a name for your printer . Scroll through the characters by pressing the arrow symbols on each side of the screen .

  • Page 109: Recovering The Cartridge

    NOTE: If you do not have the door on your cartridge and need to recover it, please contact Cubify Support . Carefully open the cartridge door and remove it from the cartridge . Select SETUP . Navigate to the Print Jet Calibration screen and select PURGE JETS . 3D Systems, Inc.
  • Page 110 Continue to push the print material upward until the print jet begins purging . NOTE: Once the print jet reached the operating temperature, it will begin to purge . NOTE: After purging, the print jets will cool down . 3D Systems, Inc.
  • Page 111 Insert the top of the cartridge door into the cartridge and then secure it in the closed position . NOTE: As the print material is fed into the print jet, the sleeve will move back into position . 3D Systems, Inc.

  • Page 112: Updating The Cube Firmware

    UPDATING THE CUBE FIRMWARE The printer firmware can either be updated via wireless connection or by using a USB mass storage device. NOTE: Whenever a firmware update is performed, you must perform the Auto Level and Auto Gap procedures. Updating Firmware Using Wi-Fi Select SETUP .
  • Page 113 NOTE: If no new firmware is available, select the checkmark continue . NOTE: If the firmware download fails, select RETRY to start the download again . Select CANCEL if you do not want to update the firmware. 3D Systems, Inc.
  • Page 114 . NOTE: It may take a minute for the display to turn on . Perform the Auto Level and Auto Gap procedures . NOTE: For more information, refer to the section titled Print Pad Calibration . 3D Systems, Inc.

  • Page 115: Updating Firmware Using Usb

    USB mass storage device. Select SETUP . Navigate to the System 3 screen and select FIRMWARE . Select KEY . Insert the USB mass storage device into the printer and select the checkmark continue . 3D Systems, Inc.
  • Page 116 NOTE: The firmware will begin to install. The blue bar is a progress indicator . NOTE: The installation could take a few minutes . WARNING: DO NOT POWER OFF OR DISCONNECT THE PRINTER FROM UTILITY POWER DURING THE UPDATE PROCESS . 3D Systems, Inc.

  • Page 117: Repacking The Printer

    Securely repack all of the accessories into the accessories box . Place the accessories box inside the original printer box . NOTE: Refer to the contents list in the section titled Unpacking and Setting Up Your Cube . 3D Systems, Inc.
  • Page 118 NOTE: The top insert is designed to keep the sides of the lower insert pressed outward . Place the printer in the protective bag and then place it in the lower foam support in the box . 3D Systems, Inc.

  • Page 119: Contacting Support

    Close the box and install the clips in the cutouts on top of the box . Place the printer box into the outer box and seal the outer box . CONTACTING SUPPORT Support for the Cube is available at cubifysupport@cubify .com . 3D Systems, Inc.

  • Page 120: Cubify Sustainability Program

    CUBIFY SUSTAINABILITY PROGRAM By its very nature 3D printing is a sustainable technology empowering 3D Systems’ printers to produce affordable products one layer at a time using only the necessary amount of material required for each part with near zero waste in an energy efficient process.
