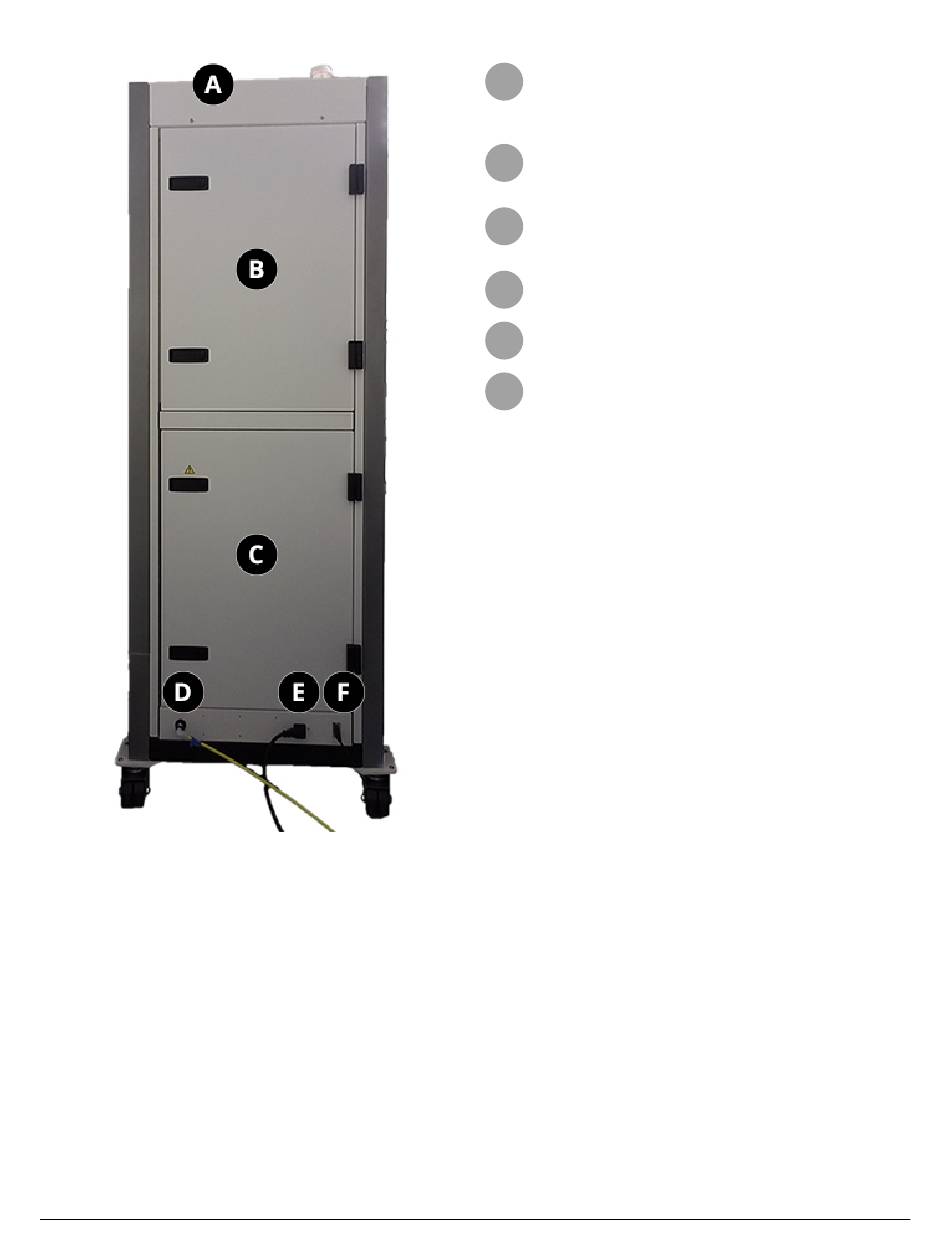

Printer Back
3D Systems, Inc.
External Ventilation Bracket - (not seen) Air flow
A
from the Printer is directed by an exhaust fan
through this bracket. You may connect this
bracket to external ventilation if desired.
Carbon Filter Access Door - This compartment
B
contains the carbon filter, as well as some
electrical cable routing.
Electronics Cabinet - This compartment houses
C
the electronics terminals. Only 3D Systems
Service should access this cabinet.
Compressed Air Inlet - The Printer hooks up to
D
your compressed air system via this inlet.
Power Inlet - Connect your Printer's power cable
E
female end into this inlet.
Ethernet Inlet - Connect the Printer to your
F
network via this inlet.
