3D Systems FIGURE 4 MODULAR User Manual page 117

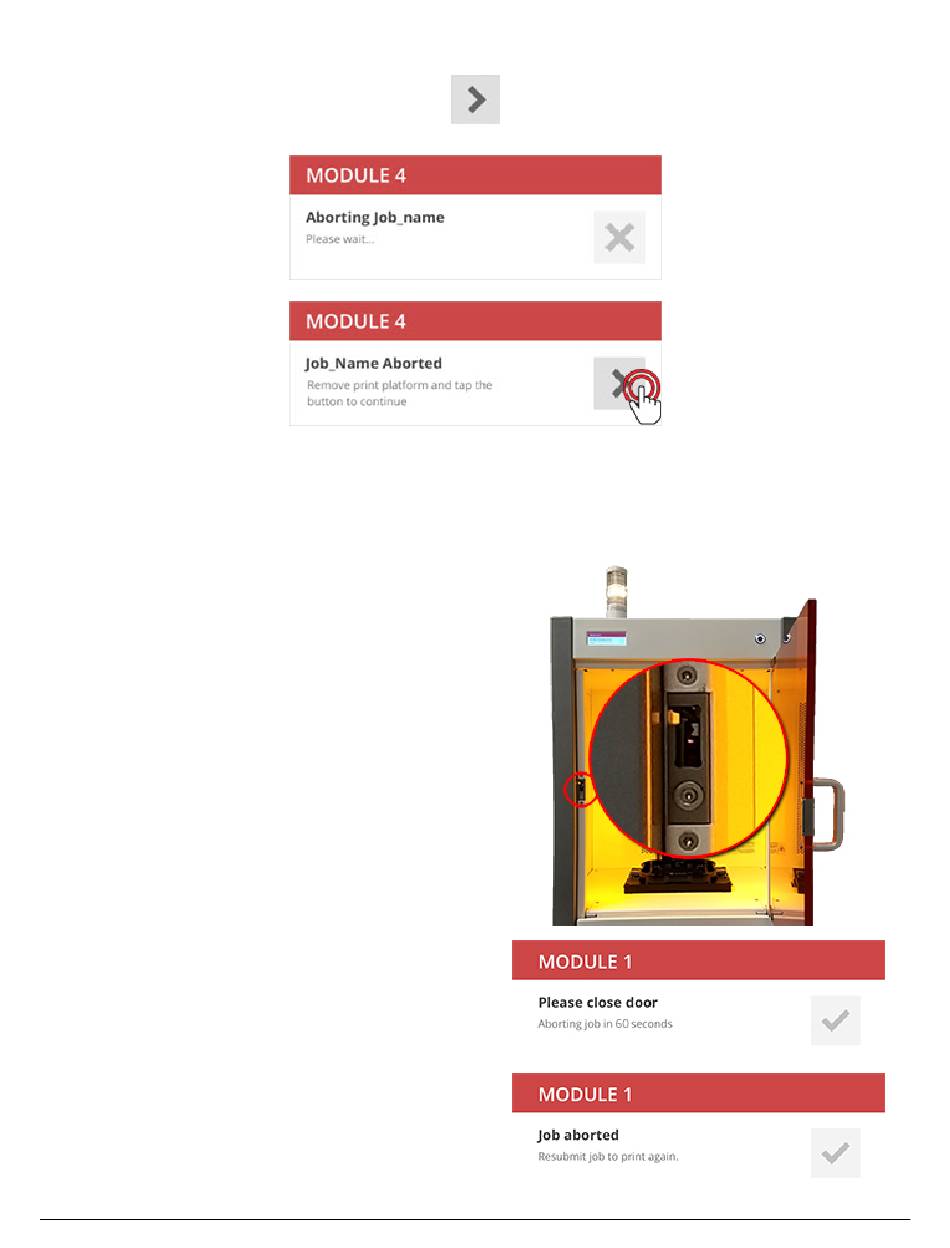

2. You will see the screens below on the Printer touch screen. After seeing the second screen, remove the print platform from
the machine and tap the
button.
→
3. Please see the section After Aborting
Tripping of Door-Closed Safety Switch
This type of abort will happen if upper printer door is opened during printing:
1. If you open the upper-build-chamber door during printing,
the front-door-closed sensor will no longer be satisfied.
2. You will see a warning screen on the Printer local display,
giving you 60 seconds to close the door before aborting the
print job. This is to prevent premature curing of the printed
part, and to protect the material in the resin tray from outside
UV light. You will also see the status light stack on the printer
flashing between green and yellow.
3. If you do not close the door within 60 seconds, the print
job will abort and the print platform will move the part to
the offload position. You will see the screen on Printer local
display change to the one at the right. The light stack on the
printer will flash red.
3D Systems, Inc.
for more information.
113 p/n 42-D116, Rev. K
