Install Resin Tray - 3D Systems FIGURE 4 MODULAR User Manual

1. Install the print platform onto the elevator arms, convex
side down, as seen at the right. The triangular groove
on each print-platform elevator guide lines up with the
cone-shaped pin on each elevator arm. Ensure the print
platform is fully seated and level. Magnets will secure the
platform in position. If you feel there is an issue with how
the print platform is sitting on the elevator arms, and you
have already verified the platform's flatness, do not print
on the printer. Contact 3D Systems Service.
Triangular grooves
1. Close the upper-build-chamber door. On the local display
of the Printer, mark the unit as "ready" by tapping the
icon.

6.5 Install Resin Tray

If you have not read the Resin Tray Guidelines
Each Printer comes with one resin tray. This section will demonstrate how to properly install the resin tray and tension it. This
section assumes that your 3D Systems installer has already installed your first resin tray; and you are replacing it with another.

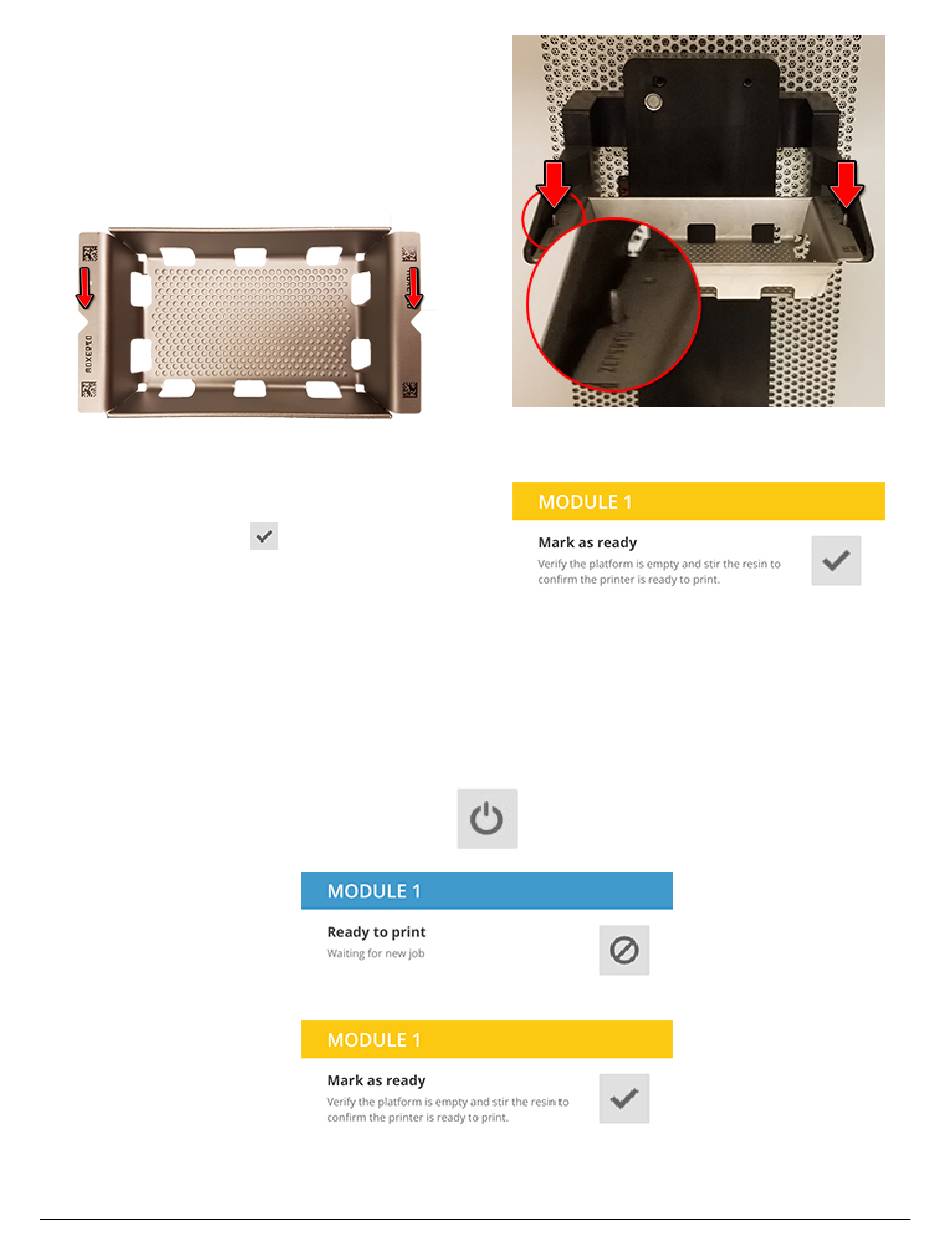

1. Disable the Printer so that it will not receive any new jobs until you re-enable it. On the Printer, tap the
button on the touch screen. This will change the unit from "ready to print" to "mark as ready," as in the screens below.
→
3D Systems, Inc.
, please read them before handling the resin tray.
