3D Systems FIGURE 4 MODULAR User Manual page 147

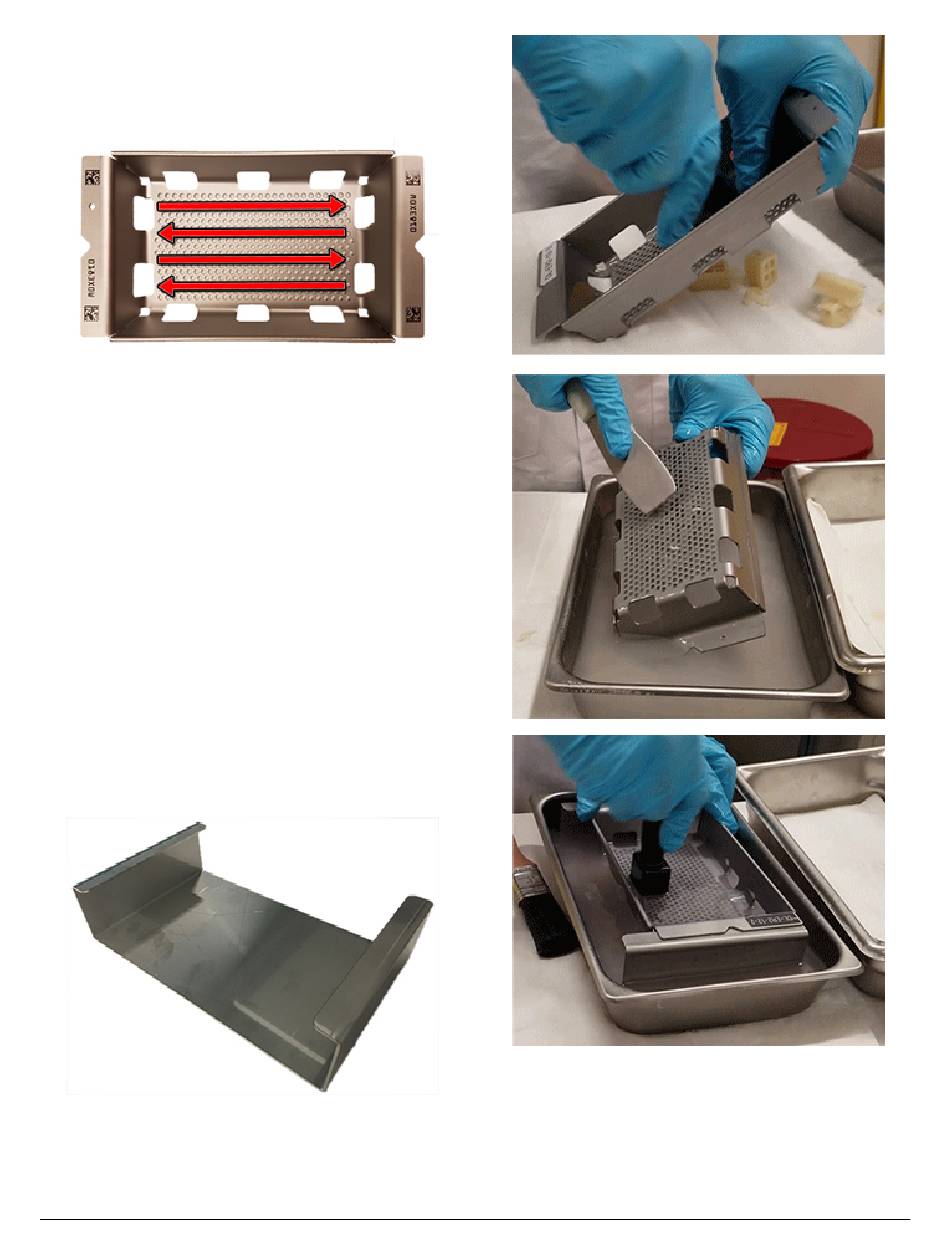

1. Use the punch tool to punch out any bits of supporting
architecture that may have been left inside the holes.
Punch in a column, going up an down until you have
run the punch tool through every hole. See the punching
pattern below for reference.
1. Use the Platform Scraper to scrape cured material off the
underside of the print platform. If you are running an
elastomeric material such as ELAST-BLK 10, please see
the section below, Special Consideration for Elastomeri
Materials .
1. Put the platform-cleaning fixture in a tub with IPA.
Place the print platform on the fixture, being sure it is
submerged in the solvent, and use the punch tool up and
down on the platform once more, as you did in Step 1.
Platform-cleaning fixture
3D Systems, Inc. 143 p/n 42-D116, Rev. K
