6.8 Running a Resin Tray Cleaning After a Failed Build

Any time you experience a failed build, there can possibly be partially cured material either floating in the resin tray or stuck to
the resin-tray film. Because of this, you must perform a Resin Tray Cleaning after a failed build, even if floating debris in the tray
is not obvious. The following steps describe the process.

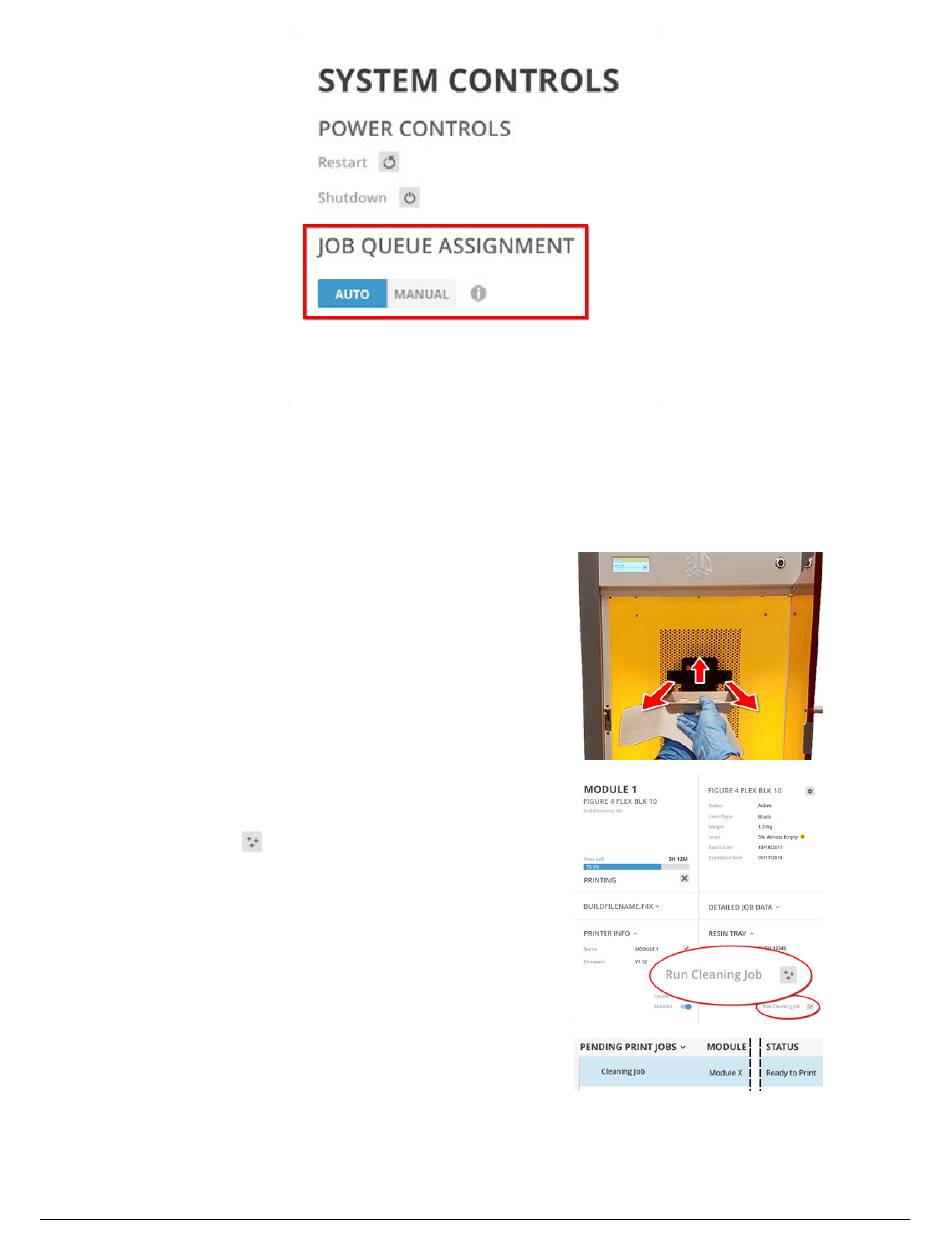

1. Remove the print platform from the machine. This print
does not need to adhere to the print platform and might
be difficult to remove from the platform.
2. On the Controller's Status tab, navigate to the Printer you
wish to run the cleaning job on and expand its menu. Open
the Resin-Tray menu and tap the
button to start the resin-tray-cleaning process.
3. If you navigate to the Queue tab, you will see that the
Cleaning Job has moved into the print queue.
