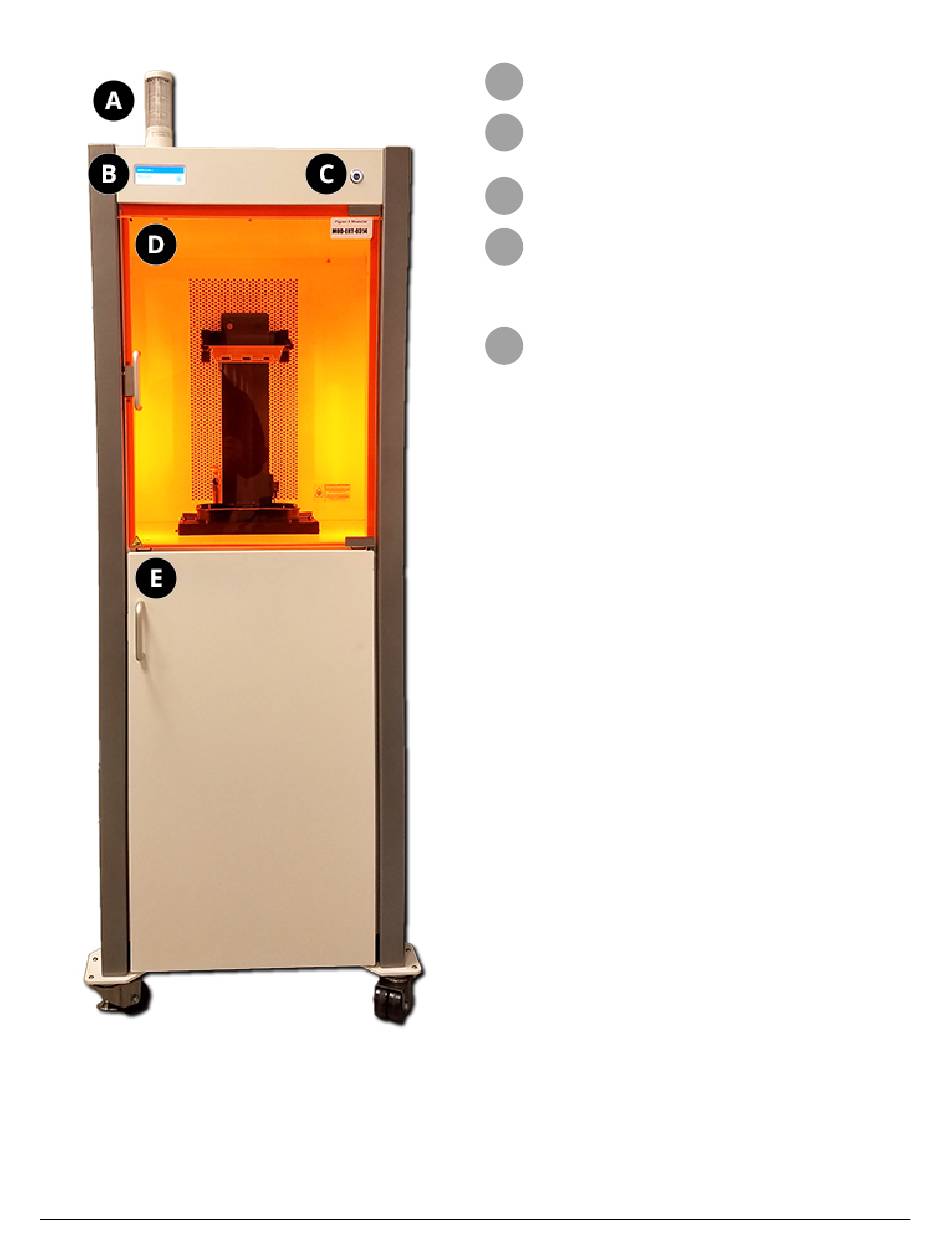

Printer Front
3D Systems, Inc.
Light Stack - Show the status of the Printer using
A
different, colored lights.
Local GUI - LCD touch screen that shows either
B
the current state of the Printer, or a single-button
action the operator may take on the Printer
Power Button - Switches the Printer on or off
C
Upper Build Chamber - Contains the upper parts
D
of the print engine, the print platform, and resin
tray. The upper-build-chamber door is made of
orange acrylic, so as to be transparent while not
allowing external UV light into the build chamber.
Lower Build Chamber - Contains the lower parts
E
of the print engine, as well as the Material
Delivery Module (MDM) and pneumatics system.
