Lower Build Chamber

Touch Screen and QR-Code Scanner
infocenter.3dsystems.com/figure4standalone/print/book/export/html/526
User Guide

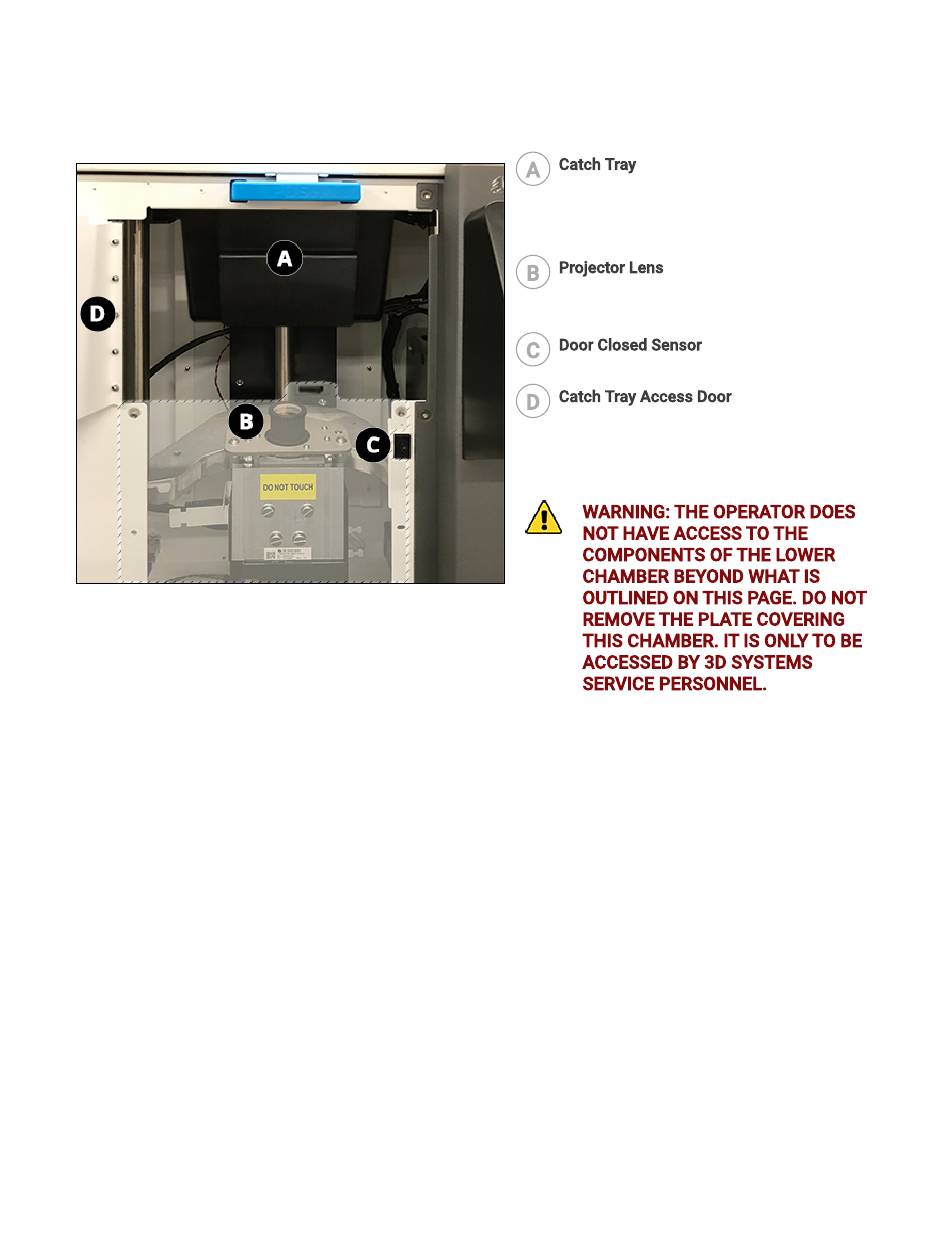

Catch Tray - Catches resin that might spill
A
over the resin tray, as well as resin that spills
through the resin-tray membrane if it gets
punctured.
Projector Lens - Radiation is projected
B
through this lens to the bottom layer of print
material
Door Closed Sensor
C
the lower-chamber door is closed
Catch Tray Access
D
remove/replace the catch tray and to remove
dust from the projector lens.
WARNING: THE OPERATOR DOES
NOT HAVE ACCESS TO THE
COMPONENTS OF THE LOWER
CHAMBER BEYOND WHAT IS
OUTLINED ON THIS PAGE. DO NOT
REMOVE THE PLATE COVERING
THIS CHAMBER. IT IS ONLY TO BE
ACCESSED BY 3D SYSTEMS
SERVICE PERSONNEL.
- Senses whether or not
Door - Open this door to
