Excitation

Single ended
excitation

Digital Universal Conditioner (DUC BC) Switches

Active guard
84
FlexTest GT Controller Connections
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

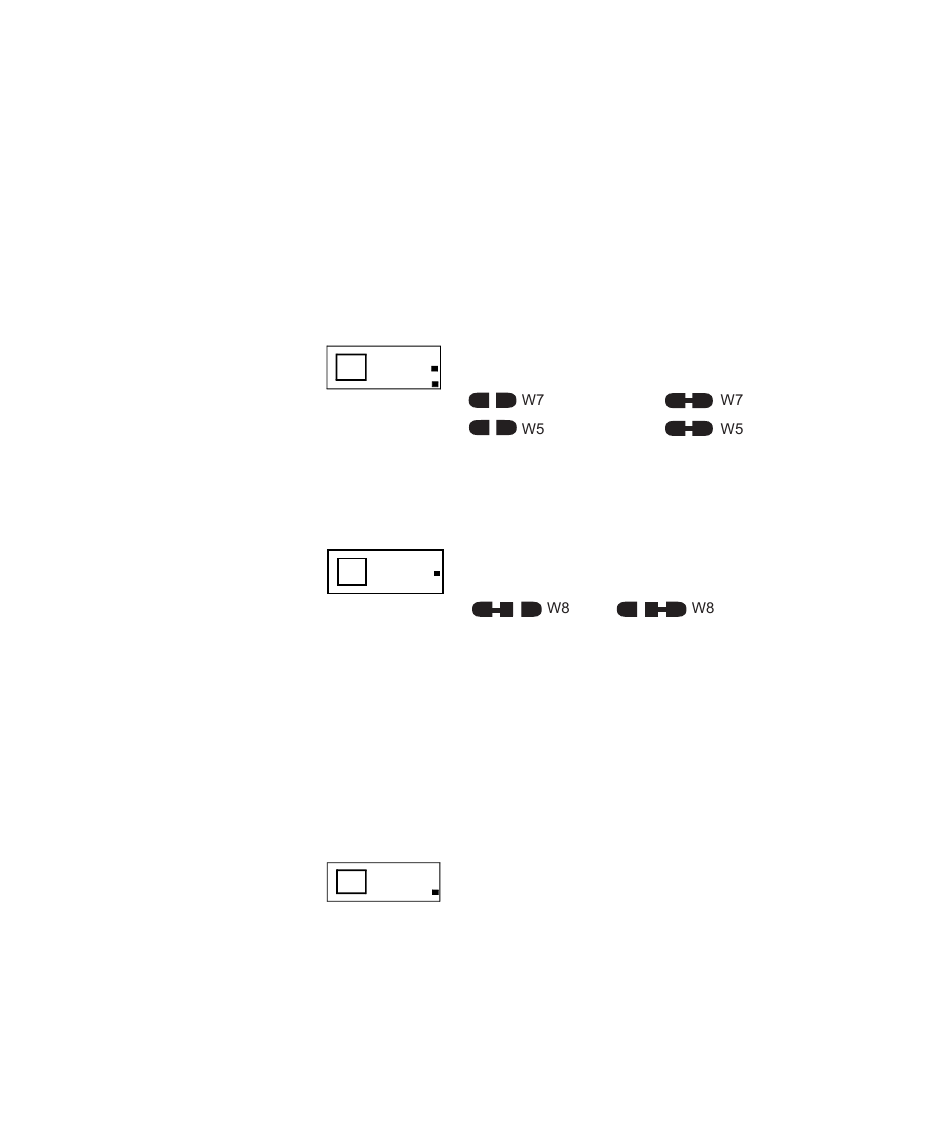

Jumpers W5 and W7 select the local (on board) or remote (through a
cable) excitation sensor connection.
• The local selection is used with 4-wire transducer connections.
• The remote selection is used with 8-wire transducer connections.
• Jumper W7 configures the + excitation signal.
• Jumper W5 configures the – excitation signal.
• Both jumpers need to be set for the same configuration.
Remote
Jumper W8 connects -EX to ground for situations requiring single-
ended excitation.
–EX = –EX
Default
The following switch settings are for the Model 493.21BC Digital
Universal Conditioner. The switches are labeled S1 1-8 and replace the
former solder pads. The following descriptions are from the 493.XX
Module Setup configuration drawing (PN 049-336-301).
Switch S1-8 enables or disables the guard connection to ground (GND)
for the sensor cable.
Enable
Short to Ground
S1-8 ON
Local
Default
–EX = GND
Disable
Cap to Ground
S1-8 OFF
Default
