Configuring the

Debug Serial Port

Cabling the
temperature
controller
Debug serial port
MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
4. Add a temperature control channel to the station configuration
file.
To use a FlexTest SE Controller with a temperature controller,
configure the Debug Serial Port as follows:
1. Access the 498.96 processor circuit card in the Controller's chassis.
2. Locate switch S3.
3. Set bit 8 to the off (open) position.

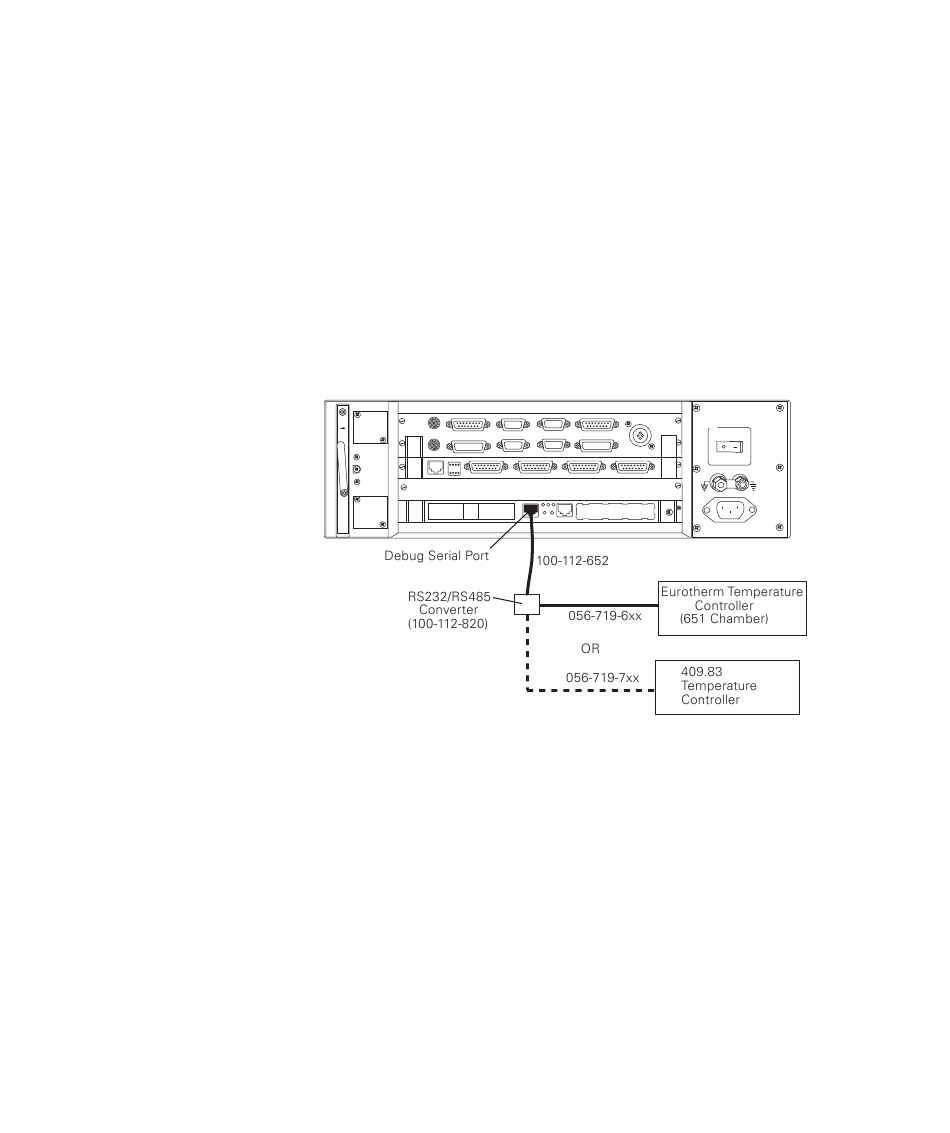

Two cables and an RS 232/RS 485 converter are required to connect
the FlexTest SE Controller to a temperature controller, as shown.
Two different cables can be used to connect the converter to the
temperature controller:
• For Eurotherm Temperature Controllers used with Series 651
chambers, use cable assembly PN 056-719-6xx.
217
