Valve Connections

Analog I/O Connections

A/D Connections
MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
See Valve Connections
See 252 servovalve connections
See 256 servovalve connections
See 257 valve connections
The Model 493.45 A/D and Model 493.46 D/A mezzanine cards are
installed in the Model 493.40 I/O Carrier front panel module.
Note The external analog source can be a standalone function generator,
another controller, or a computer controlled analog output.

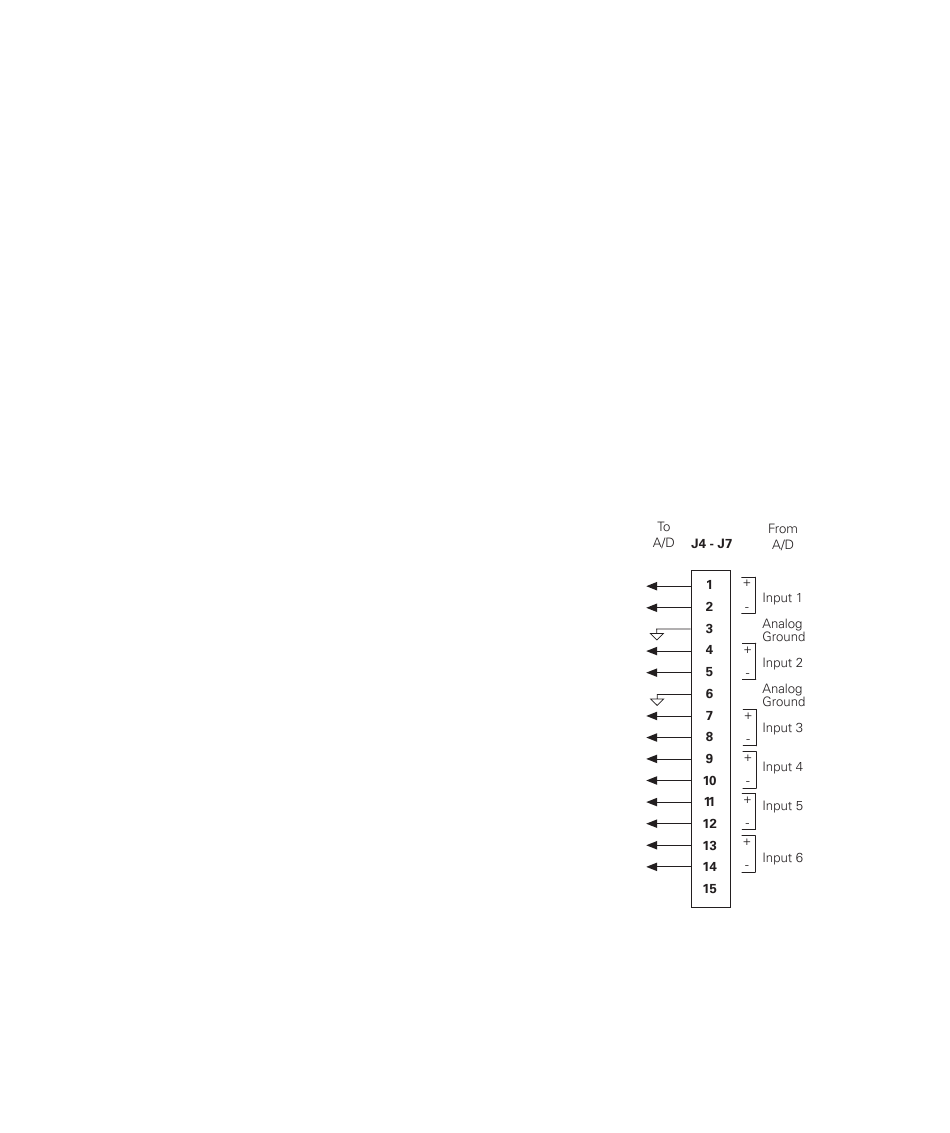

The analog-to-digital mezzanine cards accommodate up to six analog
input signals.
• Each A/D input signal must be
within ±10 volts.
• Use pin 3 or 6 to prevent problems
with floating grounds between
devices.
97.
98.
98.
99.
205
