Digital I/O Access Panel - MTS Systems FlexTest IIm Manual

Digital I/O
access panel
130
FlexTest GT Controller Connections
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

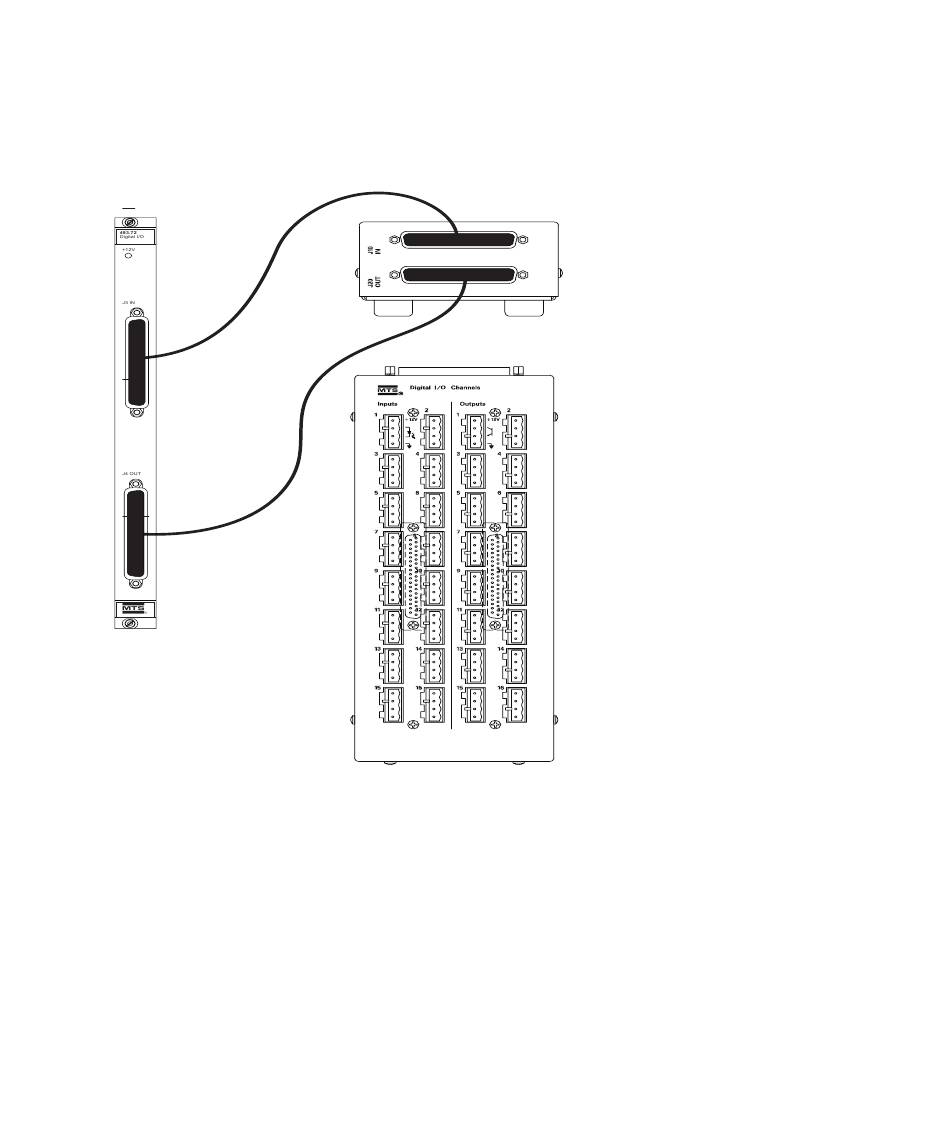

The digital inputs and outputs can be cabled to an optional digital I/O
access box. The box is a convenient way to wire digital sources and
destination to the Model 493.72 Digital I/O transition module.
Connectors J10 and J20 on the
side of the module and on top
of the module are the same.
The top connectors are used
when the module is configured
for use in a console.
MTS 793 Controller Hardware
