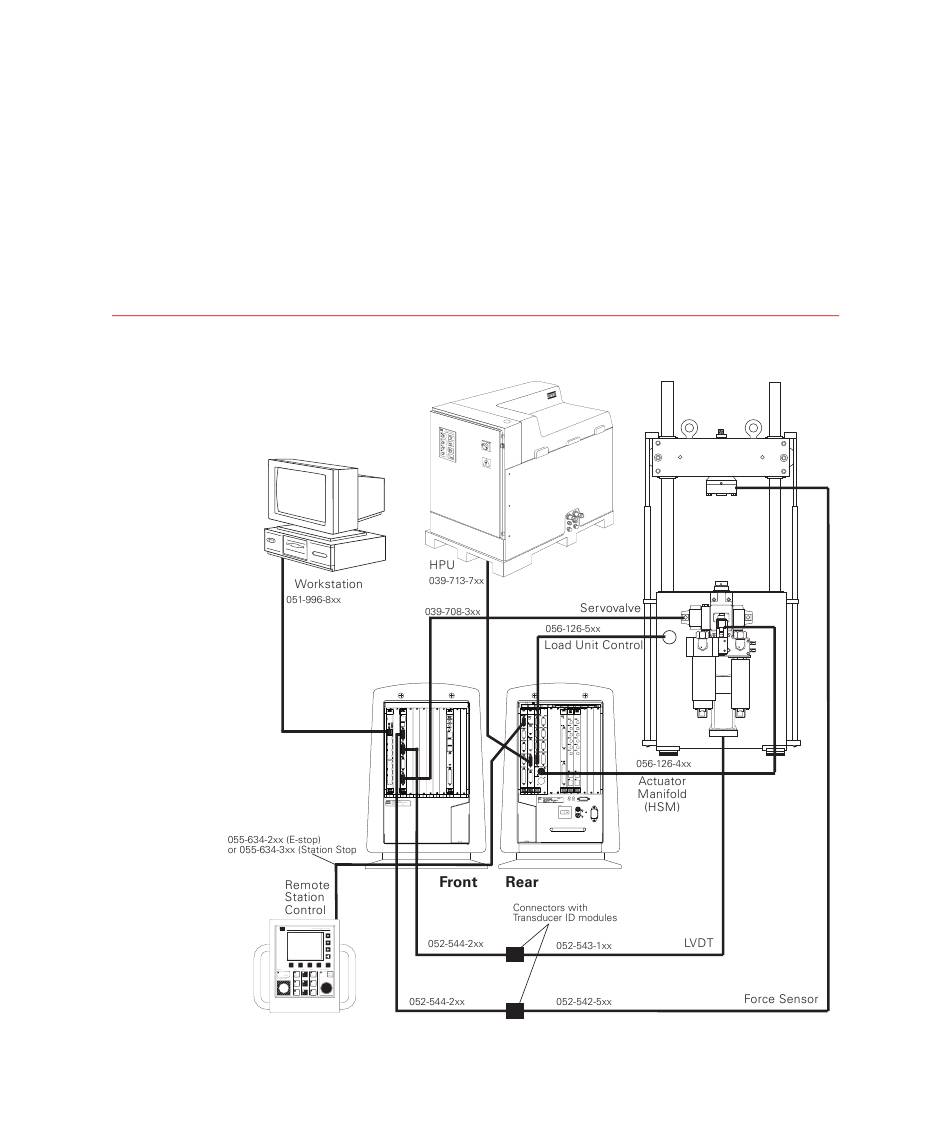

Typical Cabling
Typical cabling of a
FlexTest system
MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
•
Disconnect the overall shield from the metallized back shell at the
external device and add a capacitor (approximately 0.01 μf) to
one end of the cable between the shield and the metallized
backshell.
•
Disconnect the overall shield from the metallized back shell at the
external device.
For additional cables, see
"Cable Part Numbers"
on page 76.
