J52 Box Out

Last controller jumper

Cable specification
MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

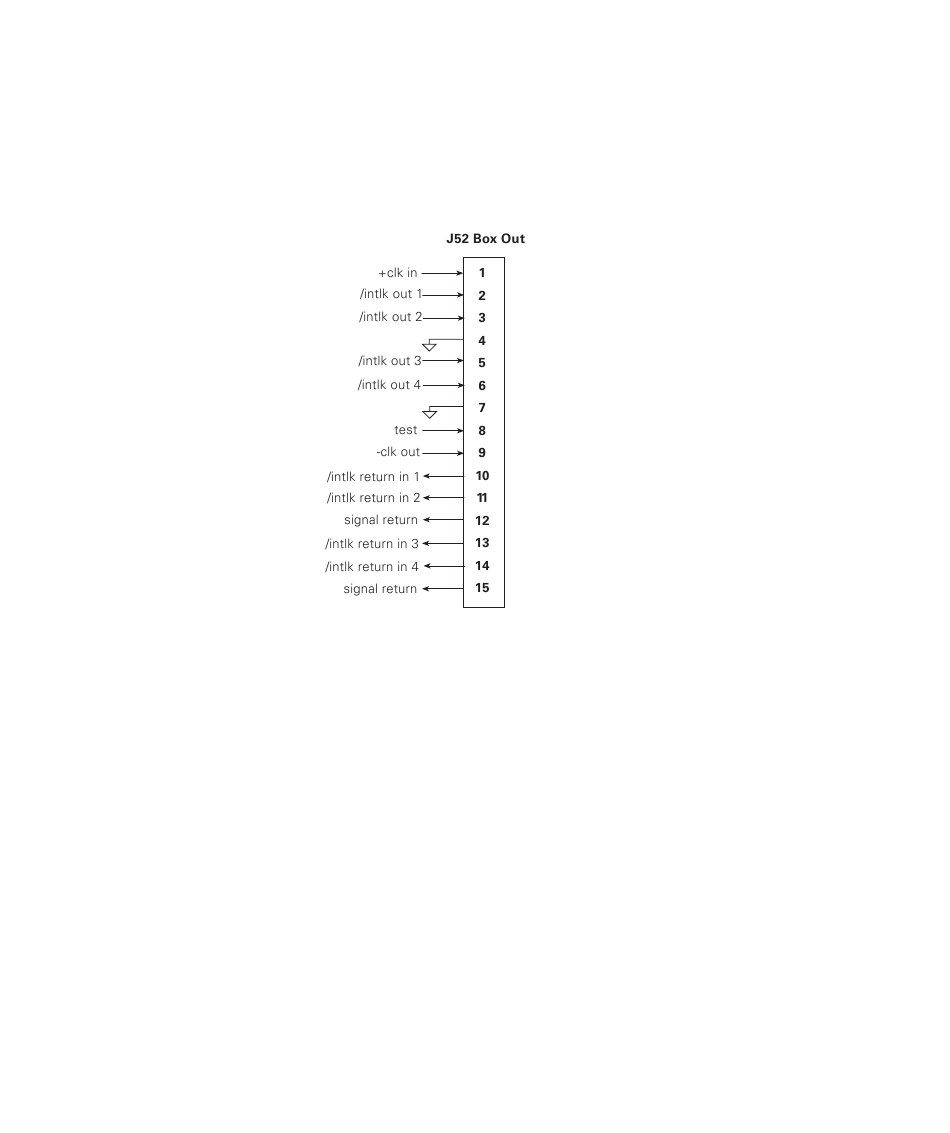

The J52 Box Out connector provides an interface for connecting
multiple MTS controller boxes together to allow sharing of station
interlock status and a master synchronization clock.
The last controller box in a chain must have a jumper plug (MTS PN
100-079-126) on its J52 Box Out connector. This jumper allows the
return of the composite station interlock signal for all controllers in the
chain to monitor.
Note If there is only one controller, a jumper is still required on its Box
Out connector.
Use MTS cable PN 056-534-1xx.
FlexTest GT Controller Connections 159
