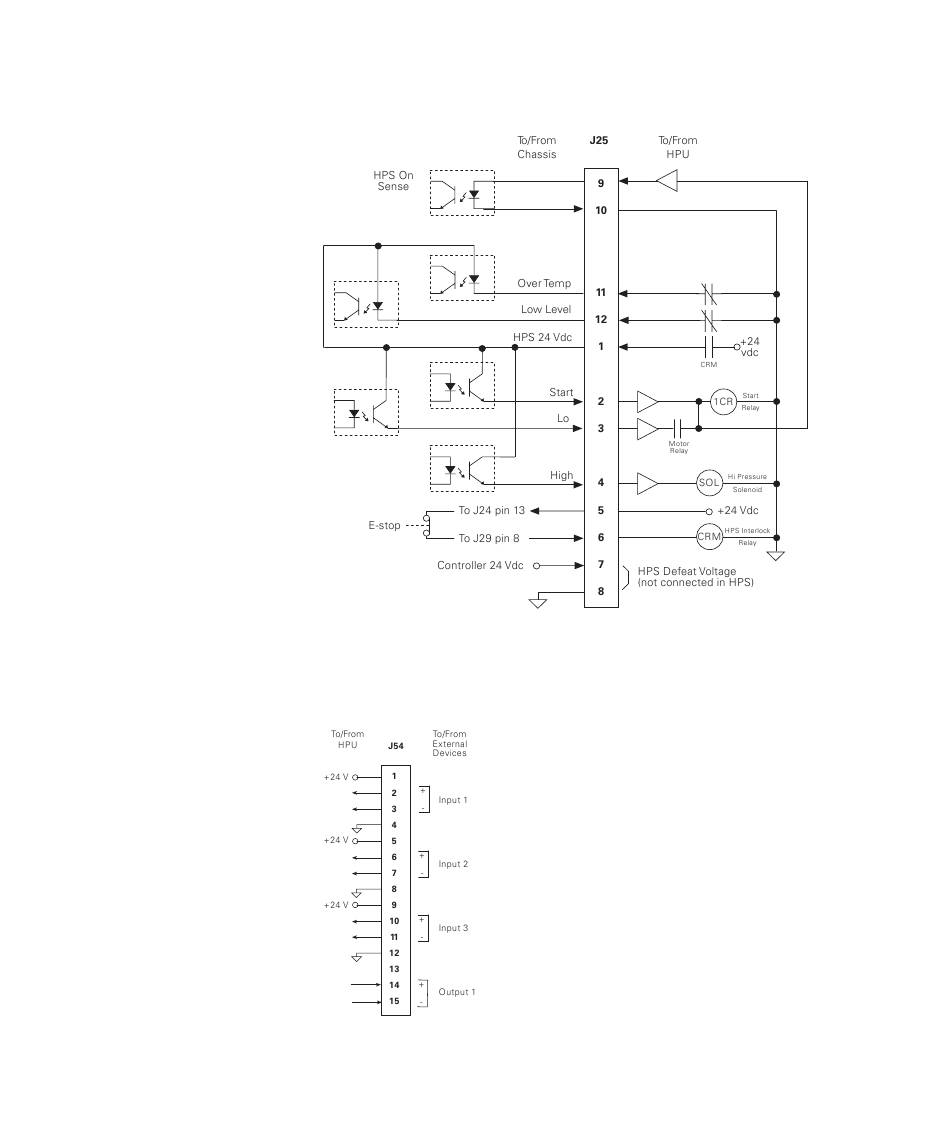

J25 Diagram

System I/O

Connector J54 Sys I/O provides three digital inputs and one digital
output. The inputs are connected to the high and low inputs of an
opto-isolator. The output is from the collector (+) and emitter (-). See
the "Digital I/O Connections" on page 126 for circuit drawings.
MTS 793 Controller Hardware FlexTest GT Controller Connections 119
