ADDA II Module I/O
Connections
MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

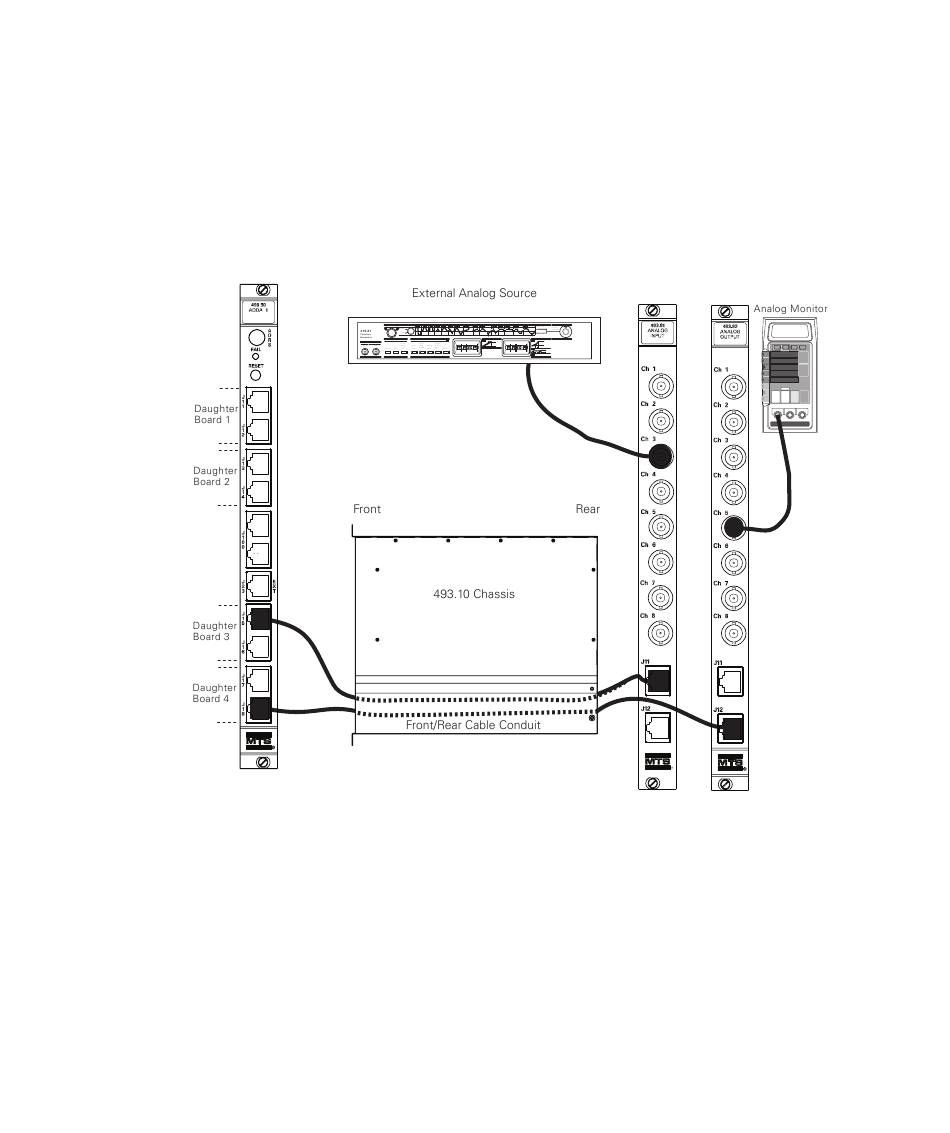

The Model 493.55 A/D, Model 493.57 DSPAD, and Model 493.56 D/A
mezzanine cards are installed in the Model 493.50 ADD II module
assembly. A connection from the front panel connector to a rear panel
BNC transition module allows easy access to the analog channels.
Note The external analog source can be a stand alone function generator,
another controller, or a computer controlled analog output.
FlexTest GT Controller Connections 113
