Model 493.02 Chassis Multiple Controller Interconnections; Compatible Controllers - MTS Systems FlexTest IIm Manual

Compatible Controllers

039-713-8XX (24 V DC)
039-714-6XX (115 V AC)
493.10
Chassis
J25
HPS
* For standard Model 493.07 Converter Box jumper setting only. Alternate settings are required for Model
436.11 and 413.05 controllers. See Appendix B: Model 493.07 Converter Box .

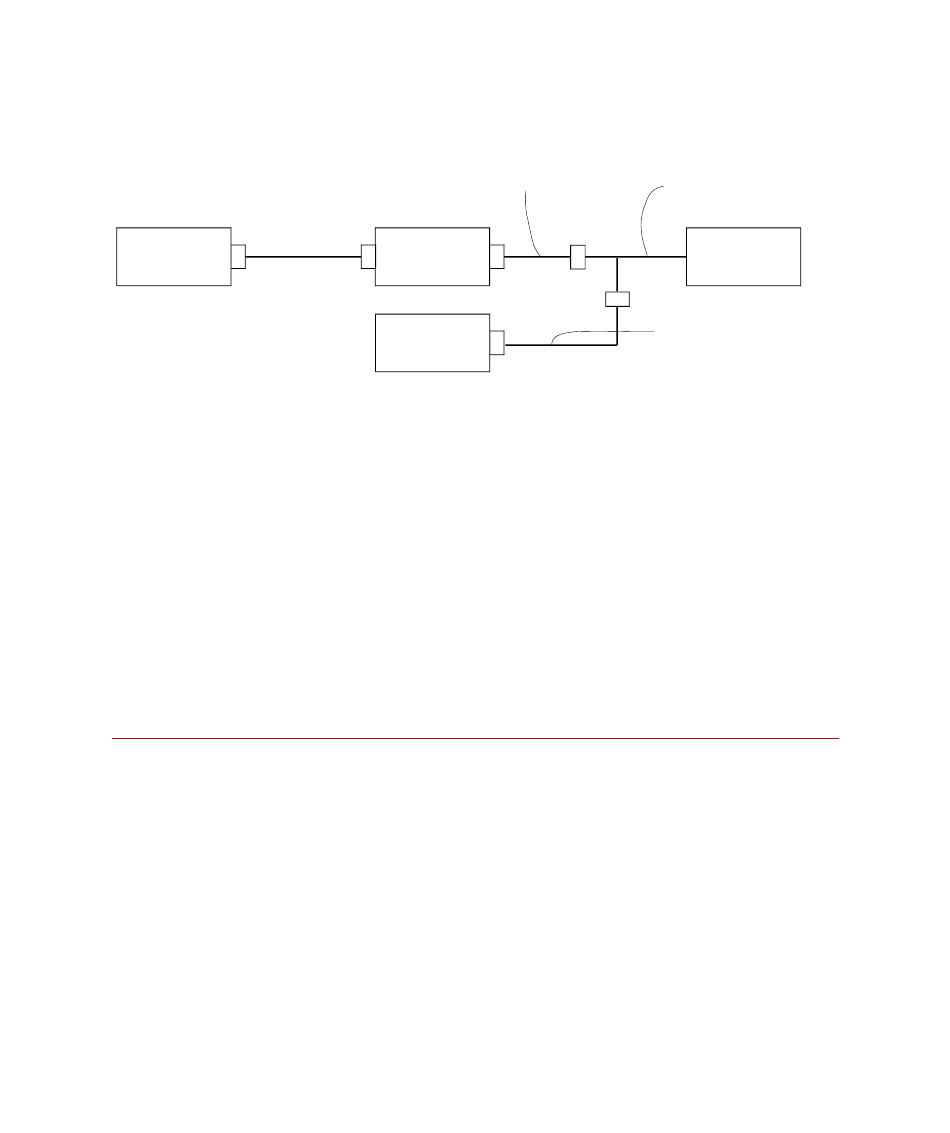

Model 493.02 Chassis Multiple Controller Interconnections

MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
493.07
Converter Box
J1
HPS
458* or
490.01*
497.05*
You can mix Model 493.07, 458, 490, and 497.05 Controllers directly on
the same HPU (without the use of an HPU isolation box).
You cannot mix Model 493.07, 458, 490, and/or 497.05 Controllers with
436, 413.05, or 413.8X Controllers unless you use an isolation box.
You can jumper the Model 493.07 Converter box so you can use it
directly with 436 and 413.05 Controllers. However, if you do this you
must use an isolation box if you attempt to use the Converter Box with
Model 458, 490, and 497.05 Controllers. See Appendix B,
493.07 Converter Box" on page 227.
FlexTest SE Controllers support the following hydraulic
interconnections for multiple controller configurations:
• Independent HSM control with no HPU
• Independent HSM control with a shared HPU
• Shared HSM with an HPU
• Shared HSM without HPU
• Independent HSM controlled with a shared HPU using first-on-
last-off
039-710-7XX (24 V DC) High-level Y cable
039-710-8XX (115 V AC) 005-407-801 (24 V DC)
005-401-801 (115 V AC)
J25
HPS
039-708-7XX (24 V DC)
039-708-8XX (115 V AC)
Hydraulic Configurations
HPU
"Model
223
