Workstation Connection

MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

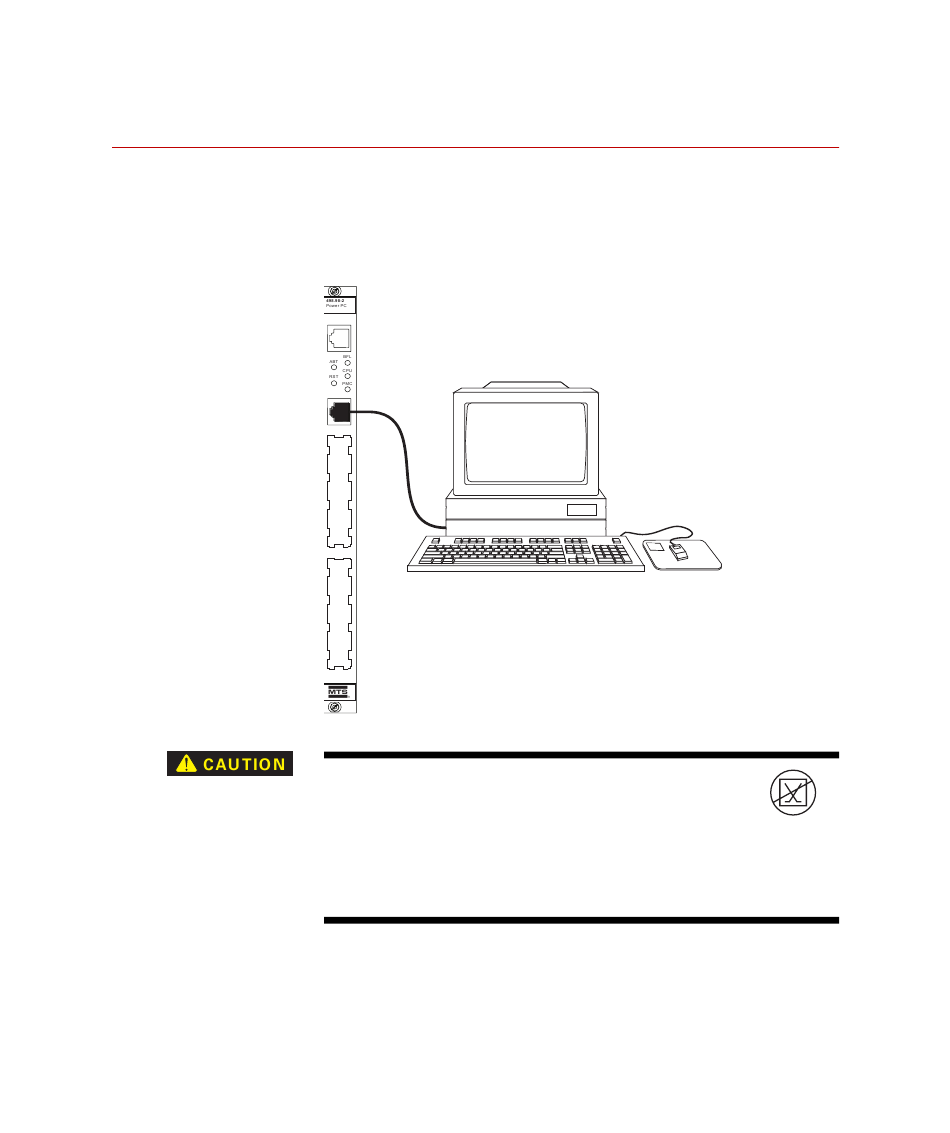

The workstation computer is connected to the Model 498.96 Processor
module installed in the VMEbus of the chassis. It is an Ethernet 10/100
Base-T connection. The workstation computer must have a dedicated
Ethernet compatible connector.
Note If your processor has more than one Ethernet 10/100
Base T connection, use the connection labeled LAN 1.
The symbol shown here indicates that you must not
connect telecommunications equipment to the
equipment showing this symbol.
Several modules have connectors that look similar to a phone connector.
Special cables are required. Installing telecommunications equipment cables
can cause equipment damage to the electrical components of the chassis or
to your telecommunications system.
FlexTest GT Controller Connections 131
