Accelerometer Connections

MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

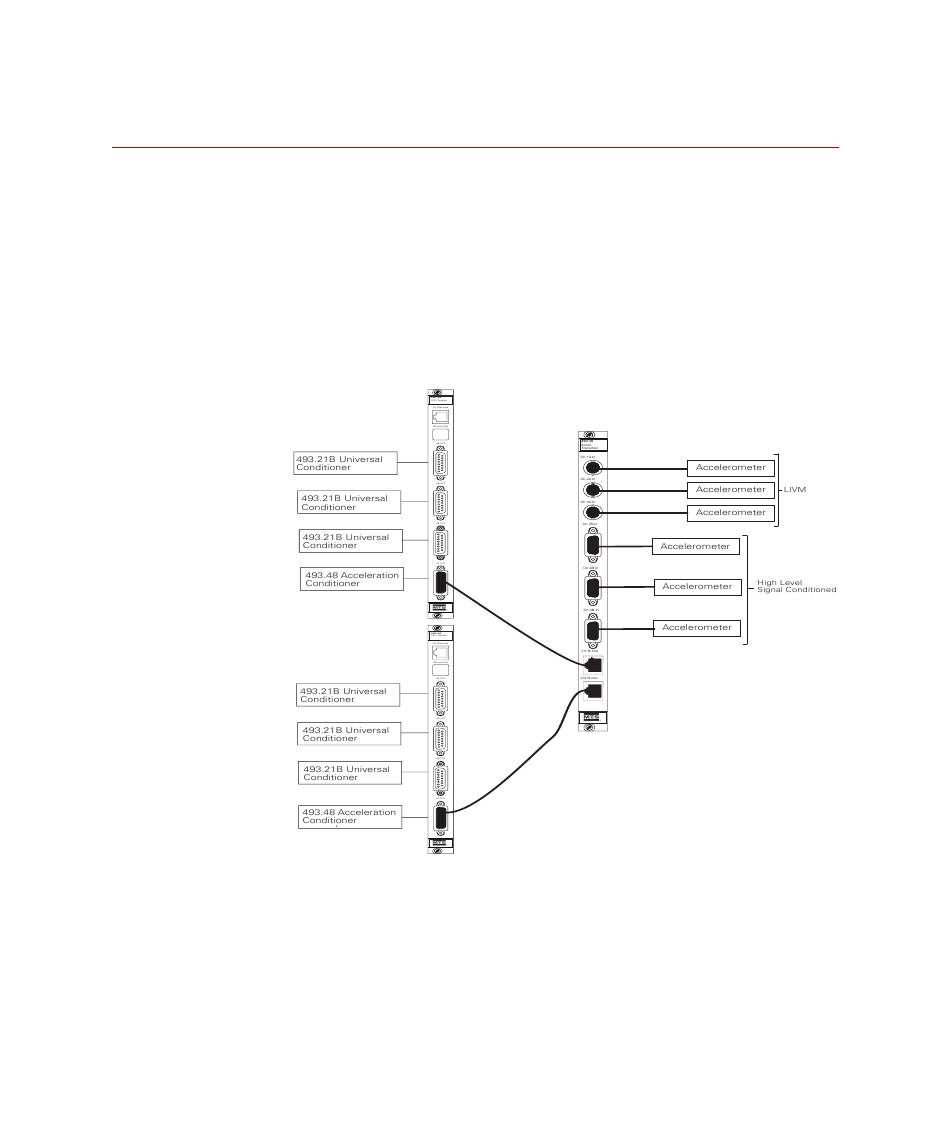

An accelerometer requires the Model 493.48 Acceleration mezzanine
card (installed in a Model 493.40 I/O Carrier module) and the Model
493.78 Accelerometer Transition Board.
• Each Model 493.48 Acceleration mezzanine card supports up to
three accelerometers.
• The transition board accommodates two types of accelerometers:
Low impedance Voltage Mode (LIVM) type accelerometers and
High Level Signal Conditioned type accelerometers.
FlexTest GT Controller Connections 107
