Independent HSM with HPU (FO-LO)

226
Hydraulic Configurations
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
• Select Slave HSM for Power Type on controllers connected to the
master controller.
Note This interconnect option is only available for controllers on the same
interlock.

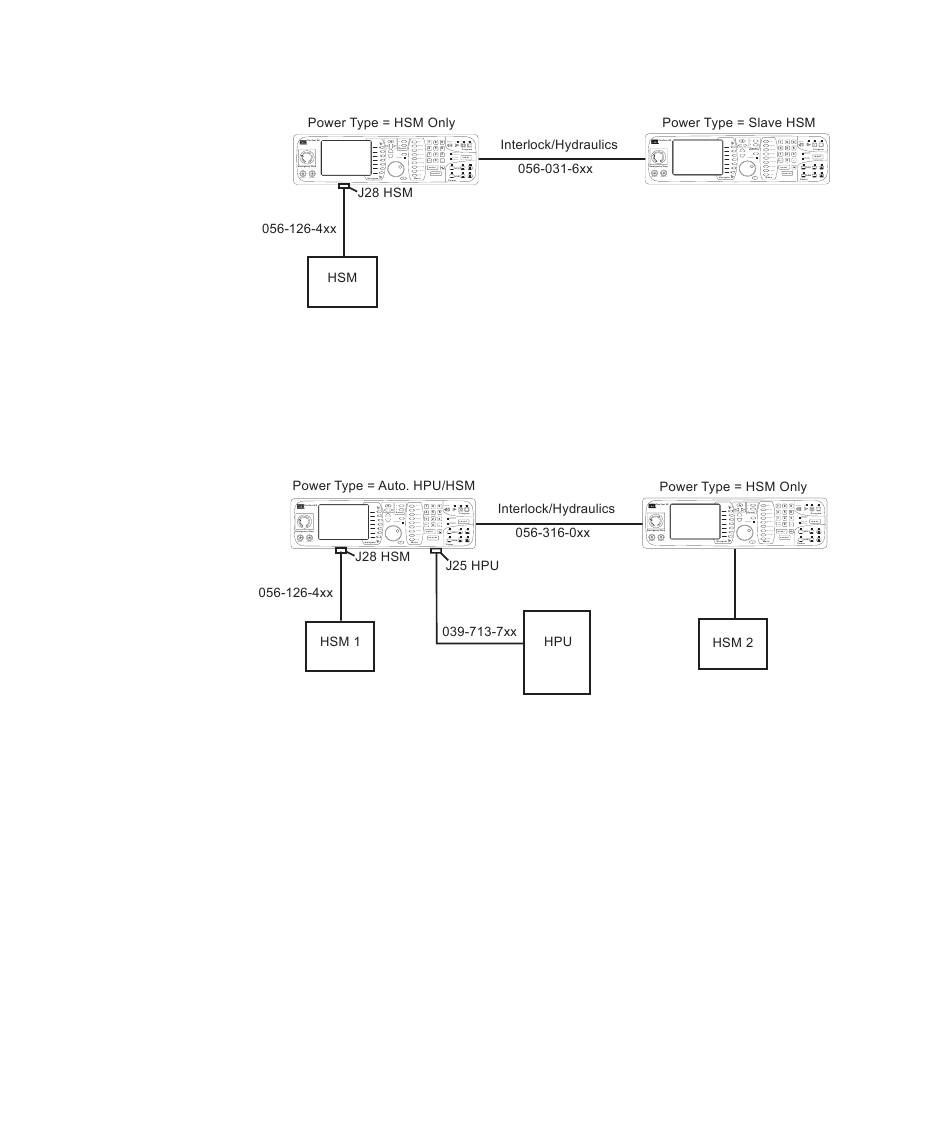

For this controller configuration:
• Two or more FlexTest SE Controllers are connected.
• An HSM is connected to each controller only.
• Select Auto. HPU/HSM for Power Type on the controller to which
both a HSM and HPU is connected.
Path: Config > Edit Hardware > Power Options > Power Type
> Auto. HPU/HSM
• Select HSM Only for Power Type on controllers with an
independent HSM, but no HPU.
Note The HPU can be connected to any controller in the interconnected
group of controllers.
