MTS Systems FlexTest IIm Manual page 190

Table of Contents

Advertisement

Transition modules on the rear panel of the 498
test processor chassis are used for analog
inputs and outputs.

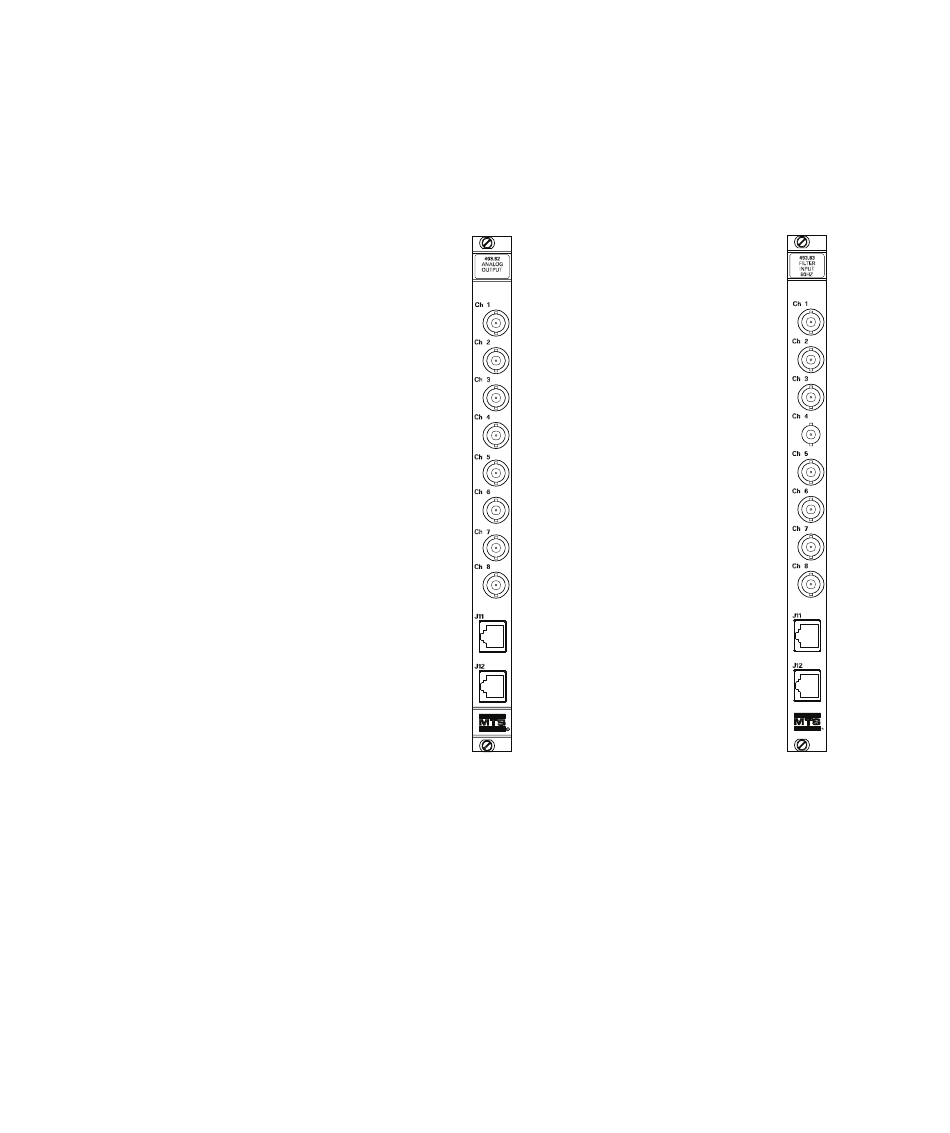

493.82 Analog Out
This module includes 8 BNC
connectors that provide analog
outputs from a Model 493.56 D/A
mezzanine card.
Eight analog outputs are available
with each D/A mezzanine card
installed on the Model 493.50
ADDA II module.
MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Transition Module Connections
493.83 Filtered Analog Input
This module includes 8 BNC
connectors that provide filtered
analog inputs to the Model
493.55 A/D mezzanine cards.
Eight analog inputs are
available with the each A/D
mezzanine card installed on
the Model 493.50 ADDA II
module.
FlexTest IIm Controller Connections
189
