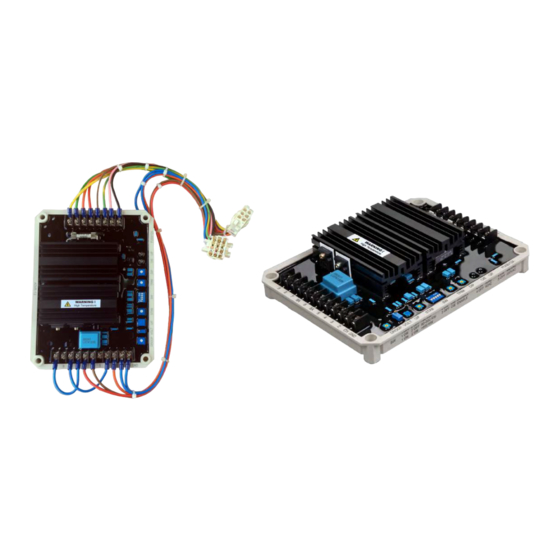

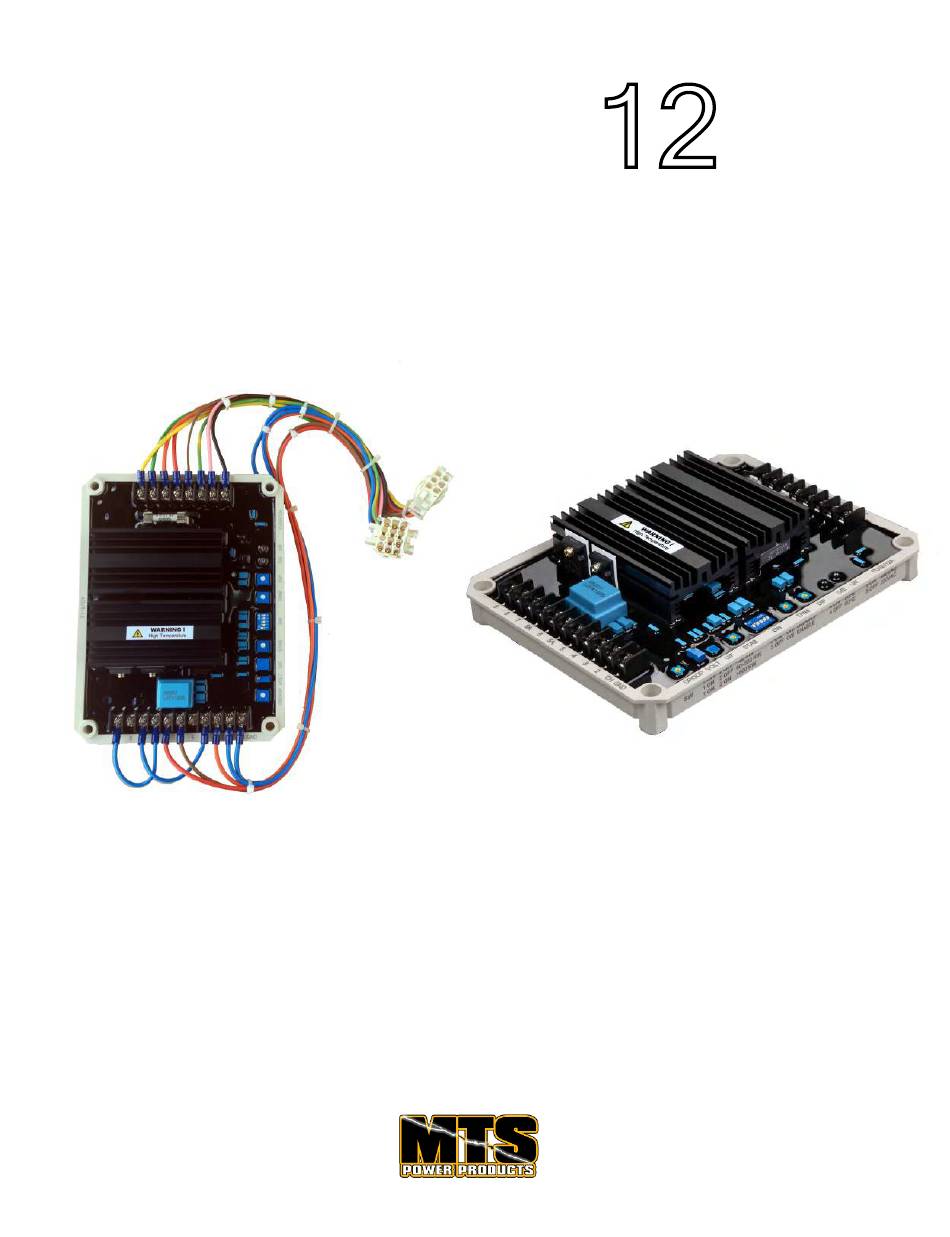

ADVR- 12
Hybrid Universal Analog
Digital Voltage Regulator
Operation Manual
Adapter plugs for Digital Regulator
Self Excited Automatic Voltage Regulator
For use in Brushless SHUNT, PMG and Auxiliary Winding
Basler* AVC63-12, AVC125-10, CATERPILLAR*
12B & K125-10B, Leroy Somer* 202-8634 regulators
*For reference purposes only and does not imply that any part listed
is the product of the manufacturer.
501 NW 27 Ave
4
Miami Florida 33142
305.634.1511
Advertisement
Related Manuals for MTS Systems ADVR-12
Summary of Contents for MTS Systems ADVR-12
- Page 1 ADVR- 12 Hybrid Universal Analog Digital Voltage Regulator Operation Manual Adapter plugs for Digital Regulator Self Excited Automatic Voltage Regulator For use in Brushless SHUNT, PMG and Auxiliary Winding Basler* AVC63-12, AVC125-10, CATERPILLAR* 12B & K125-10B, Leroy Somer* 202-8634 regulators *For reference purposes only and does not imply that any part listed is the product of the manufacturer.
-
Page 2: Specification
1. SUMMARY The ADVR-12 is a totally new hybrid 12 Amp to 520 volts was added, also new DIP & TRIM universal voltage regulator with a comparable adjustment compatible with many automatic footprint as the Basler* AVC63-12 and AVC125-10, paralleling and PF controllers in the market. The... - Page 3 If O/E is disabled, (DIP SW 3 to OFF position) the AVR does not shutdown the generator excitation ● If Stability is over adjusted, it can result in high output but only illuminate the O/E LED. voltage fluctuation when load is connected. ______________________________________________________________________________________ ADVR-12...
-
Page 4: Connection Terminal
24ohm the resistor should be 24 watt. ● Remove DC power input from exciter after 5 seconds. ● Reconnect wiring. ● Start up engine, and if the measured residual voltage is still below 6Vac, repeat step 1 and 2. ______________________________________________________________________________________ ADVR-12... - Page 5 Single Phase 28 & 30, 3 Phase 26, 28 & 30 Figure 4 PMG Figure 5 Voltage Adjustment Single Phase 28 & 30, 3 Phase 26, 28 & 30 Without External VR 4 & 7 Shorted With External VR (6a & 7) 4 & 7 Open ______________________________________________________________________________________ ADVR-12...
- Page 6 Figure 6 CT Input 5 & 6 for 1Amps, 5a & 6 for 5Amps ADVR-12 Testing Procedure : 1. Setup ADVR-12 as shown in Figure 7. and switch SW5 to OFF position. 2. Turn VOLT VR fully counterclockwise then connect to power. Lamp should be off at this time.
- Page 7 Almost all Cat generators even if they work at 480/277v are sensing at 240Volts So be careful how you set up Voltage sensing on the ADVR-12 SW -5 Use Jumper for 3 Phase sensing Open for single Phase sensing Connect 10k Ohm remote voltage adjust from 6a to 7 and remove bridge from 4 and 7.
- Page 8 Almost all Cat generators even if they work at 480/277v are sensing at 240Volts So be careful how you set up Voltage sensing on the ADVR-12 SW -5 Use Jumper for 3 Phase sensing Open for single Phase sensing Connect 10k Ohm remote voltage adjust from 6a to 7 and remove bridge from 4 and 7.
- Page 9 Remove Jumper from 6a to 9 for Single Phase sensing Connect 10k Ohm remote voltage adjust from 6a to 7 and remove bridge from 4 and 7. Keep bridge when using internal voltage adjust Terminals 2 & 3 are normally not used.
- Page 10 P12 = 12 Pin Plug P6 = 6 Pin Plug Set SW 1 & 2 to Proper Genset Size Set SW 3 to OFF Activate O/E -- ON Deactivate (when Paralleling) O/E Set SW 4 to OFF for 60 Hz ON for 50 Hz Set SW 5 to OFF Cat genset always sense at 220 V Adupter plugs for digital regulator...
