Before installing a Model 493.48 Acceleration Conditioner mezzanine
card in a Model 493.40 I/O Carrier module, specific jumpers must be
set. Jumper settings depend on the number and configuration of your
system accelerometers.

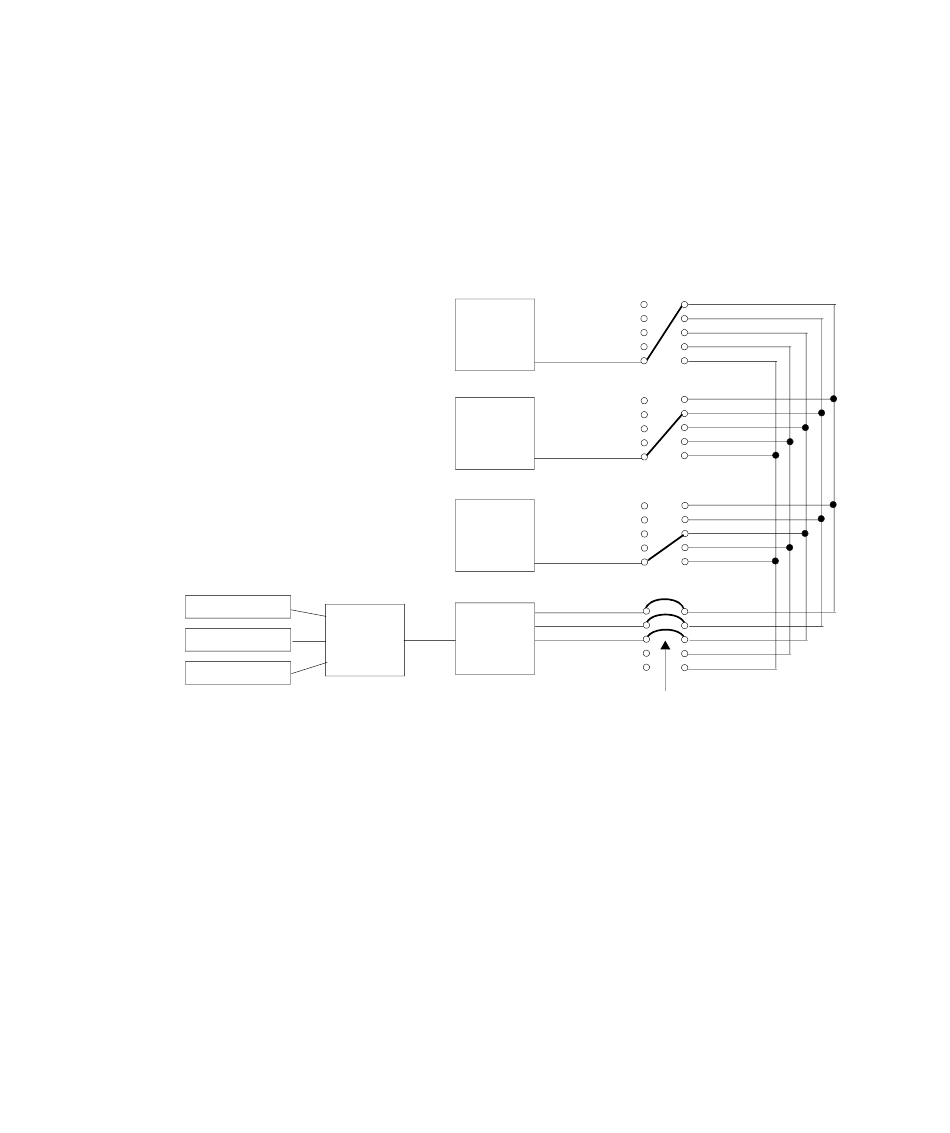

In the example shown below, the Acceleration Conditioner supports
three accelerometers. The indicated three jumpers must be set on the
I/O Carrier module
DUC
DUC
DUC
Accel
Accel
Daughter
Transition
Card
Analog Bus#1
X101
Analog Bus#2
X102
Analog Bus#3
X103
Analog Bus#4
X104
Analog Bus#5
X105
X201
X202
X203
X204
X205
X301
X302
X303
X304
X305
Ch 1 Accel Out
X401
Ch 2 Accel Out X402
Ch 3 Accel Out X403
X404
X405
Set these jumpers
MTS 793 Controller Hardware
