Multiple Controller Connections

About multiple
Controller networks
200
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Some characteristics of a multiple Controller network are as follows:
• Each Controller in the network provides control for one station
with up to two channels.
• A hub connects each Controller in the network to the supervising
PC.
• A single network may have a maximum of four stations
(regardless of the number of Controllers cabled to the hub).
• When used in a network, Controllers must be registered for
automation and operate in the automation mode.
• Each Controller in the network must have a unique ID and name.
For more information about setting up multiple controller networks for
FlexTest SE Controllers, see Appendix D, Using Multiple Automated
Controllers in the FlexTest SE User's Manual.

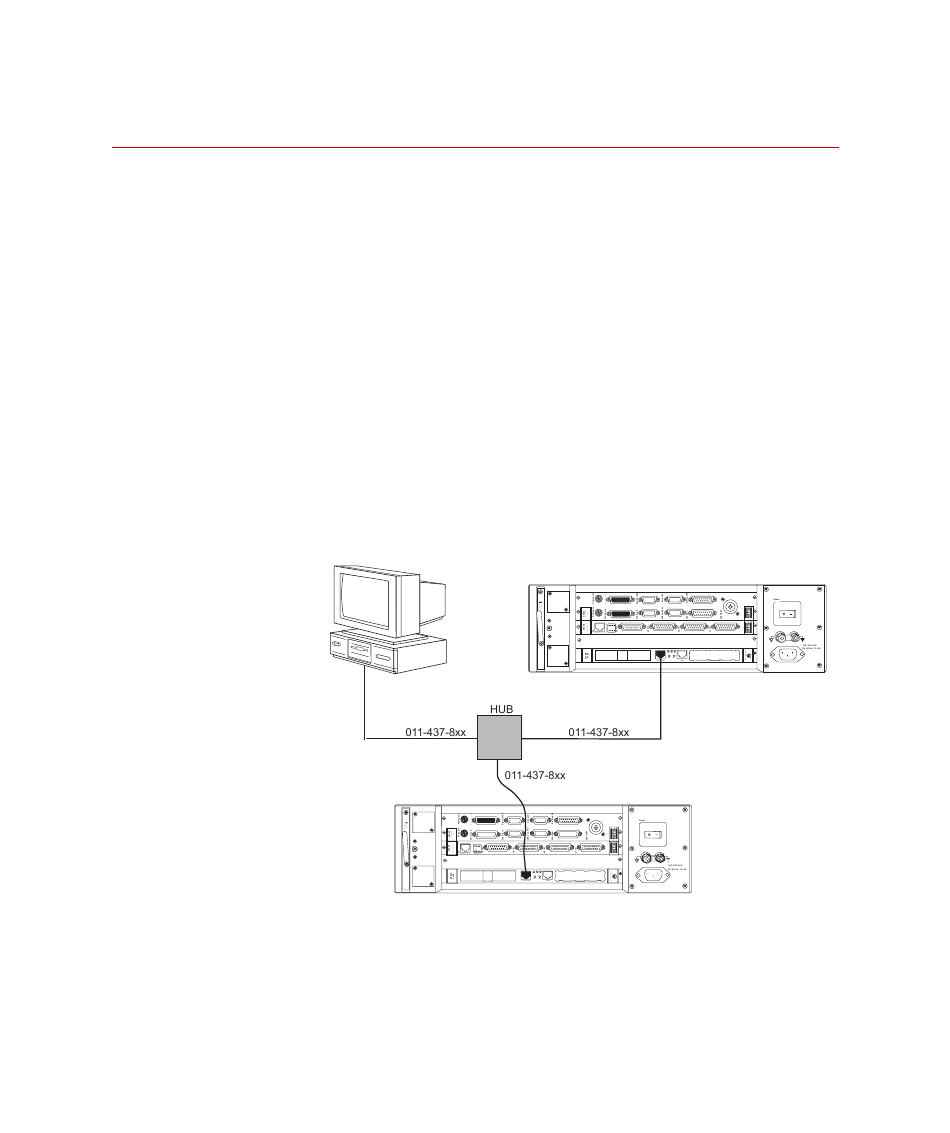

Typical multiple controller cabling
MTS 793 Controller Hardware
