How to Send Signals to External Readout Devices

154
FlexTest GT Controller Connections
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
1. Cable your controller to the readout device.
Cable your FlexTest IIm analog output connector to the readout
device. Analog I/O connectors are located on the rear of the test

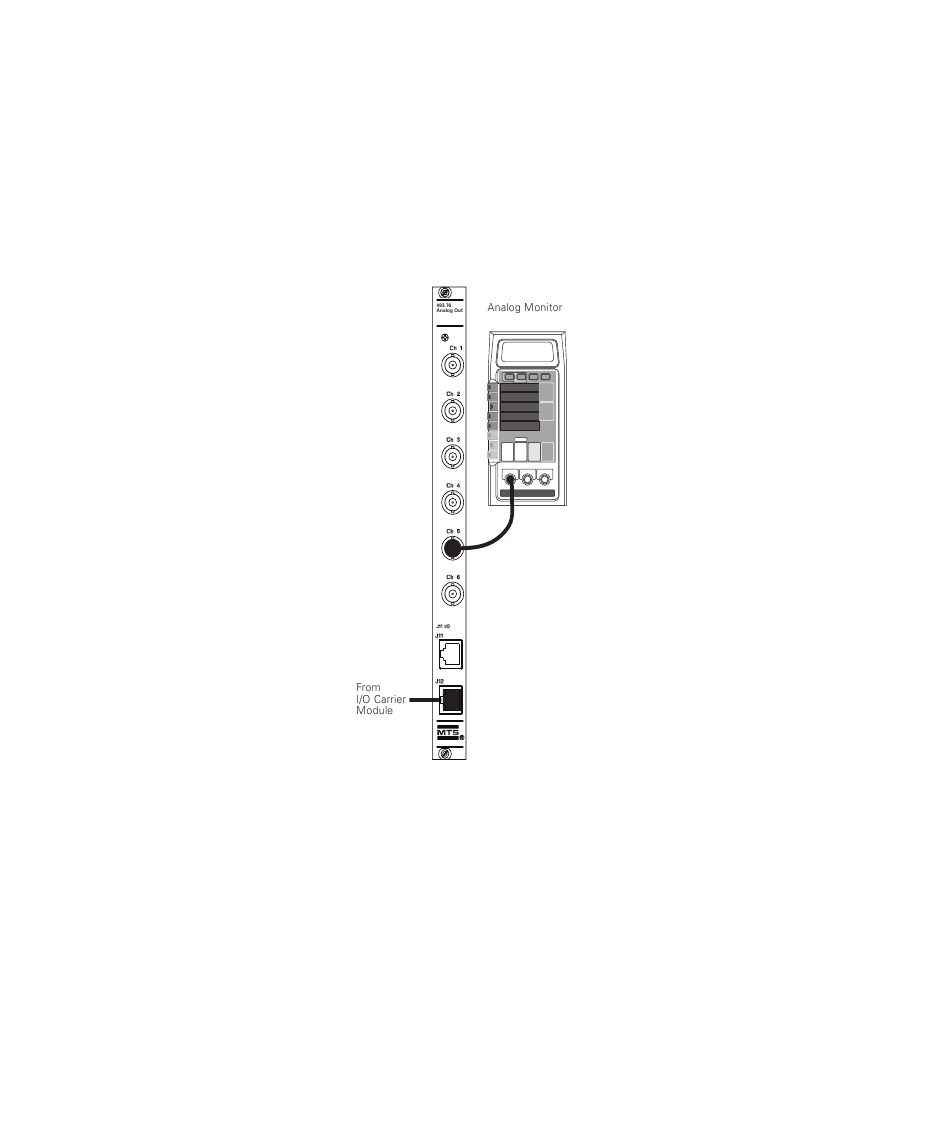

processor chassis. Connect an external readout device analog
input to a BNC connector on a Model 493.76 Analog Out module.
2. Create a readout channel with Station Builder.
3. Adjust the readout signal in Station Manager.
Use Station Manager to adjust the readout signal.
