Analog inputs

493.77 filter modules

104
FlexTest GT Controller Connections
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

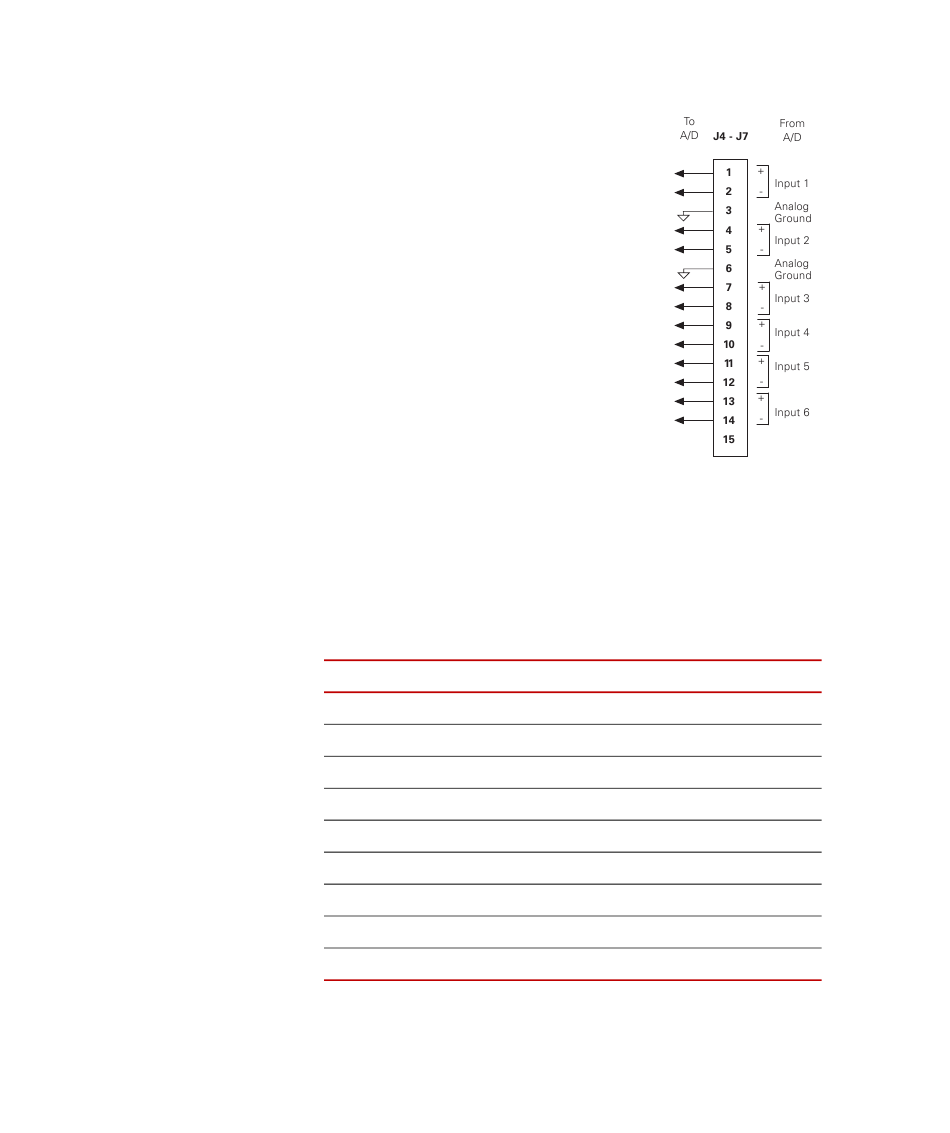

The analog-to-digital mezzanine cards
accommodate up to six analog input
signals. Each A/D input signal must be
within ±10 volts.
• Use pin 3 or 6 to prevent problems
with floating grounds between devices.
• Analog inputs can be connected at the
BNC connectors of a Model 493.75
Analog In transition module and the
outputs from this module are
connected to the Model 493.40 I/O
Carrier module.
• Analog inputs can be connected at the
BNC connectors of a Model 493.77
Filtered Analog Input transition module
and the outputs from this module are
connected to the Model 493.40 I/O
Carrier module.
The following filter modules are available for board mounting at the
BNC connectors of a Model 493.77 Filtered Analog Input transition
module:

Filter Module Specifications

A N
SSEMBLY UMBER
047-774-401 50
047-774-402 100
047-774-403 200
047-774-404 500
047-774-405 1000
047-774-406 2000
047-774-407 5000
047-774-408 120
047-774-409 300
HZ T
YPE
Bessel
Bessel
Bessel
Bessel
Bessel
Bessel
Bessel
Bessel
Bessel
MTS 793 Controller Hardware
