Installing the 493.02 Chassis (FlexTest SE)
AC power disconnect
54
Installation
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
• The power supply automatically selects the proper voltage range
and line frequency.
• The power supply is protected with an external circuit breaker in
the On/Off switch that trips at a 5 amp overload. An internal fuse
in the power supply is not user accessible or repairable.
Turn off the AC power switch. Remove the AC power cord from the
unit. This will remove all AC power from the 493.02 chassis.
Note Be sure to locate the chassis so you have adequate access to
disconnect the power cord from the chassis.

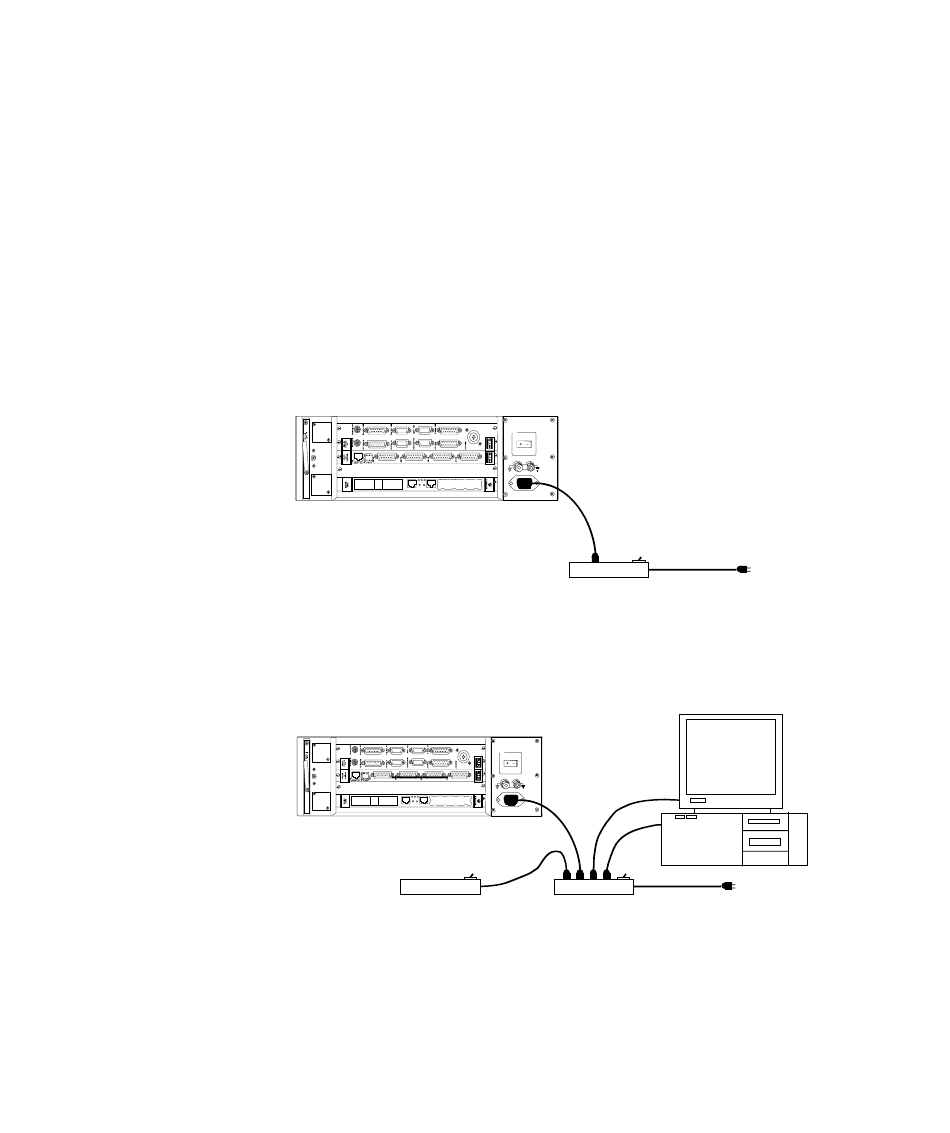

Stand-Alone Configuration

RU N 6TS BFL
ABT RST
TYPE E PC- MIP DEBUG
TYPE E PC-MIP P CI MEZZANNE CARD

Automated Configuration

RUN 6T S BFL
ABT RST
TYPE E PC-MIP DEBUG
T YPE E PC-MI P PCI MEZZANNE CAR D
Outlet Strip
(printer, etc)
Power
100–240 VAC
50–60 Hz, 12–6A
Outlet Strip
w/ circuit breaker
Power
100–240 VAC
50–60 H z, 1 2–6A
Outlet Strip
w/ circuit breaker
MTS 793 Controller Hardware
Line
Voltage
Line
Voltage
