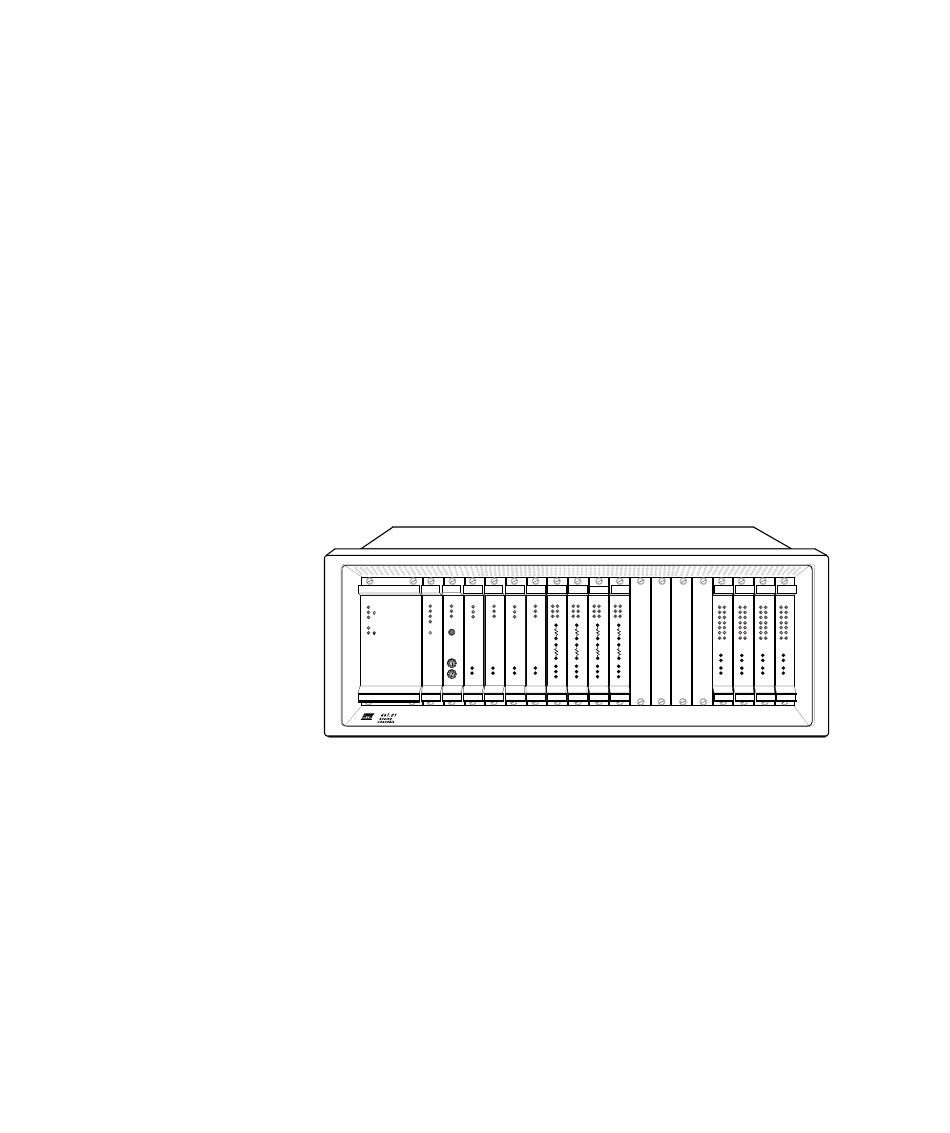

Model 497.01 Analog Chassis
Analog
Chassis
(Front Panel)
MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
The plug-in modules installed in the 497.01 Analog Chassis provide
four main functions:
• Interlock control—An interlock control plug-in module provides
programmable interlock signal mapping between the test
processor and the modules installed in this analog chassis.
• Processor/Analog Chassis communications—A communications
module provides data conversion between the test processor and
the 497 analog plug-in modules.
• Transducer conditioning—AC and DC conditioners provide
transducer excitation and output signal amplification for both low-
level and high-level transducers.
• Valve drive signals—Valve drivers provide drive current for two-
and three-stage servovalves according to command inputs
received for each channel.
497.34 497.35 497.14 497.14
Station Cntrl RS422 Com AC Cond AC Cond
Station
Interlocks
1 Fault
+15V U Lim U Lim
2
Xmit L Lim LLim
3
Excit Excit
-15V Ready
Fail Fail
4
-5V Reset
Power OK
x10
Out Out
Gnd Gnd
x1
This chassis shows the maximum complement of modules for a standard
FTIIm system. Customized systems can use all the module locations.
Note This chassis has rear panel transition modules and I/O connectors
to support up to four independent test stations.
FlexTest IIm Controllers
497.14 497.14 497.22 497.22
497.22 497.22
AC Cond AC Cond DC Cond DC Cond DC Cond DC Cond
Ch Ch Ch Ch Ch Ch Ch Ch
1 2 1 2 1 2 1 2
U Lim U Lim U Lim U Lim U Lim U Lim
L Lim L Lim L Lim L Lim
L Lim L Lim
Excit Excit Excit Excit
Excit Excit
Fail Fail Fail Fail Fail Fail
R-Cal R-Cal R-Cal R-Cal
1 1 1 1
R-Cal R-Cal R-Cal R-Cal
2 2 2 2
Out1 Out1 Out1 Out1
Out Out
Out2 Out2 Out2 Out2
Gnd Gnd
Gnd Gnd Gnd Gnd
497.26 497.26 497.26 497.26
Dual Valve Dual Valve Dual Valve Dual Valve
Ch Ch Ch Ch Ch Ch Ch Ch
1 2 1 2 1 2 1 2
Out 1 Out 1 Out 1 Out 1
Gnd Gnd Gnd Gnd
Out 2 Out 2 Out 2 Out 2
Gnd Gnd Gnd Gnd
Introduction 31
