Workstation Connection

Service Connection

MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

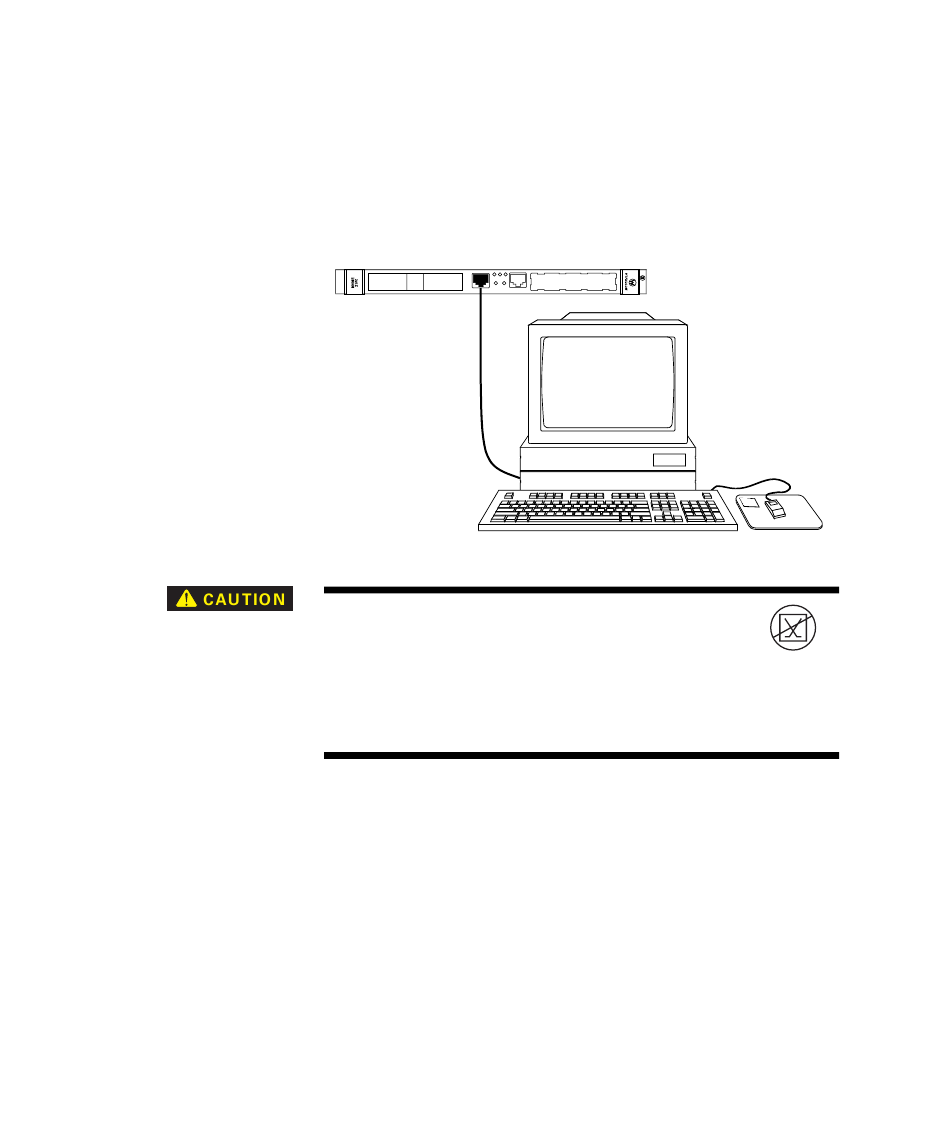

The workstation computer is connected to the processor module
installed in the VMEbus of the chassis. It is an Ethernet 10/100 Base-T
connection. The workstation computer must have an Ethernet
compatible connector.
RUN 6TS BFL
ABT RST
TYPE E PC-MIP
TYPE E PC-MIP
The symbol shown here indicates that you must not
connect telecommunications equipment to the
equipment showing this symbol.
Several modules have connectors that look similar to a phone connector.
Special cables are required. Installing telecommunications equipment cables
can cause equipment damage to the electrical components of the chassis or
to your telecommunications system.
See I/O Carrier service
DEBUG
PCI MEZZANNE CARD
134.
