Cabling for External Command Inputs
How to Enable and Run External Command Inputs
Task 1 Cable the controllers.
MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Cabled properly, your FlexTest controller can receive programming
from an external controller.
To enable an external command source, perform the following:
1. "Cable the controllers."
2. "Allocate external command resources in Station Builder."
194.
3. "Adjust the command signal with Station Manager."
4. "Start the External Command."
Cable the external programmer analog out connector to a 498 Input
Filter connector. Analog I/O connectors are located on the rear of the
test processor chassis.
Note If you cable the hardware before you create a station configuration
file, note the connector you use on the FlexTest IIm rear console.

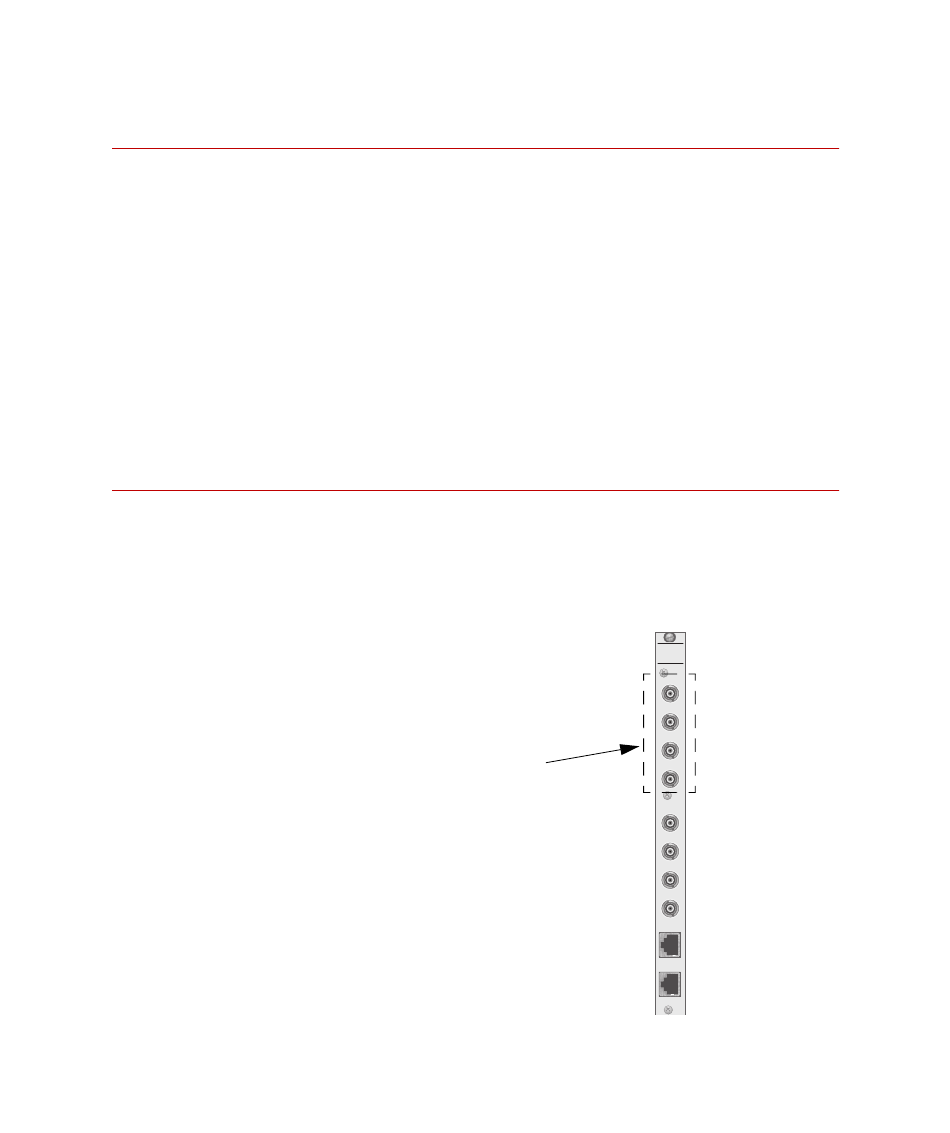

498 Input Filter
This module includes 8 BNC
connectors that provide filtered
analog inputs to the 498.65
ADDA module.
Four analog inputs are available
with the standard ADDA module.
The other four inputs require a
second ADDA module.
on page 193.
on page 194.
498
INPUT
FILTER
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
J11
(CH 1-4)
J12
(CH 5-8)
FlexTest IIm Controller Connections
on page
on page 194.
